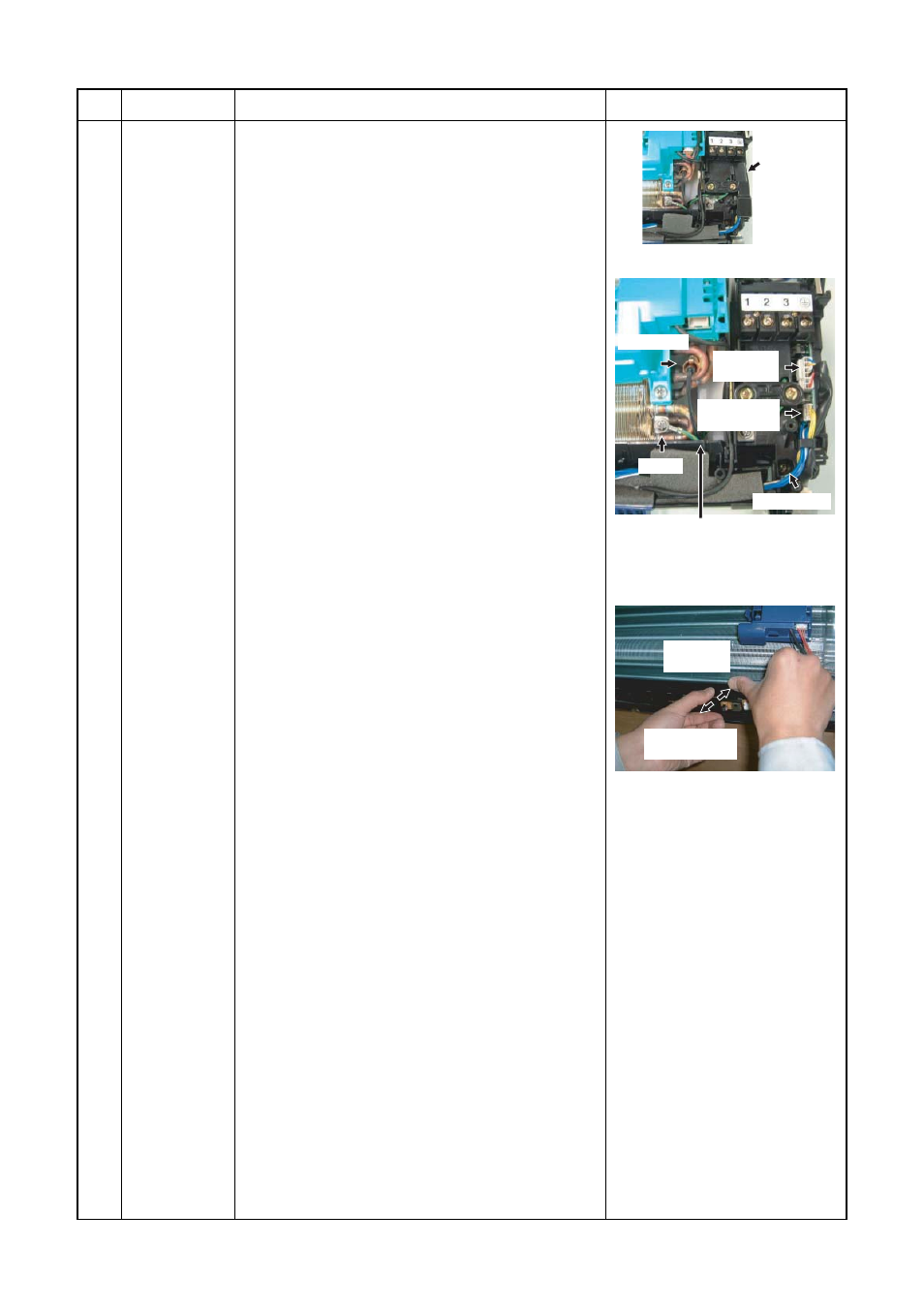

No. Remarks Procedures Part name
Electric parts
box assembly
#
1) Follow the procedure up to 4) in
"
above.
2) Remove screw of earth lead attached to the end
plate of the evaporator.
3) Remove the lead wire cover, and remove
connector (5P) for the fan motor and connector
(5P) for the louver motor from the electric parts
box assembly.
4) Pull out TC sensor from sensor holder of the
evaporator.
1) Hook the top part of the electric parts box
assembly onto the claws on the back body, and
secure it using the fixing screw. Now attach the
display unit. Connect the connectors for the fan
motor and louver motor.
2) Secure the grounding wire using the fixing screw.
Insert the TC sensor into the sensor holder.
* Be absolutely sure to loop the grounding wire
and TC sensor leads once at the bottom.
Lead wire
cover
Fixing screw
TC sensor
Louver moter
connector
Fan motor
connector
Screw
Make absolutely sure that
the leads form a loop
5) Disengage the two claws at the top of the
display unit. (They can be easily disengaged by
pressing the drain pan above the claws and at
the same time pulling the display unit toward
you.)
6) Remove the fixing screw that secures the
electric parts box assembly, and remove the
assembly.
Push the
drain pan
Pull the display
unit toward you
