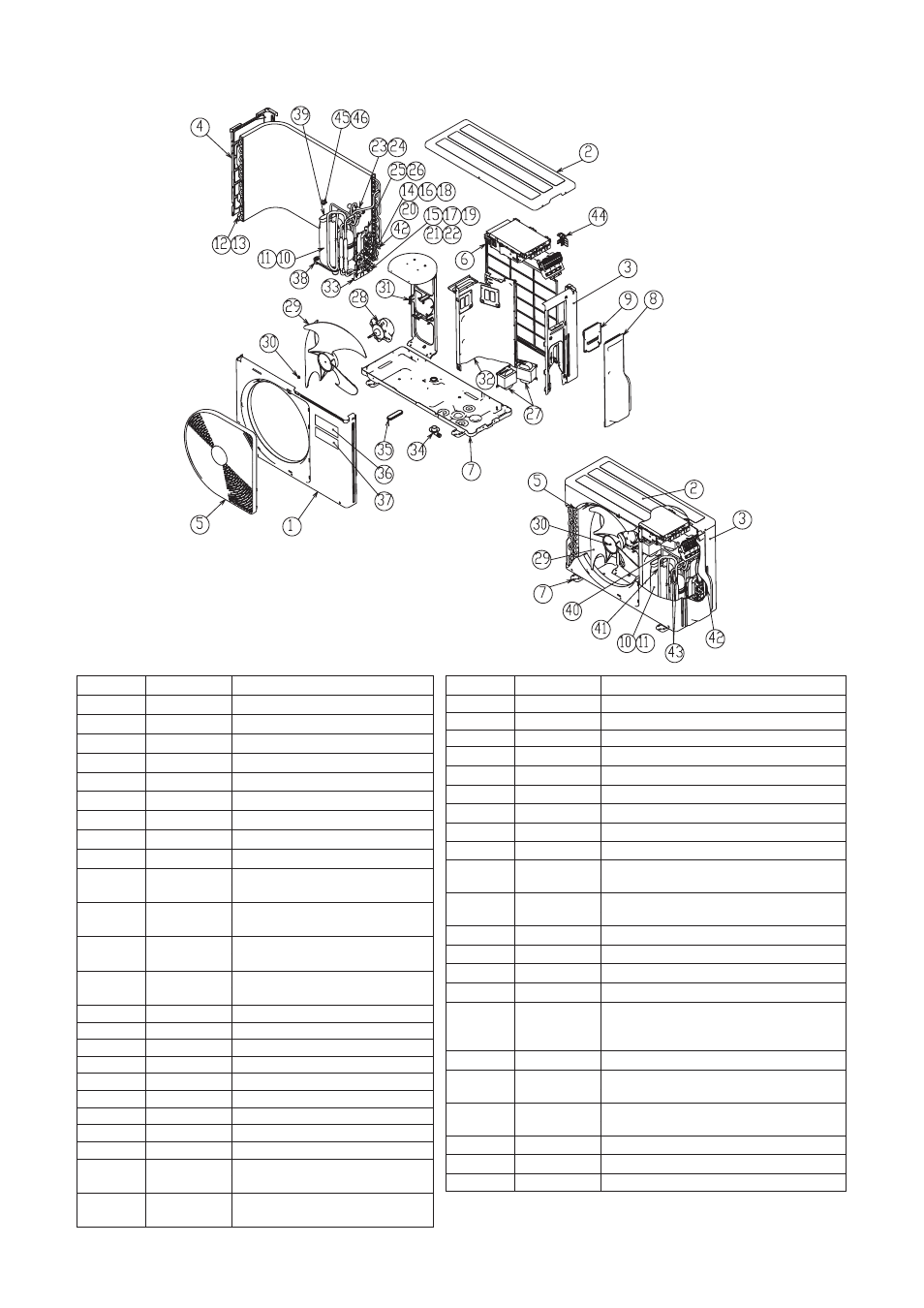

13-2. Outdoor Unit
Location No. Part No. Description
001 43005619 Cabinet, Front
002 43005616 Cabinet, Upper
003 43005617 Cabinet, Side, Right
004 43005569 Cabinet, Side, Left
005 4301V035 Guard, Fan
006 4301V053 Guard, Fin
007 43042483 Base Assy
008 43119471 Cover, Valve, Packed
009 43062230 Cover, Wiring, Assy
010 43041631 Compressor DA111A1F-20F1
(M14EAV-E , M14EACV-E)
011 43041629 Compressor DA130A1F-25F
(M18EAV-E , M18EACV-E)
012 4314G177 Condenser Assy
(M14EAV-E , M14EACV-E)
013 43043733 Condenser Assy
(M18EAV-E , M18EACV-E)
014 43046392 Valve, Packed, 6.35
015 43046391 Valve, Packed, 9.52
016 43147196 Bonnet, 1/4inch
017 43047401 Bonnet, 3/8inch
018 43047653 Nut, Flare, 6.35
019 43047654 Nut, Flare, 9.52
020 43047657 Cap, Valve, Packed, 6.35
021 43047658 Cap, Valve, Packed, 6.35
022 43047651 Cap, Charge, Port
023 43046439 Valve, 4way, STF-0108Z
(M14EAV-E , M18EAV-E)
Location No. Part No. Description
025 43046429 Valve, PMV, CAM-B22YGTF-2
026 43046411 Coil, PMV, CAM-MD12TF-1
027 43058270 Reactor
028 4302C048 Motor, Fan, ICF-140-43-4
029 43020329 Fan, Propeller, PJ421
030 43047667 Nut, Flange
031 43039387 Base, Motor
032 43104184 Plate, Partition
033 43004230 Plate, Fix, Valve, Packed
034 43032441 Nipple, Drain
(M14EAV-E , M18EAV-E)
035 43089160 Cap, Waterproof
(M14EAV-E , M18EAV-E)
036 4301P703 Mark, Toshiba
037 4301P729 Mark, Inverter
038 43049749 Rubber, Cushion
039 43062176 Sleeve, Flag
040 43063321 Holder, Sensor,
φ
4, 8-9.52
(Heat pump models: TD, TGa, TGb)
(Cooling-only models: TD)
041 43063322 Holder, Sensor,
φ6
, 11.4-12.7 (TS)
042 43063325 Holder, Sensor,
φ
6, 6.35-8
(Heat pump models: TE)
043 43063320 Holder, Sensor, φ 6, 8-9.52
(Cooling-only models: TGa, TGb)
044 43063339 Holder, Sensor, (TO)
045 43050407 Thermostat, Bimetal
046 43063317 Holder, Thermostat
024 43046348 Coil, Solenoid
(M14EAV-E , M18EAV-E)
