– 111 –

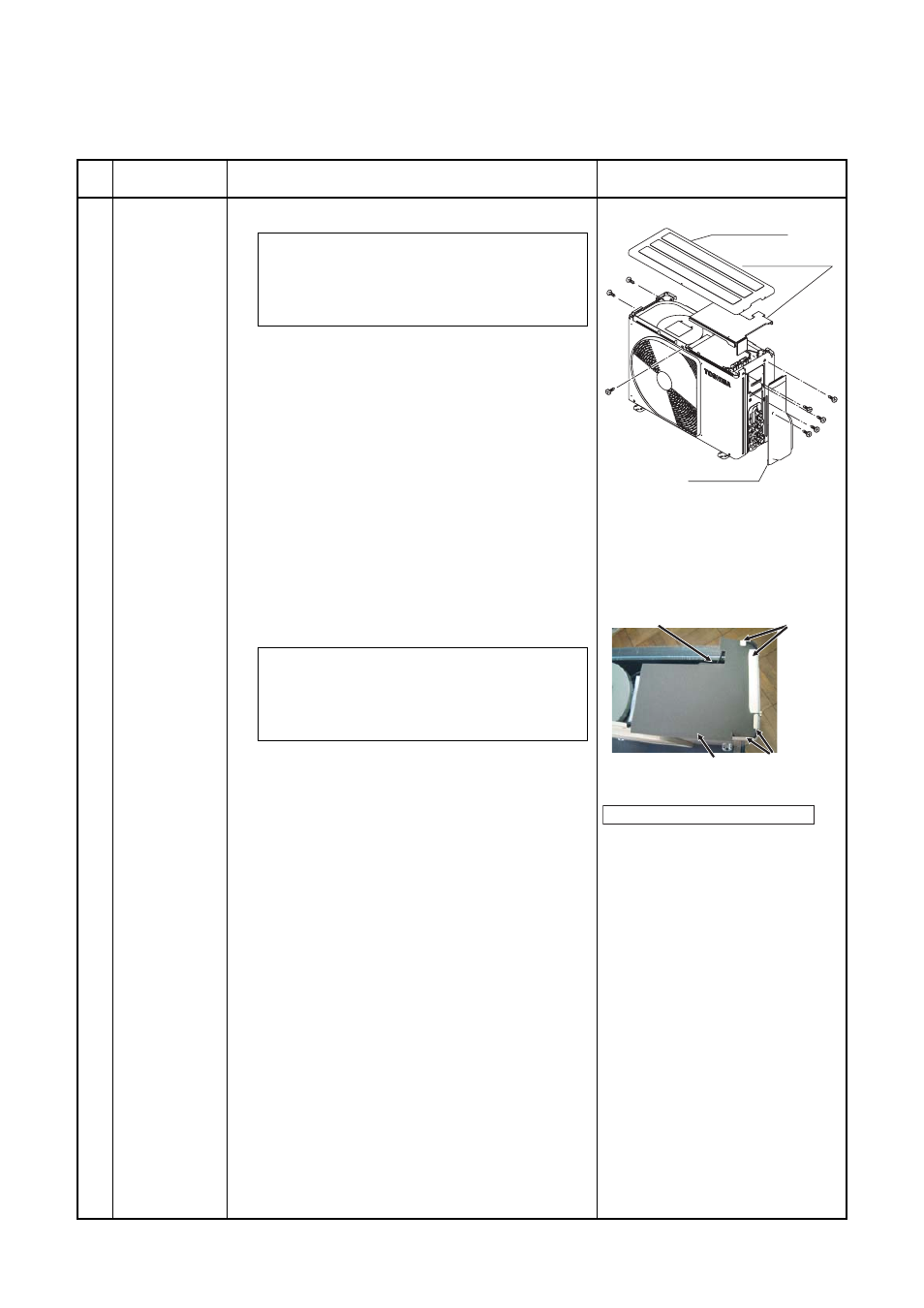

Upper cabinet
Water proof cover
Valve cover
12-3. Outdoor Unit
1. Detachment
NOTE :
Wear gloves for this job.
Otherwise, you may injure your hands on
the parts, etc.
1) Stop operation of the air conditioner, and turn off
the main switch of the breaker for air condi-
tioner.
2) Remove the valve cover. (ST1TØ4 x 8 lllll 1 pc.)
• After removing screw, remove the valve cover
pulling it downward.
3) Remove wiring cover (ST1TØ4 x 8 lllll 2 pcs.), and
then remove connecting cable.
4) Remove the upper cabinet.
(ST1TØ4 x 8 lllll 5 pcs.)
• After removing screws, remove the upper
cabinet pulling it upward.
2. Attachment
1) Attach the water-proof cover.
NOTE :
The water-proof cover must be attached
without fail in order to prevent rain water,
etc. from entering inside the indoor unit.
2) Attach the upper cabinet.
(ST1TØ4 x 8 lllll 5 pcs.)
3) Perform cabling of connecting cable, and attach
the wiring cover.
• Place the wiring cover over the opening used
to work on the connecting wires of the side
cabinet, and secure it using the two fixing
screws (ST1TØ4 x 8
lllll 2 pcs.). At this point,
the top cushion of the wiring cover must be on
the inside of the opening.
4) Attach the valve cover. (ST1TØ4 x 8 lllll 1 pc.)
• Insert the upper part into the square hole of
the side cabinet, set hook claw of the valve
cover to square holes (at three positions) of
the main unit, and attach it pushing upward.
Common
procedure
!
No. Remarks Procedures Part name
Insert the bent part into the rear
panel of the inverter
How to mount the water-proof cover
Align the stitch
line with the top
edge of the
front cabinet Bend downward,
and align with
the inside surface of
the front cabinet
Bring into
contact
against
these parts
