Item
16. Clean
operation
release
J04
Operation flow and applicable data, etc.
Setting the clean operation release
Add J04 of the indoor P.C. board
assembly.
* This cancels the auto restart function.
Hold down the auto operation switch on
the indoor unit for at least 3 seconds but
not more than 10 seconds.
The indoor unit’s buzzer emits three
beeps, and the OPERATION indicator
flashes at 5 Hz intervals.
This completes the clean operation
release setting.
* J04 will be near the
MUC so take steps to
ensure that it will not be
exposed to excessive
levels of heat. Also
take care to avoid
solder bridging with the
surrounding
components.
Setting the clean operation
Cut J04 of the indoor P.C. board
* This step may be skipped if the auto
restart function is not required.
Hold down the auto operation switch on
the indoor unit for at least 3 seconds but
not more than 10 seconds.
The indoor unit’s buzzer emits three
beeps, and the OPERATION indicator
flashes at 5 Hz intervals.
This completes the clean operation
setting.

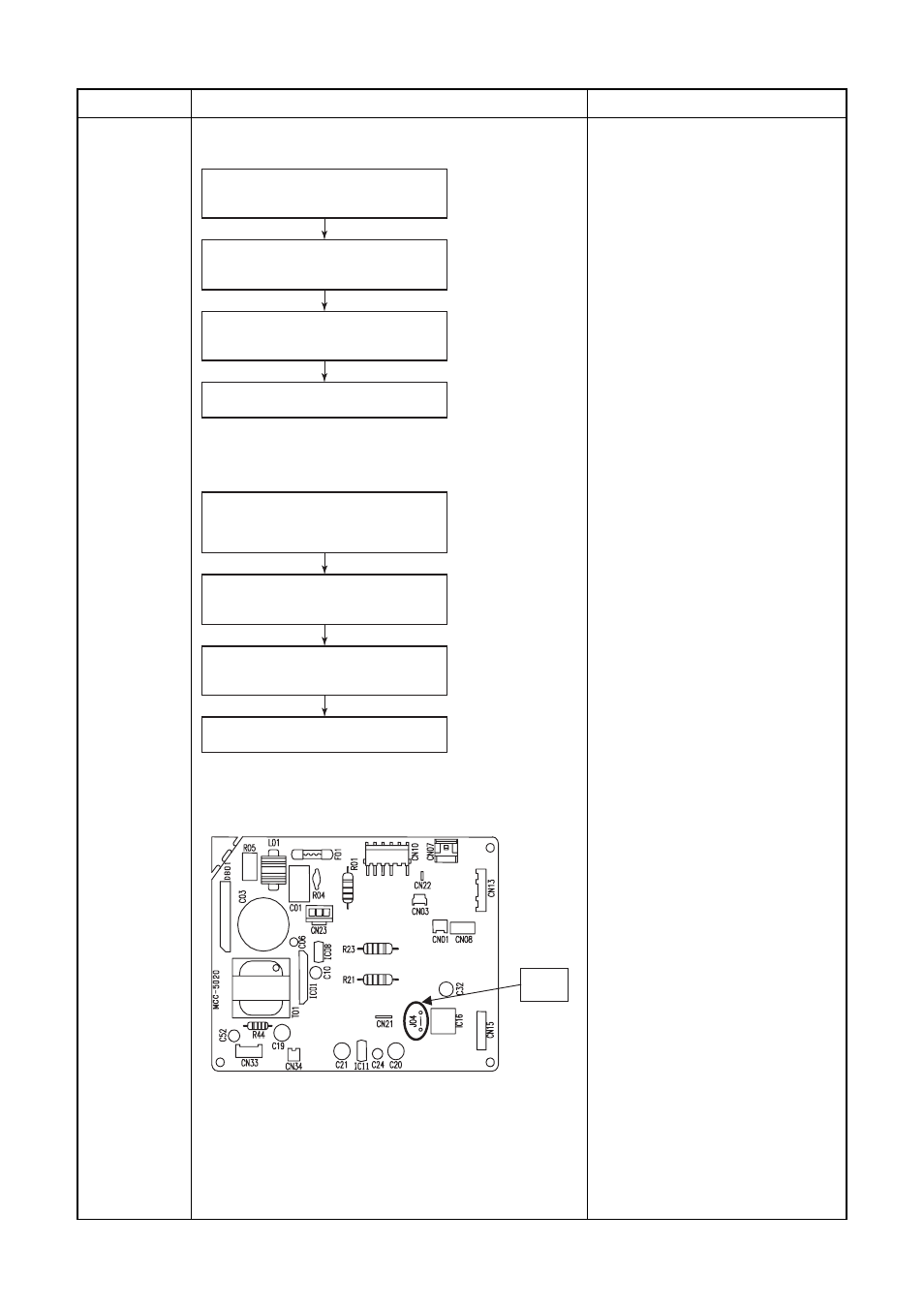

Outline diagram of P.C. board
Description
