Before You Play
Making Connections
The DR-3 is not equipped with an internal amp or speakers. To
hear sound, either connect an amplifier and speakers or use stereo
headphones.
Audio cables, MIDI cables, Stereo headphones, and foot switches
are not included. Please purchase these items from your dealer.
1
Before you begin making connections, confirm the
following.
• Is the volume level of the DR-3 or connected amp turned all the
way down?
• Is the power to the DR-3 or connected amp turned off?
fig.00-03
2

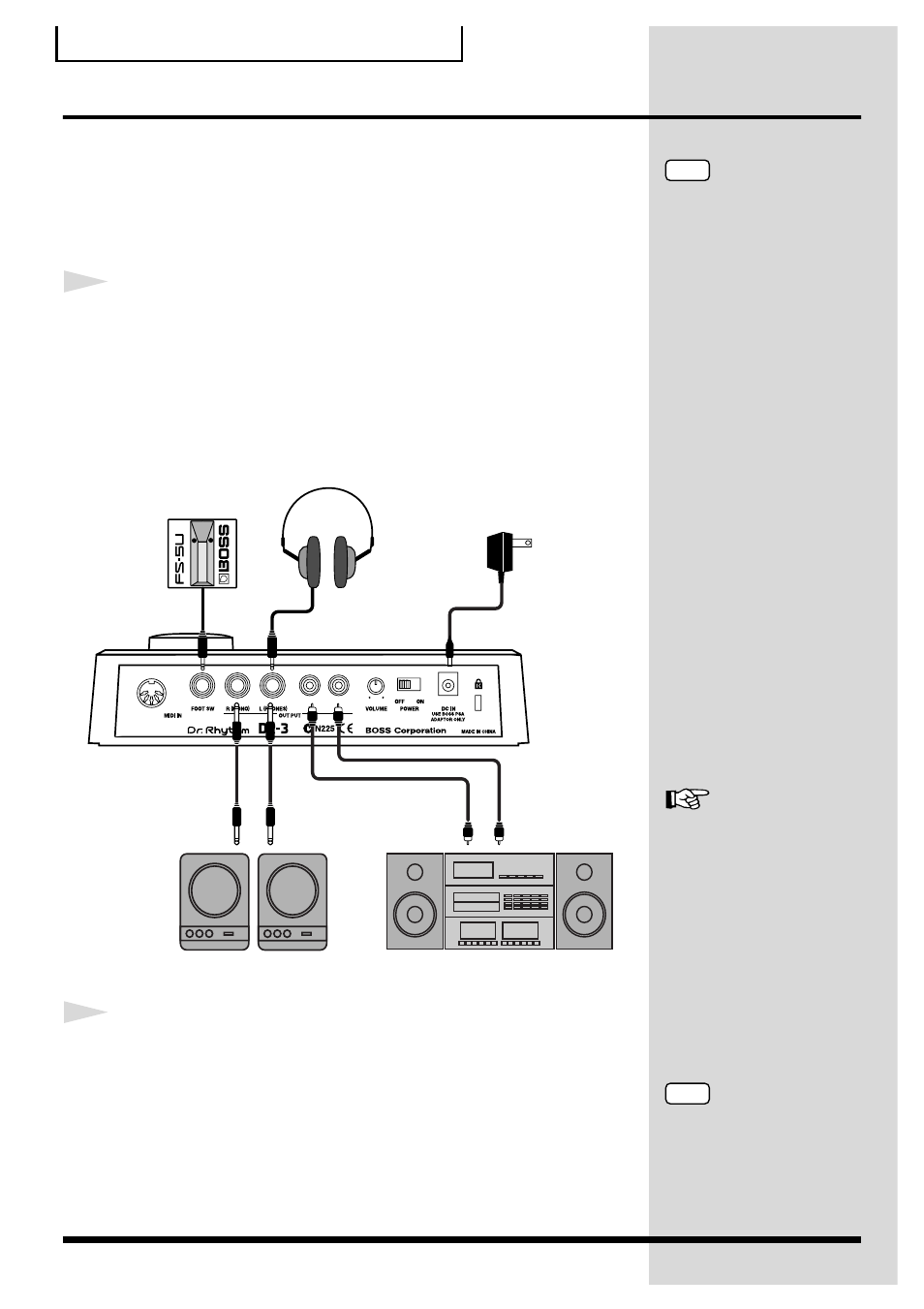

Connect the amp and audio gear, or the headphones
as shown in the diagram.
In order to take full advantage of the DR-3’s sound we
recommend that you play it in stereo.
When using the system in mono, connect to the OUTPUT R
(MONO) jack.
NOTE
To prevent malfunction and/
or damage to speakers or other
devices, always turn down the
volume, and turn off the
power on all devices before
making any connections with
the DR-3.
Stereo Headphones
Foot Switch
AC Adoptor
(PSA-series: option)
Monitor Speaker
Audio Set
For instructions on connecting
to the MIDI connectors, refer
to p. 93.
For instructions on
connecting to the FOOT
SW jack, refer to
.
NOTE
You cannot get monaural
output while simultaneously
using the headphones.
