Step procedure (continued) – Paradyne BitStorm IP DSLAM 1900 User Manual
Page 77
2. BitStorm 1900 Installation and Testing
1900-A2-GN20-00
BitStorm 1900 Installation and Maintenance Guide
2-61
Step
Procedure
(continued)

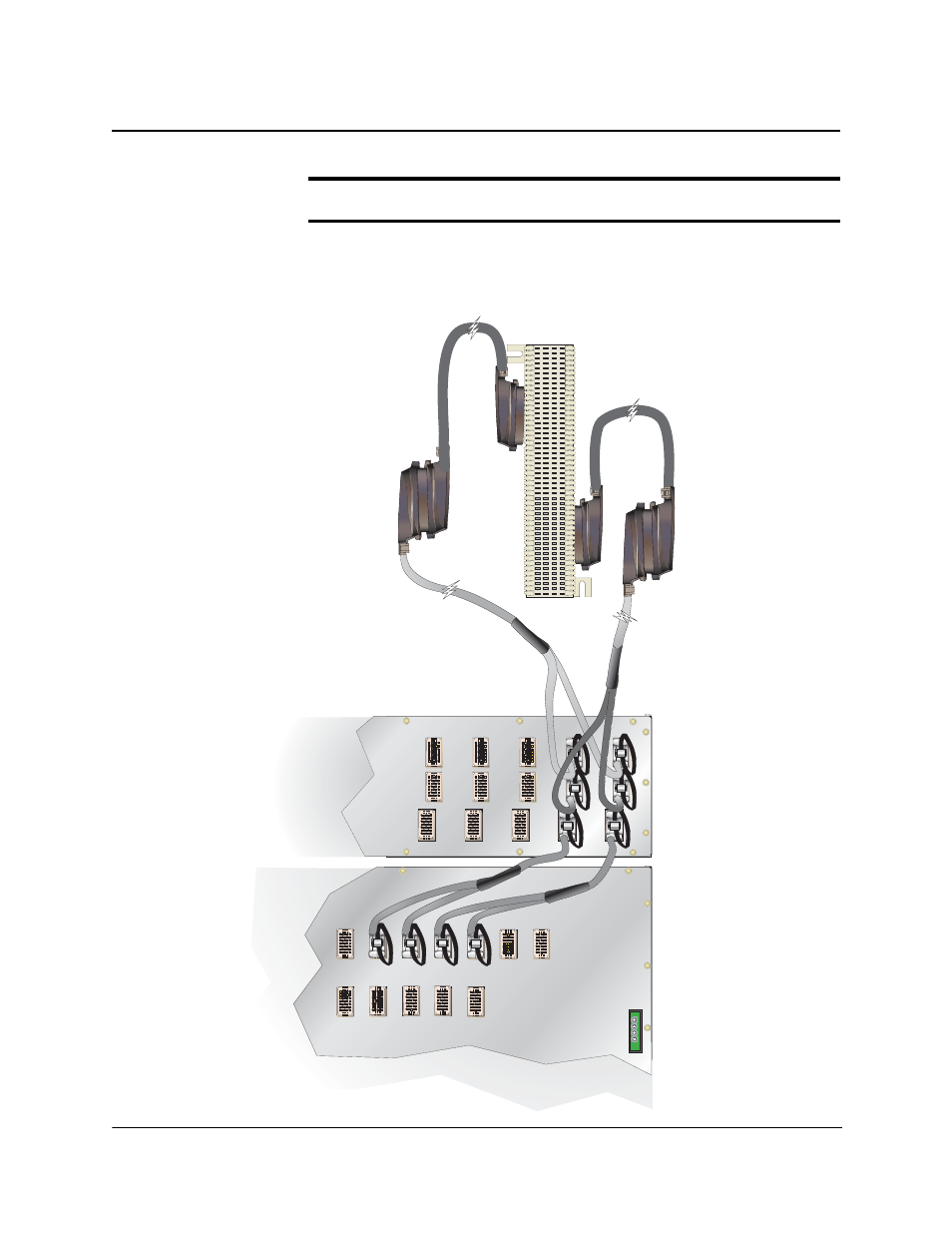

Figure 2-12: Line/CPE and Voice Connections on the Filter Shelf for 10306 Modem Cards
Interconnect
Cable #1 IN
*Not Used
Dial Tone IN
from PBX/PSTN
EtherLoop
from BitStorm shelf
Dial Tone &
EtherLoop OUT
Interconnect
Cable #1 OUT
Amp Champ to
Dual Omni Grid Cable
part # 04-00007-10
Omni Grid to
Dual Omni Grid
Cable part #
04-00028-01
J1
J2
J1
J2
J1
J1
J2
J2
J3
J3
02-17184
