Page 137
Appendix B. Cabling Specifications
1900-A2-GN20-00
BitStorm 1900 Installation and Maintenance Guide
B-121
AMP-Champ to Dual AMP Champ Cable
The AMP Champ to Dual AMP Champ cable connects from the Filter
66-Block to an AMP Champ Omni Grid cable, which connects to the
10306 cards. Refer to Figure B-6 (shown below) and to Table B-1,
“AMP-Champ to Dual AMP-Champ Cable Specifications,” on
page 122 for cable specifications.

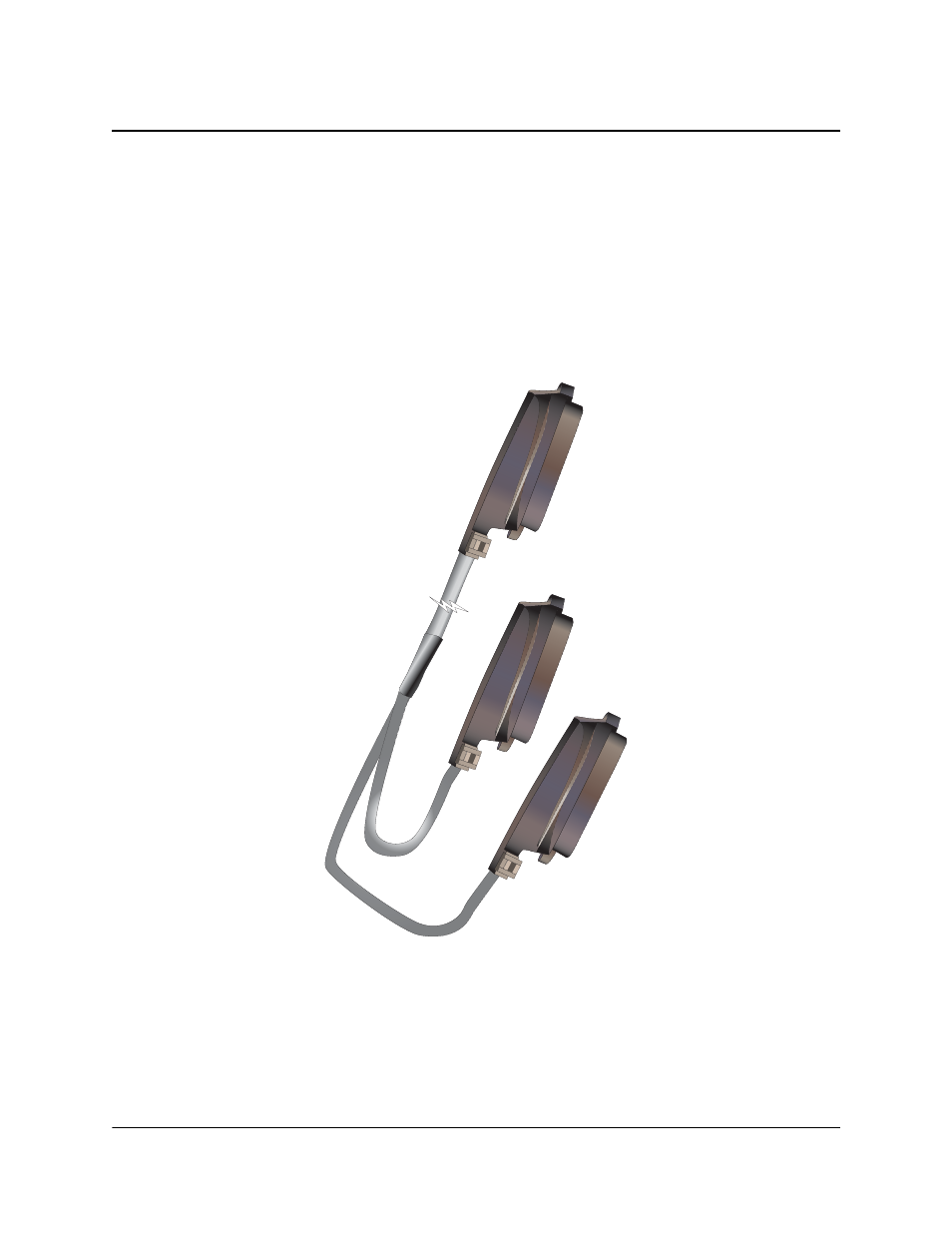

Figure B-6: AMP Champ to Dual AMP Champ Cable (Part #: 04-00029-01)
02-17200
