1. BitStorm 1900 IP DSLAM
1-12 BitStorm 1900 Installation and Maintenance Guide 1900-A2-GN20-00

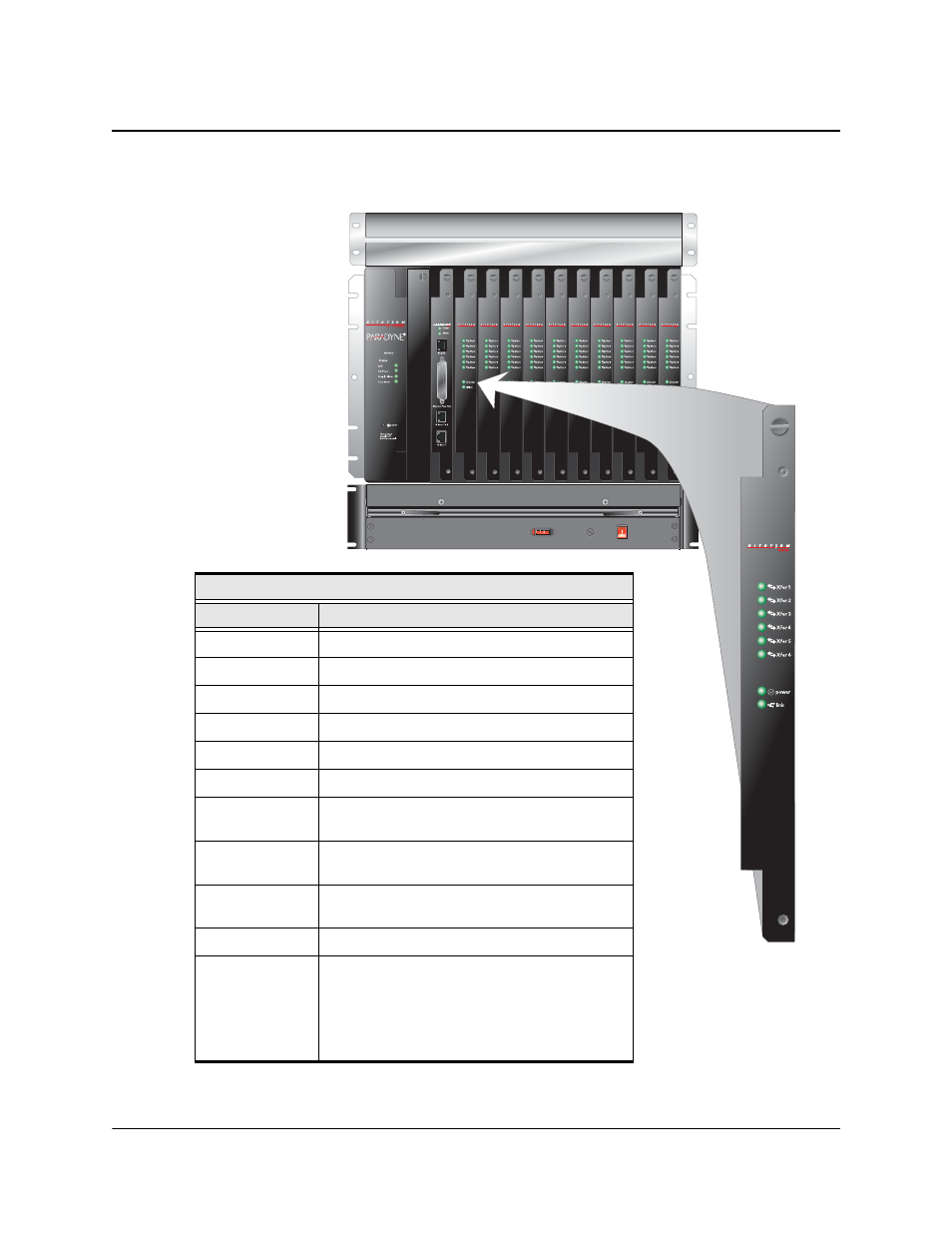

Figure 1-2: BitStorm 1900 with 10306 Modem Cards (Part #: 01-00153-01)
02-17163
10306 CO Modem Specifications
Description Specification
Shelf Interface 100Base-T Ethernet Bus
WAN Interface MIU
Line Interface 35-pin Omni Grid connector
Heat Dissipation 22 watts
LEDs Power, Link, Data Transfer (6 lights)
Card Dimensions 12” H (7RU) x 11”D
Operation
Temperature
5
o
C to 40
o
C (41
o
F to 104
o
F)
Short-term Operat-
ing Temperature:
-5
o
C to 50
o
C (23
o
F to 122
o
F)
Certifications FCC Part 15, Subpart B, Class A, UL 60950, cUL,
NEBS Level 3, CE, TNV-3, ETSI ETS 300 386-2
Power Supply 260 W DC or 260 W AC
Fan Tray Mandatory, use -48 V DC with 260 W DC power
supply; use 110 V AC with 260 W AC power supply
• An AC fan tray air filter frame must be installed
without an air filter for AC configurations
• A DC fan tray with an air filter installed is required
for NEBs compliant DC configurations
