1. BitStorm 1900 IP DSLAM
1-2 BitStorm 1900 Installation and Maintenance Guide 1900-A2-GN20-00

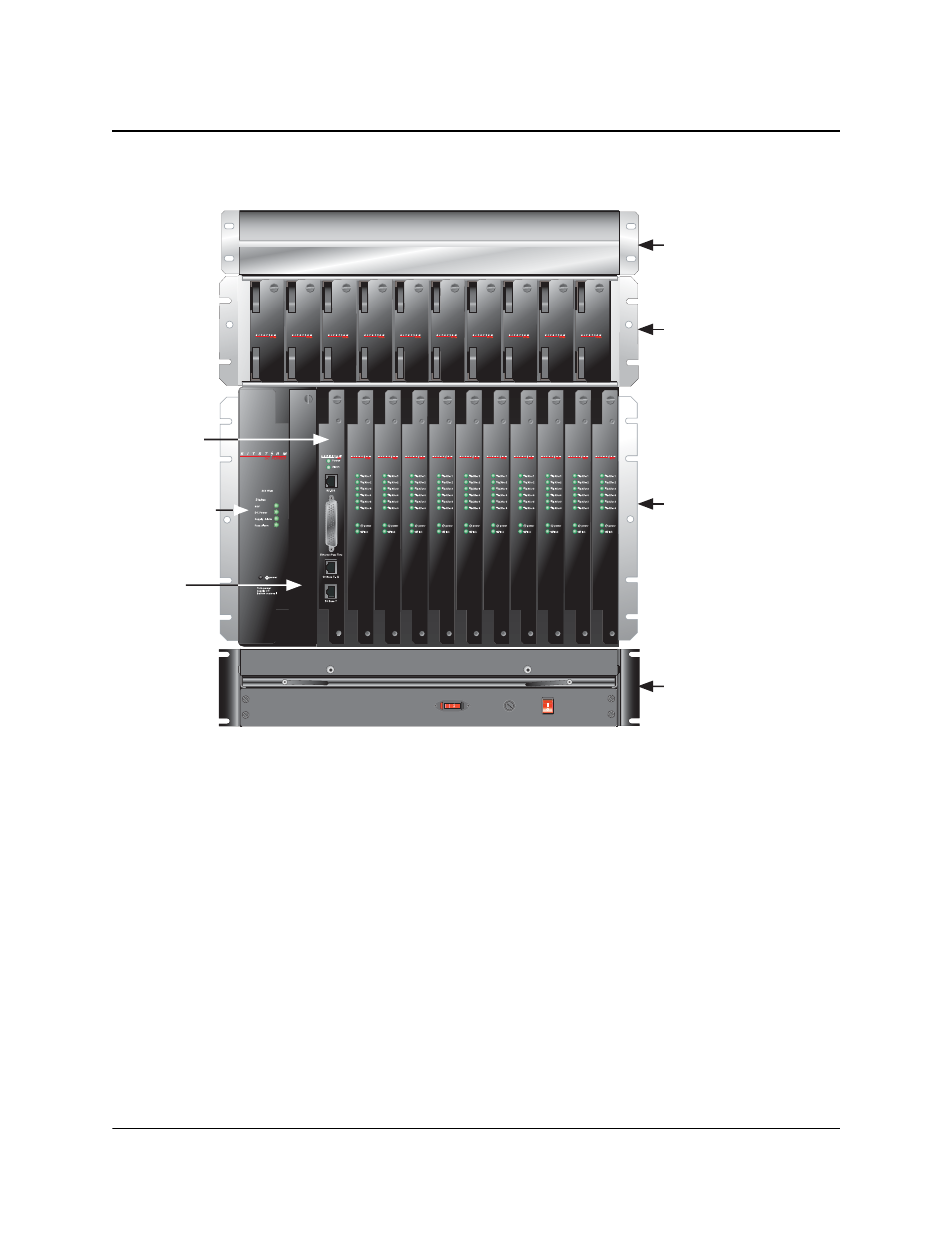

Figure 1-1: BitStorm 1900 Shelf with Cards and Components
BitStorm 1900 Shelf
The BitStorm 1900 Shelf supports 60 to 240 EtherLoop lines. Each
BS1900 Shelf contains 13 card slots housing the following circuit
packs:
• Ten (10) BitStorm Multiplexer Modem Cards
• Management Interface Unit (MIU)
• Power Card
• Blank Filler Card*
* The blank filler card is used to keep the air flowing properly through the
unit.
MIU Card
Power Card
Blank
Filler Card
Air Baffle
3.5" x 18" x 13"
2 RU
Filter Shelf
5.25" x 17.5" x 11.75"
3 RU
BS 1900 Shelf
12.1875" x 17.5" x 12"
7 RU
Fan Tray
3.5" x 18" x 13"
02-17160
