1. BitStorm 1900 IP DSLAM
1900-A2-GN20-00 BitStorm 1900 Installation and Maintenance Guide 1-17

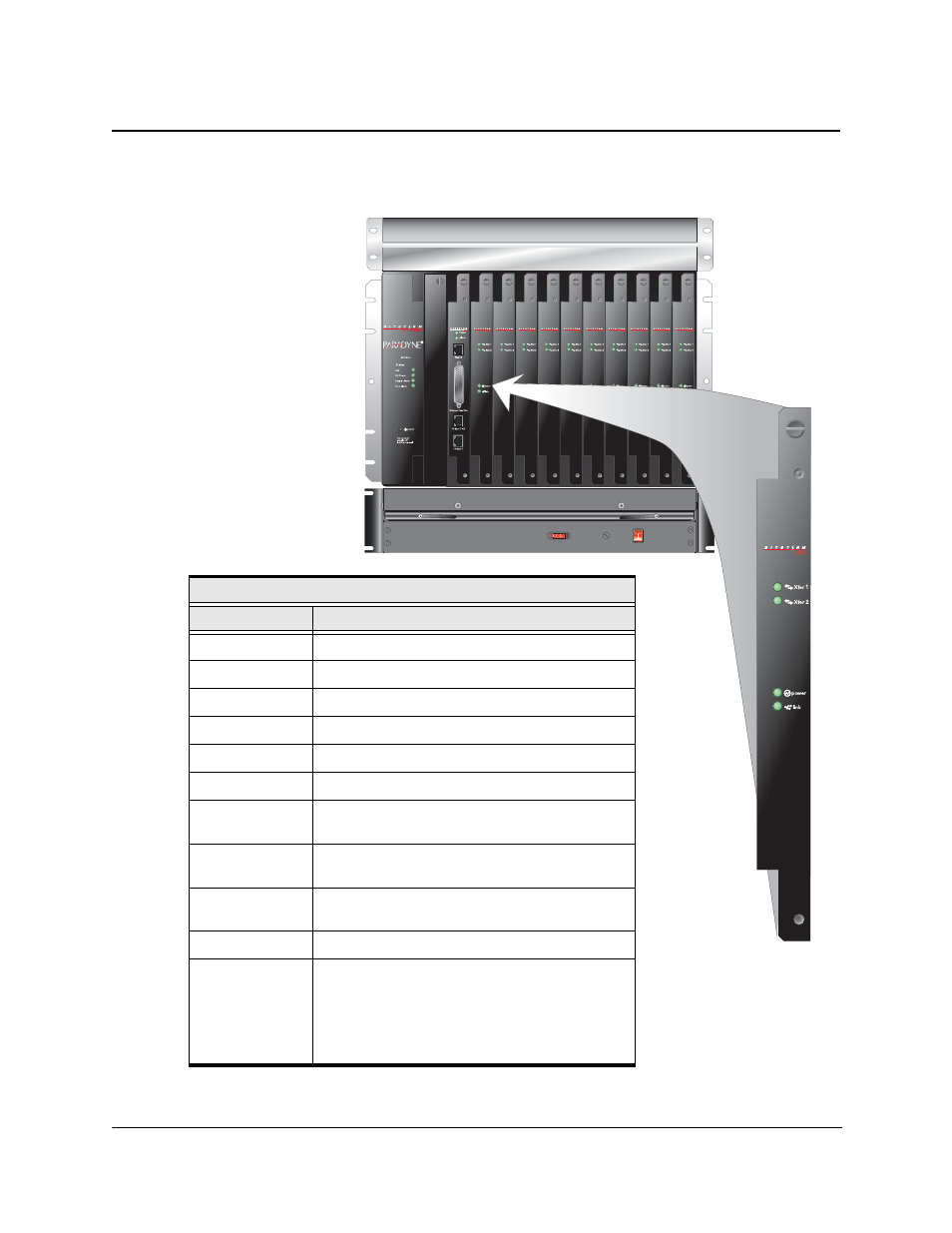

Figure 1-4: BitStorm 1900 with 10224 Modem Cards (Part #: 01-00164-01)
02-17165
10224 CO Modem Specifications
Description Specification
Shelf Interface 100Base-T Ethernet Bus
WAN Interface MIU
Line Interface Dual 35-pin Omni Grid connector
Heat Dissipation 12 watts
LEDs Power, Link, Data Transfer (2 lights)
Card Dimensions 12” H (7RU) x 11”D
Operation
Temperature
5
o
C to 40
o
C (41
o
F to 104
o
F)
Short-term Operat-
ing Temperature:
-5
o
C to 50
o
C (23
o
F to 122
o
F)
Certifications FCC Part 15 Class A, UL 60950, cUL, CE,
ETSI ETS 300 386-2, TNV-3
Power Supply 260 W DC or 260 W AC
Fan Tray Mandatory, use -48 V DC with 260 W DC power
supply; use 110 V AC with 260 W AC power supply
• An AC fan tray air filter frame must be installed
without an air filter for AC configurations
• A DC fan tray with an air filter installed is required for
DC configurations
