1. BitStorm 1900 IP DSLAM
1-4 BitStorm 1900 Installation and Maintenance Guide 1900-A2-GN20-00
The following table provides information on some common
configurations and the number of Filter Shelves required for each
installation.

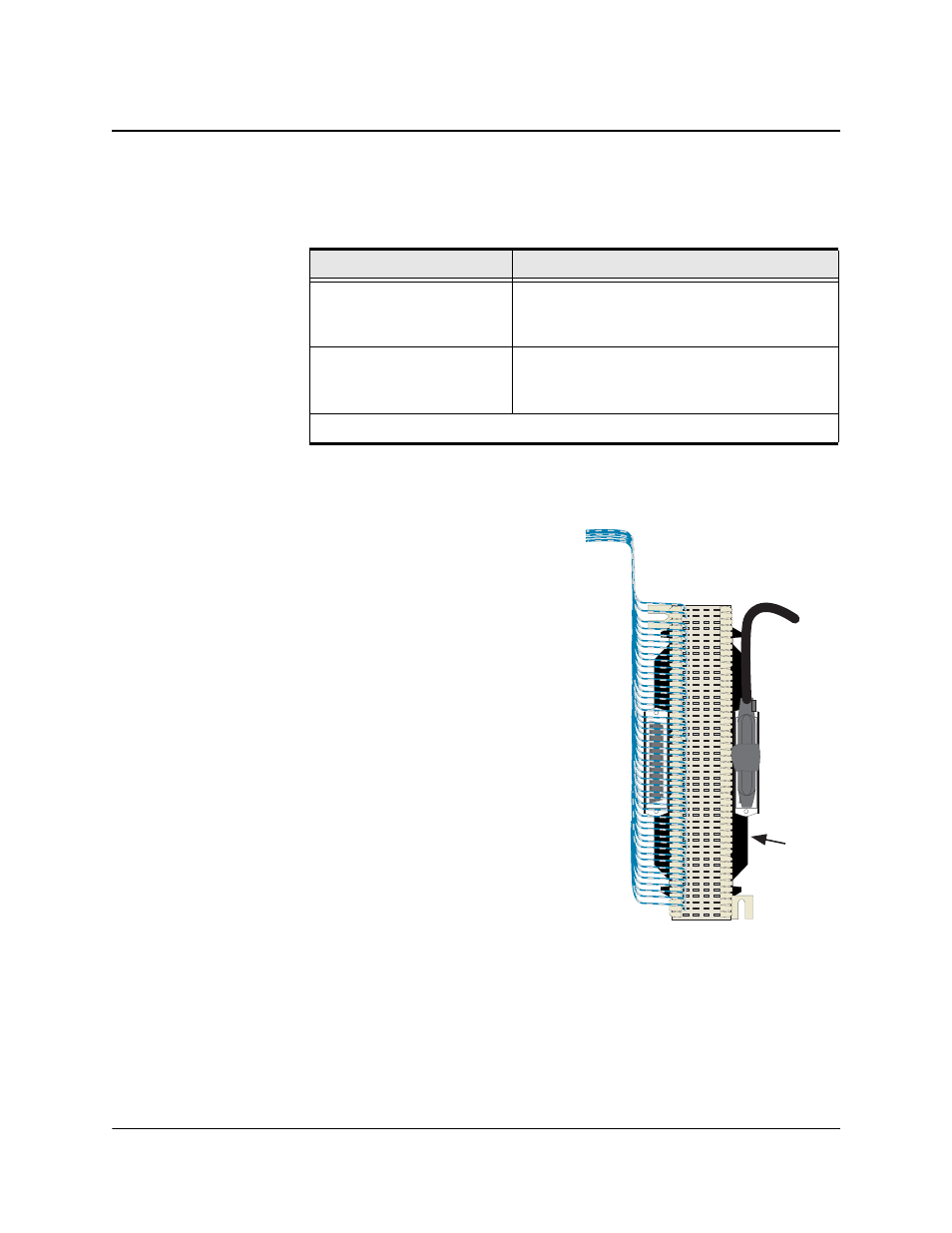

Filter 66-Block Option
The Filter 66-Block provides the
same POTS splitter function as the
Filter Shelf; however, it is a space
saving and economical alternative
to the Filter Shelf. Using the
lastest technology from Excelsus
Technologies, the Filter 66-Block
integrates a 66-Block with a PCB
(Printed Circuit Board) Filter,
eliminating the need for a Filter
Shelf, saving rack space and
reducing the number of cables
necessary for the installation. Each
Filter 66-Block can filter up to
24 lines.
Configuration Number of Filter Shelves
Ten 10224 CO Modem Cards
(each 10224 card supports
24 lines)
2 Filter Shelves
(one 10224 card requires two filter cards)
Ten 10306 CO Modem Cards
(each 10306 card supports
6 lines)
1/2 Filter Shelf or 5 filter cards
(two 10306 cards require one filter card)
Each Filter Shelf can filter up to 120 lines and requires 3RU of rack space.
Integrated
PCB
Filter
Filter 66-Block
02-17161
