SuperTrak66™ User's Manual Chapter 5
- 81 -
4) The new array icon will be created in the Tree View, titled with the text entered
into the “Name” field.
5) Drag and drop any unassigned drive icon within the Tree View area on top of
the array icon which you have just created in order to add the drive to the array
(unassigned drive icons do not have a red arrow in the upper left corner). Hard
drive(s) will then be assigned to the array in the order that they are dragged on
to the array icon.
6) If you have incorrectly selected a disk for this array, highlight that disk in Tree
View, right-click mouse, and select Delete. The disk will be removed from this
array.
7) Repeat step 5 until the array is completed.
8) Press the “Commit” button and reboot the Operating System to establish the
new array.
Reading/Clearing Events from SuperTrak Memory Buffer
SuperCheck allows the user to read alarm/maintenance events maintained by
SuperTrak66's onboard memory log, print a listing of these events, save the log to a
file, or clear all events from memory. Clearing events should be performed on a
periodic basis in order to reduce the length and size of the event buffer log.
1) To read events from the log, make sure the IOPx icon of the correct
SuperTrak66 controller card in Tree View is highlighted.
2) Left-click "Read Events" or "Clear Event" or use pull-down menu at top.
3) Clicking "Read Events" will enable the Event Viewer screen (see figure below)

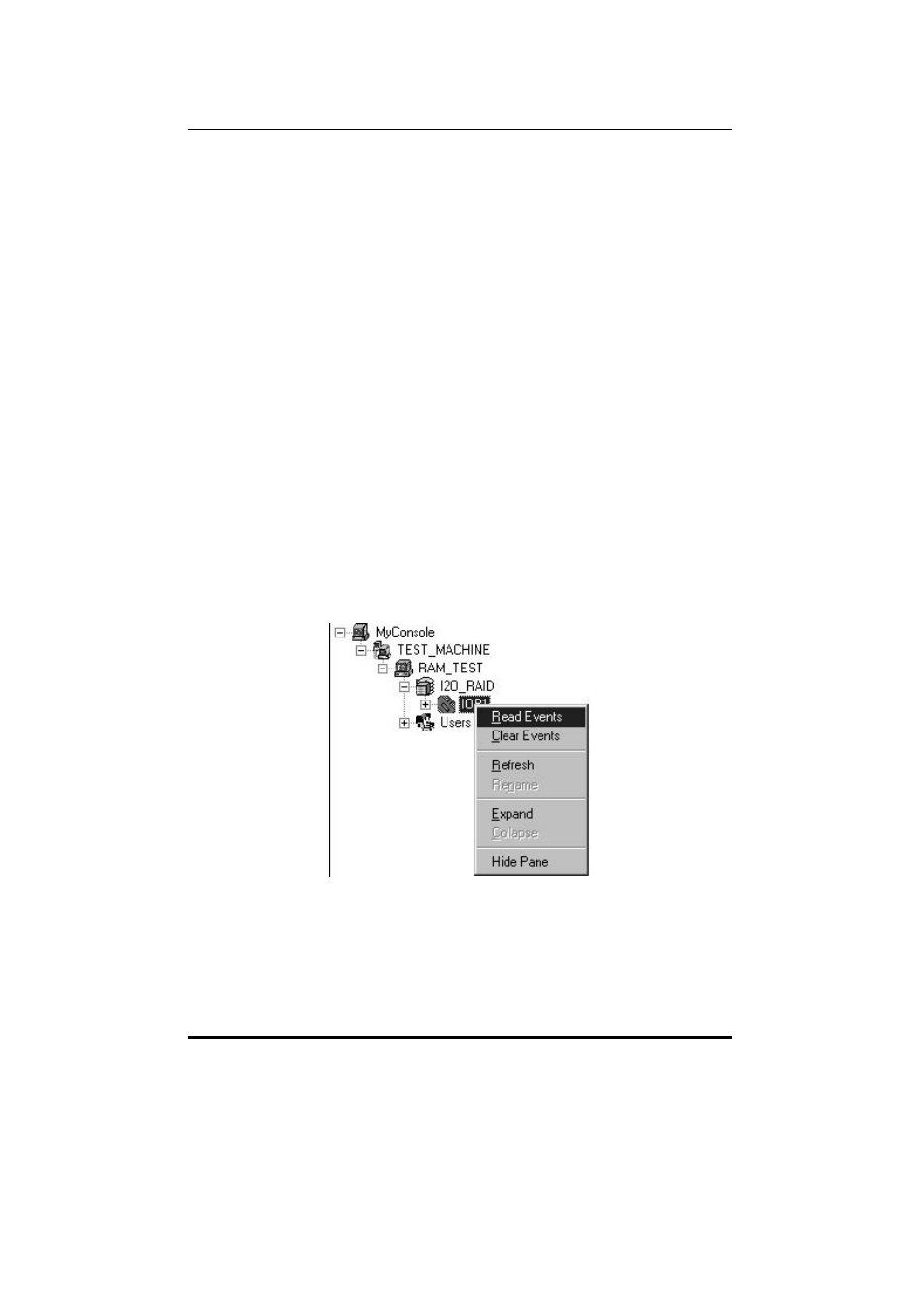

Figure 62: Read/Clear Events pull-down
