SuperTrak66™ User's Manual Chapter 5
- 51 -
Using Object View
The device icons generated by a double-click in the Tree View will be
displayed in this portion of the window. Double-clicking an icon in the
Object View highlights the item corresponding to it in the Tree View and
changes the Object View to include any items directly connected to the
icon.

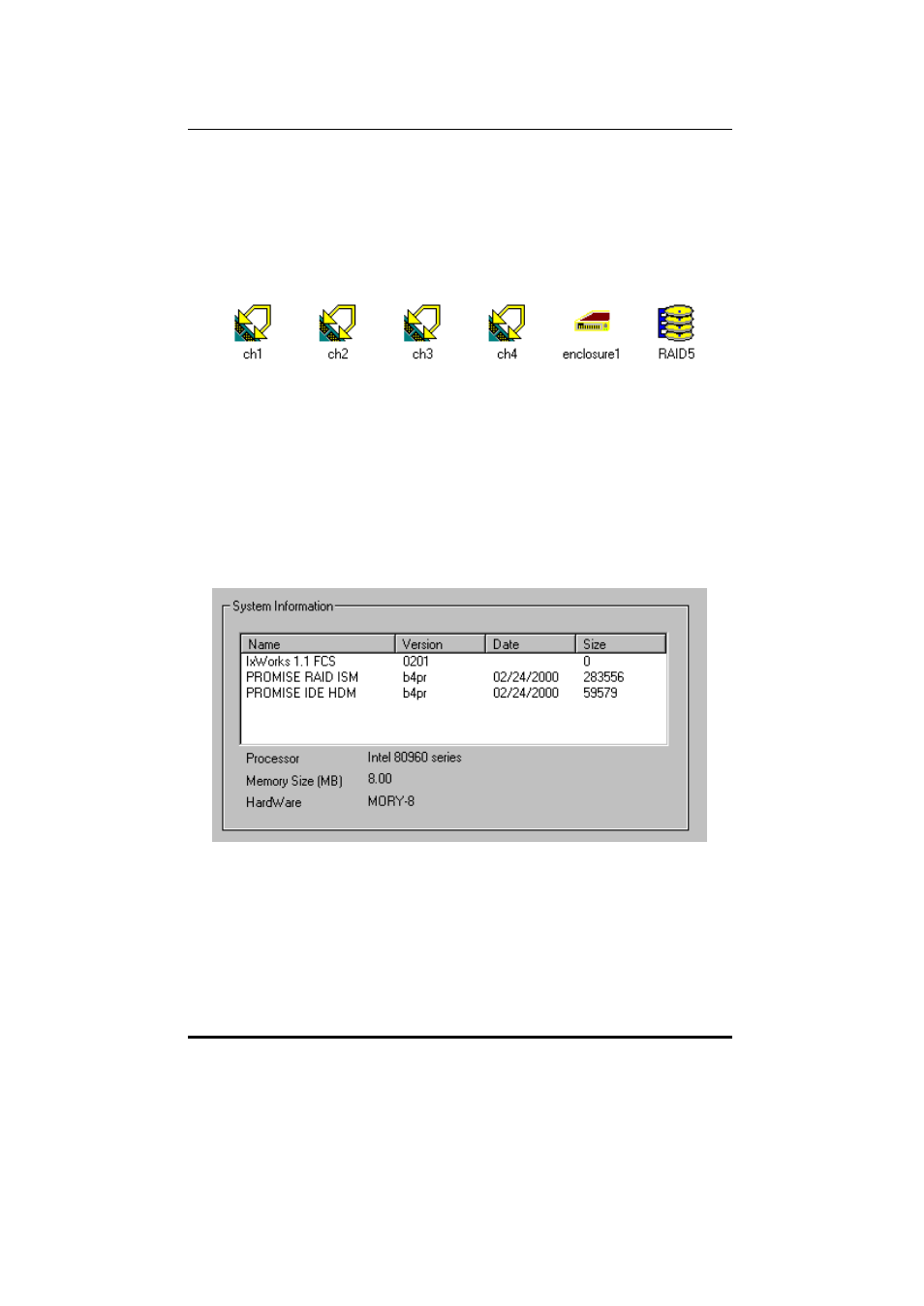

Figure 25: Using Object View
NOTE: Icons shown in this pane of the window which have a red “X” over
them represent an error or failed device.
Using Information View
The lower right portion of the SuperCheck main window is the Information
View. The Information View contains different items (text boxes, list boxes,
information fields and buttons), depending on which device is highlighted in
the Tree View.
Figure 26: Using Information View
