SuperTrak66™ User's Manual Chapter 5
- 49 -
Using Tree View
The Tree View can display every element of your SuperTrak66 system. This menu
behaves like the Tree View in Windows Explorer (Explorer shows logical drives and
folders, etc… in a hierarchical menu structure). You may also choose to expand or
collapse Tree View items, or hide/display the Tree View pane entirely.

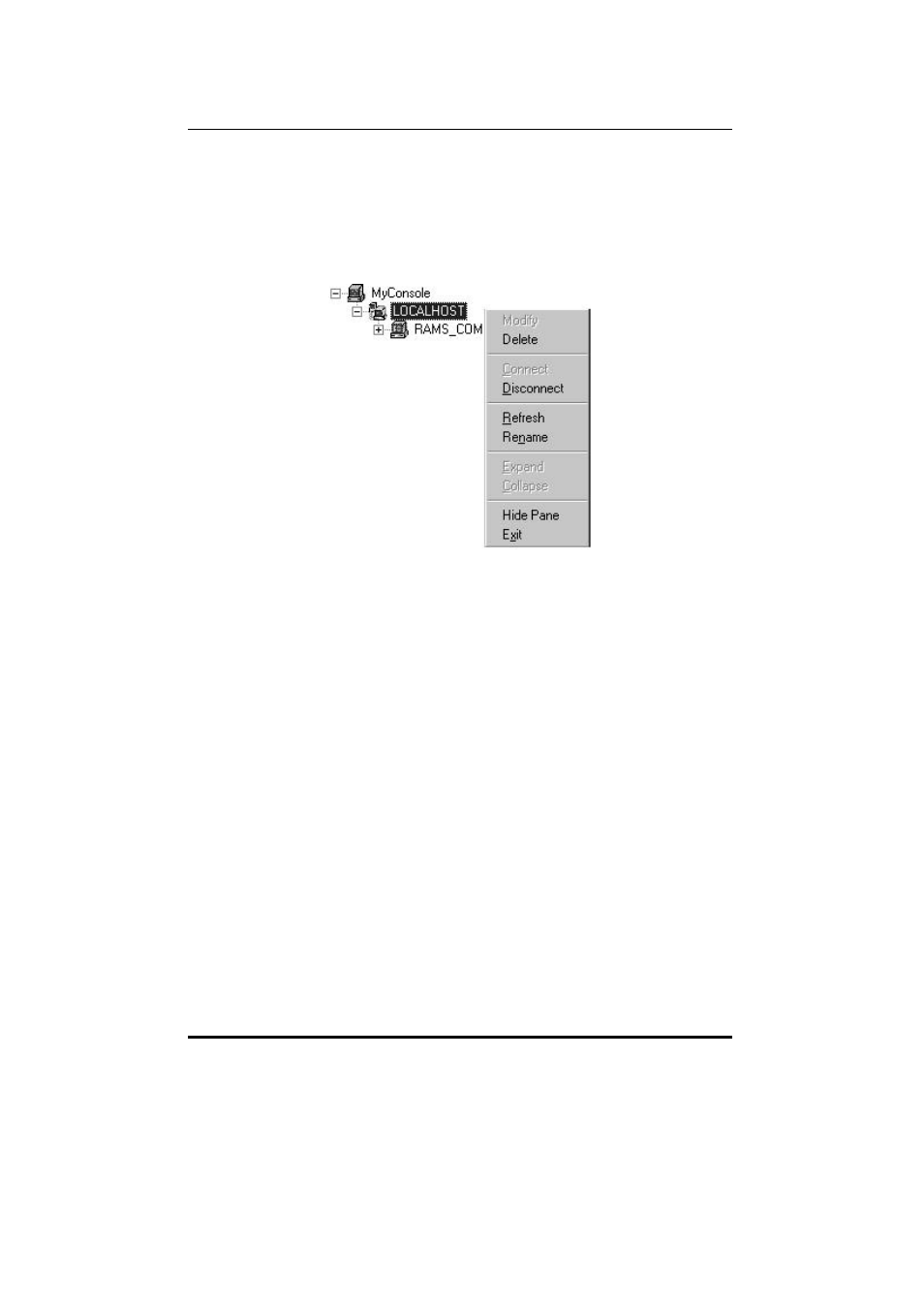

Figure 24: Using Tree View
Expanding/Collapsing Tree View Items
To open the items below a listed device, click once on the [+] to expand
the tree, [-] to collapse it. Double-clicking an item will not only cause the
tree to expand down, but will also add the sub-items as icons in the Object
View (see Figure 24 above).
Hiding/Displaying Tree View
Users may hide or show the Tree View pane of the SuperTrak66 Main
interface at any time. Navigation can be performed via the Object View
and/or pull-down menus. The hide/show function is accessed either by
right -clicking any icon in the Tree View and selecting “Hide” or “Show”.
The same function may be used with the pull-down menu with any icon
highlighted in Tree View (see Figure 24 above).
Renaming Displayed Levels
Users may rename the array and server names at the Tree View depending
on their administration rights.
The renaming function is accessed either by right-clicking the appropriate
icon in the Tree View and selecting “Rename” or by using the pull-down
menu with the appropriate icon highlighted in Tree View.
