SuperTrak66™ User's Manual Chapter 5
- 89 -
Enclosure Information View
The Information View shows a graphical representation of the FastSwap66 or
SuperSwap66 “hot” swap enclosures, along with the monitored components (fan,
temperature, or power), as shown below.

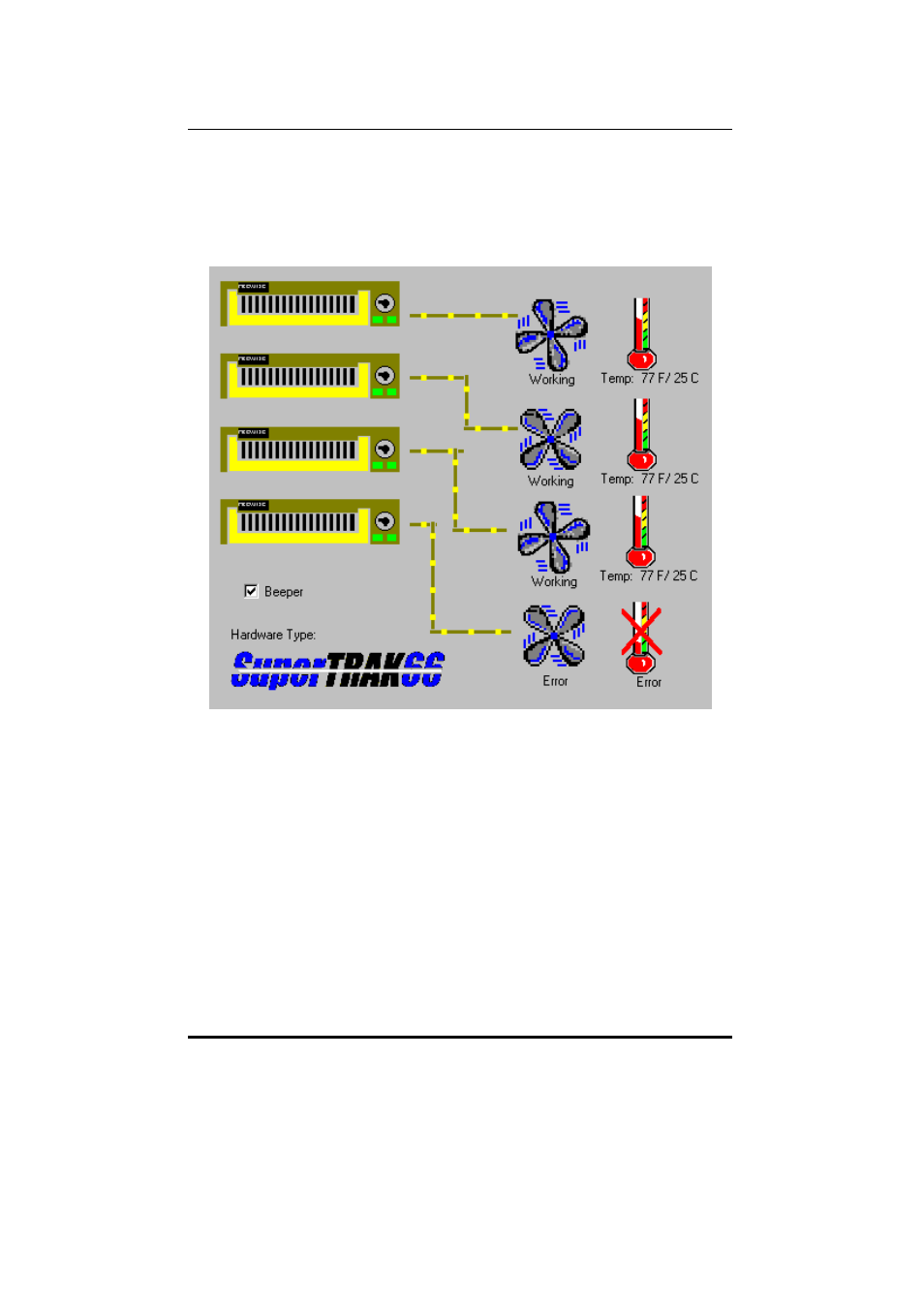

Figure 69: Enclosure Information View
The “fan” icons will display either a “working” fan, or a failed (“error”) fan. The
temperature icon will display a “working” thermometer (with the internal
temperature in °F, or an “error” thermometer (if the temperature inside the
enclosure exceeds 122° F). The “power” icons (not shown here) will display either
“on” or “off” when using the SuperSwap66 enclosure.
