Setting up the odometer
scale

Some older microfilms are indexed with odometer units instead of
image marks. The scanner can search odometer film as well as film
with image marks. To set an odometer unit:

From the Image Marks tab:

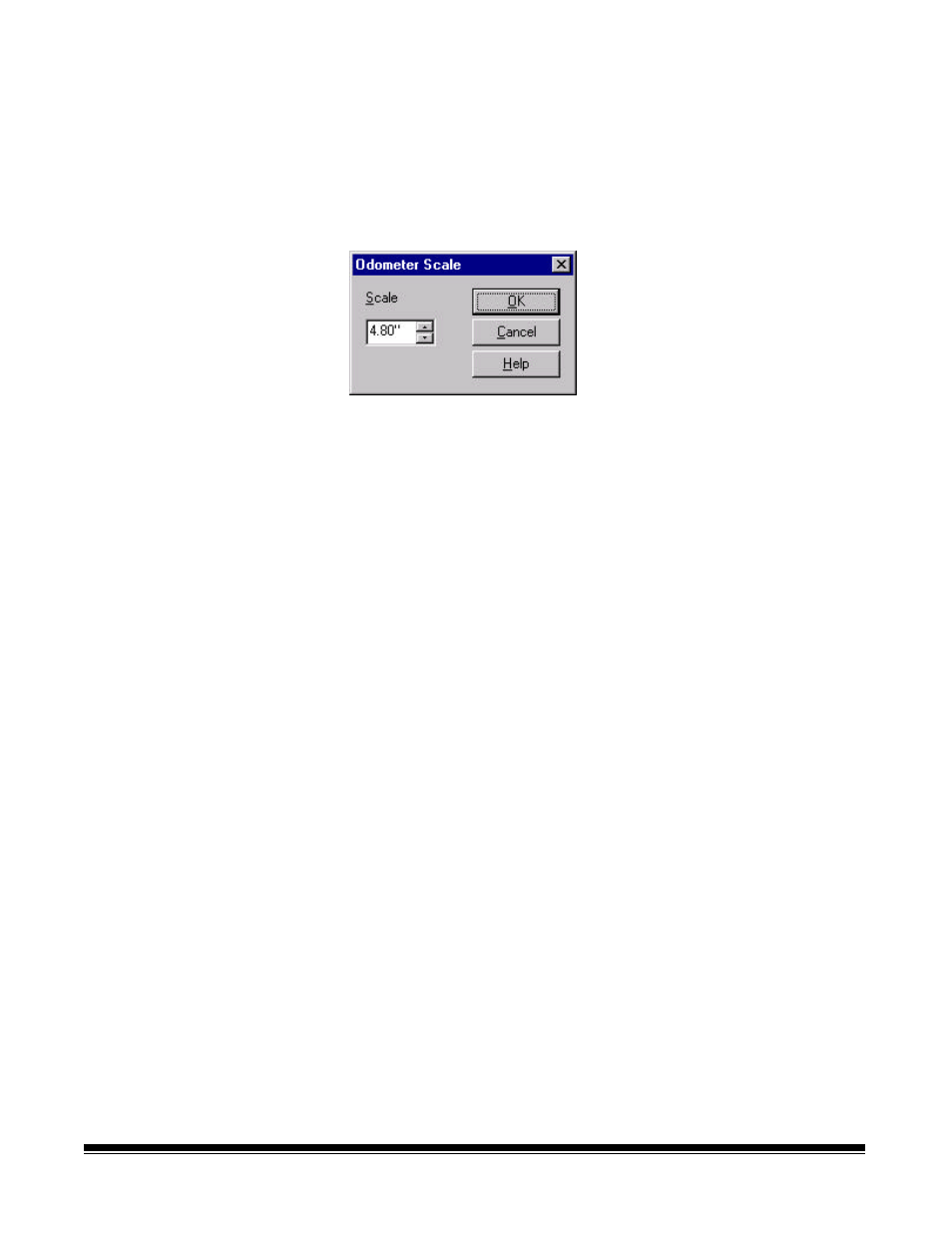

1. Select Odometer Scale Setup… The Odometer Scale dialog box is

displayed:

2. Enter a value in the Scale field. The value must be a whole number

between .050 and 12.0, and an increment of .050.

NOTE: This value represents how many inches 1 odometer unit is

equal to. For example, an odometer scale of 4 inches
means that 1 odometer unit is equal to 4 inches. Odometer
units are entered in the Image Retrieval keypad to specify
the distance to advance the film during retrievals. For more
information see the section entitled, “Using the odometer
mode” in Chapter 3.

3. Click OK to save the value and close the dialog box.
