8.1
8
Section 8
Disassembly
WARNING: Accidental Starts!
Disabling engine. Accidental starting can cause severe injury or death. Before working on the engine or equipment,
’œŠ‹•Žȱ‘ŽȱŽ—’—ŽȱŠœȱ˜••˜ œDZȱŗǼȱ’œŒ˜——ŽŒȱ‘Žȱœ™Š›”ȱ™•žȱ•ŽŠǻœǼǯȱŘǼȱ’œŒ˜——ŽŒȱ—ŽŠ’ŸŽȱǻȬǼȱ‹ŠĴŽ›¢ȱŒŠ‹•Žȱ›˜–ȱ‹ŠĴŽ›¢ǯ
Clean all parts thoroughly as the engine is
disassembled. Only clean parts can be accurately
inspected and gauged for wear or damage. There
are many commercially available cleaners that will
quickly remove grease, oil and grime from engine
parts. When such a cleaner is used, follow the
manufacturer’s instructions and safety precautions
carefully.
Make sure all traces of the cleaner are removed before
the engine is reassembled and placed into operation.
Even small amounts of these cleaners can quickly
break down the lubricating properties of engine oil.
Typical Disassembly Sequence
The following sequence is suggested for complete
engine disassembly. The sequence can be varied to
accommodate options or special equipment.
1. Disconnect spark plug leads.
ȱ Řǯȱ ‘žȱ˜ěȱžŽ•ȱœž™™•¢ǯ
ȱ řǯȱ ›Š’—ȱ˜’•ȱ›˜–ȱŒ›Š—”ŒŠœŽȱŠ—ȱ›Ž–˜ŸŽȱ˜’•ȱꕝŽ›ǯ
ȱ Śǯȱ Ž–˜ŸŽȱ–žĝŽ›ǯ
5. Remove cylinder shrouds and blower housing.
6. Remove electric starter motor.
7. Remove air cleaner assembly.
8. Remove fuel pump.
9. Remove control bracket, governor springs and
lever.
10. Remove carburetor.
11. Remove intake manifold.
12. Remove Oil Sentry™ (if equipped).
ŗřǯȱ Ž–˜ŸŽȱ‹ŠĝŽœȱŠ—ȱ’—Š”Žȱ–Š—’˜•ǯ
14. Remove oil cooler.
ȱŗśǯȱ Ž–˜ŸŽȱ˜’•ȱꕝŽ›ȱ‘˜žœ’—ǯ
16. Remove ignition modules.
17. Remove grass screen and cooling fan.
ŗŞǯȱ Ž–˜ŸŽȱĚ¢ ‘ŽŽ•ǯ
ȱŗşǯȱ Ž–˜ŸŽȱœŠ˜›ǰȱ›ŽŒ’ꎛȬ›Žž•Š˜›ȱŠ—ȱ ’›’—ȱ
harness.
20. Remove backing shroud assembly.
21. Remove spark plugs.
22. Remove valve covers.
ȱŘřǯȱ Ž–˜ŸŽȱŒ¢•’—Ž›ȱ‘ŽŠœȱŠ—ȱ‘¢›Šž•’Œȱ•’ĞŽ›œǯ
24. Remove breather assembly.
25. Remove oil pan assembly.
ȱŘŜǯȱ Ž–˜ŸŽȱŒŠ–œ‘ŠĞǯ
27. Remove connecting rods with pistons and rings.
ȱŘŞǯȱ Ž–˜ŸŽȱŒ›Š—”œ‘ŠĞǯ
29. Removal of governor gear.
ȱřŖǯȱ Ž–˜ŸŽȱ˜ŸŽ›—˜›ȱŽŠ›ȱ¢˜”ŽǰȱŒ›˜œœȱœ‘ŠĞȱŠ—ȱœŽŠ•ǯ
ȱřŗǯȱ Ž–˜ŸŽȱ•’ĞŽ›ȱŽŽȱŒ‘Š–‹Ž›ȱŒ˜ŸŽ›ȱŠ—ȱŠœ”Žœǯ
ȱřŘǯȱ Ž–˜ŸŽȱĚ¢ ‘ŽŽ•ȱŠ—ȱȱŽ—ȱ˜’•ȱœŽŠ•œǯ
33. Removal of main bearings.
Disconnect Spark Plug Leads
1. Disconnect the leads from the spark plugs. See
’ž›ŽȱŞȬŗǯ
DZȱ ž••ȱ˜—ȱ‹˜˜ȱ˜—•¢ǰȱ˜ȱ™›ŽŸŽ—ȱŠ–ŠŽȱ˜ȱœ™Š›”ȱ
plug lead.

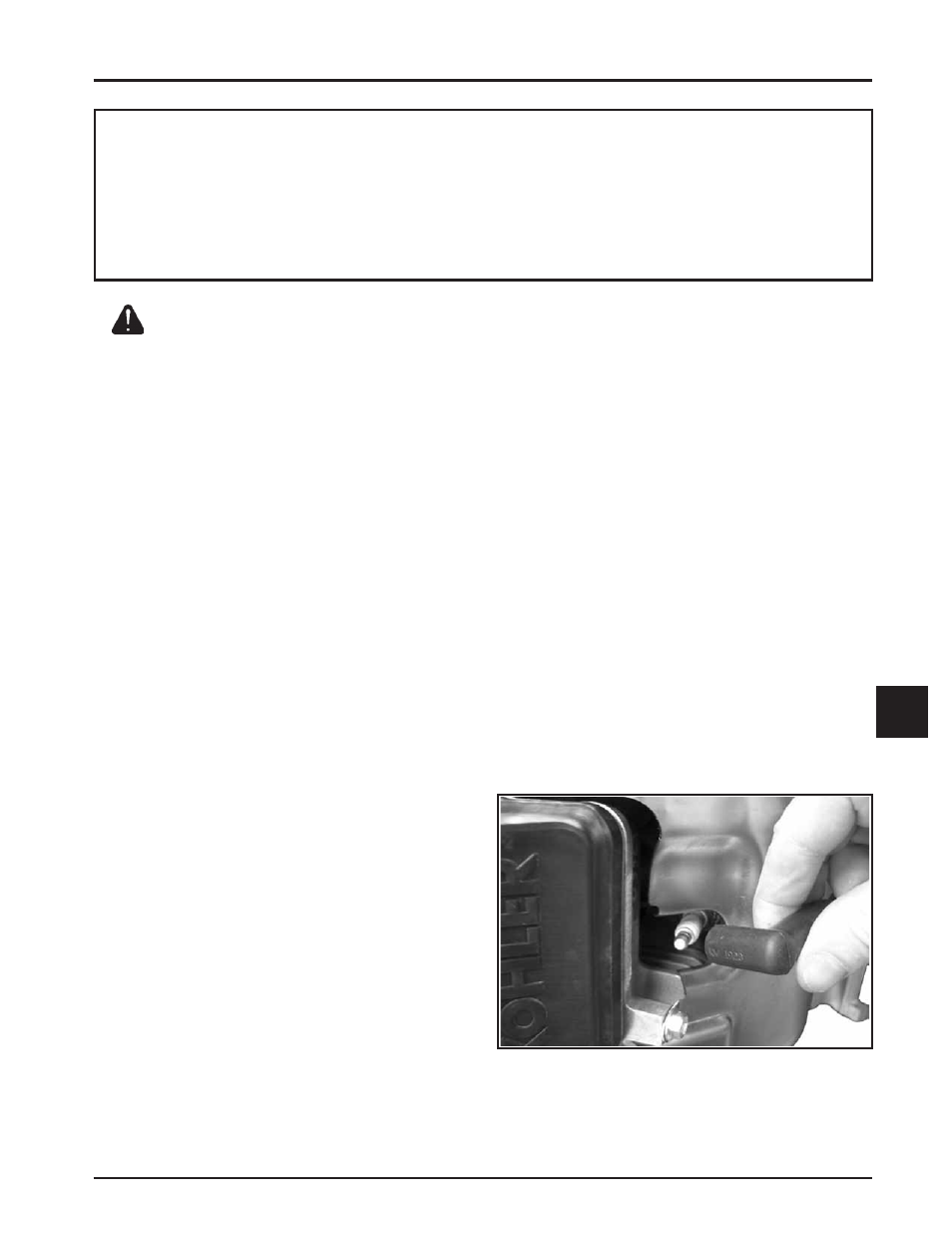

Figure 8-1. Disconnect Spark Plug Leads.
