8.11
Section 8
Disassembly
8

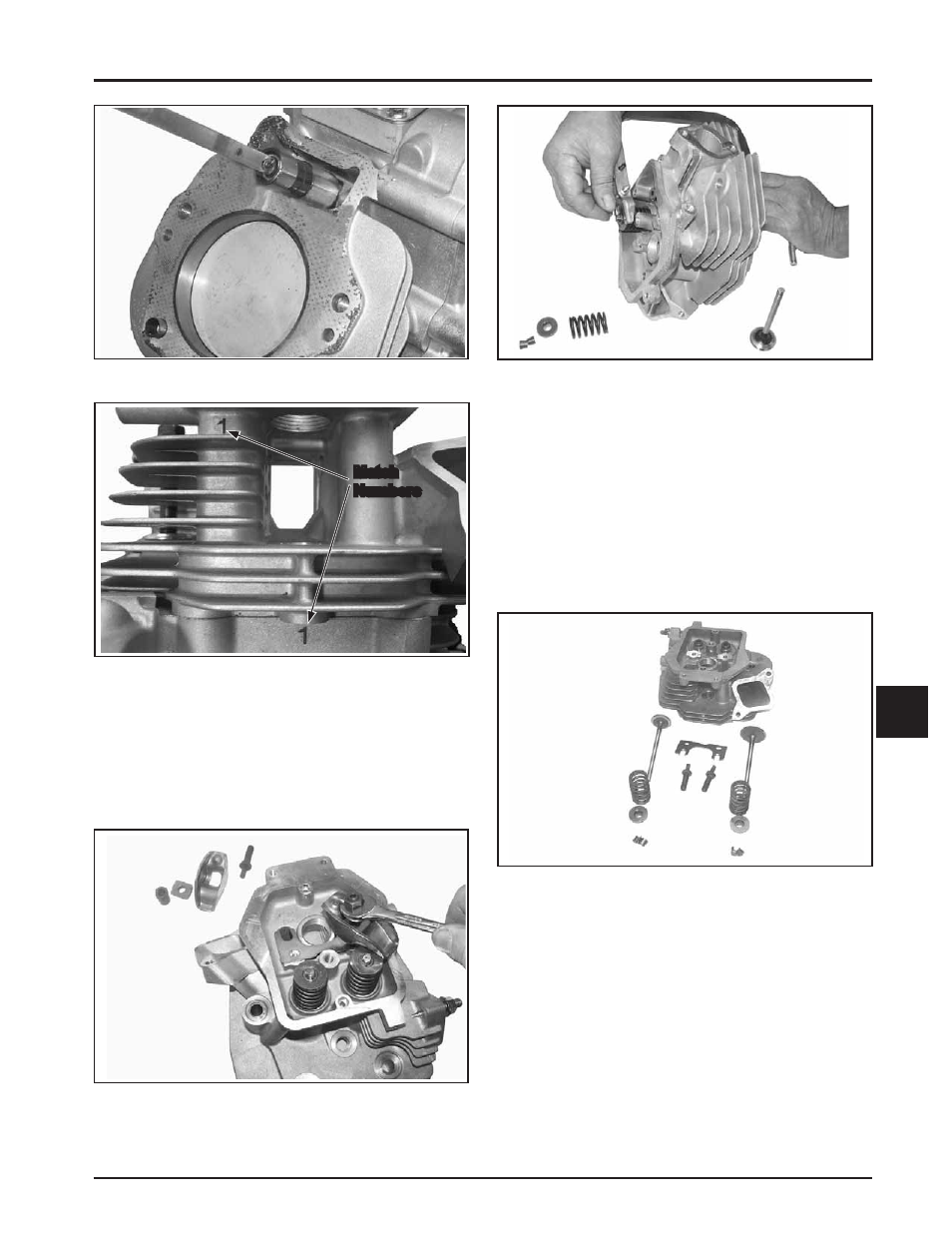

Figure 8-42. Removing Hydraulic Lifters.
Figure 8-43. Match Numbers on Cylinder Barrel
and Heads.
Disassemble Cylinder Heads
1. Remove the two adjusters, rocker arm pivots,
and rocker arms from the cylinder head. Remove
the pivot studs and guide plate as required. See
’ž›ŽȱŞȬŚŚǯ
Figure 8-44. Removing Rocker Arms.
2. Compress the valve springs using a valve spring
Œ˜–™›Žœœ˜›ǯȱŽŽȱ’ž›ŽȱŞȬŚśǯ
Figure 8-45. Removing Valves with Valve Spring
Compressor.
3. Once the valve spring is compressed, remove the
˜••˜ ’—ȱ’Ž–œǯȱŽŽȱ’ž›ŽœȱŞȬŚŜȱŠ—ȱŞȬŚŝǯ
• Valve spring keepers
• Valve spring retainers
• Valve springs
• Valve spring caps
• Intake and exhaust valves (mark position)
• Valve
stem seals
Figure 8-46. Valve Train Components.
Match
Numbers
