Click the [PTZ Preset Positions...] button

● The [PTZ Preset Positions for Device Name] window

appears.

Note :

● When using VN-C625U/VN-C655U, the preset position

cannot be registered if electronic zoom feature of camera
is functioning. Please take note that no error message will
be displayed in such case. During PTZ preset setting, turn
off electronic zoom in the following operations to prevent
registration by mistake.

● From [PTZ page] of VN-C625U/VN-C655U, set

[EZoom Limit] to

A1B. For details, refer to

[INSTRUCRTIONS] of VN-C625U/VN-C655U.

● The following configuration options are available in the

[PTZ Preset Positions for Device Name] window.

Note :

● The configurable items may differ according to the camera

in use.

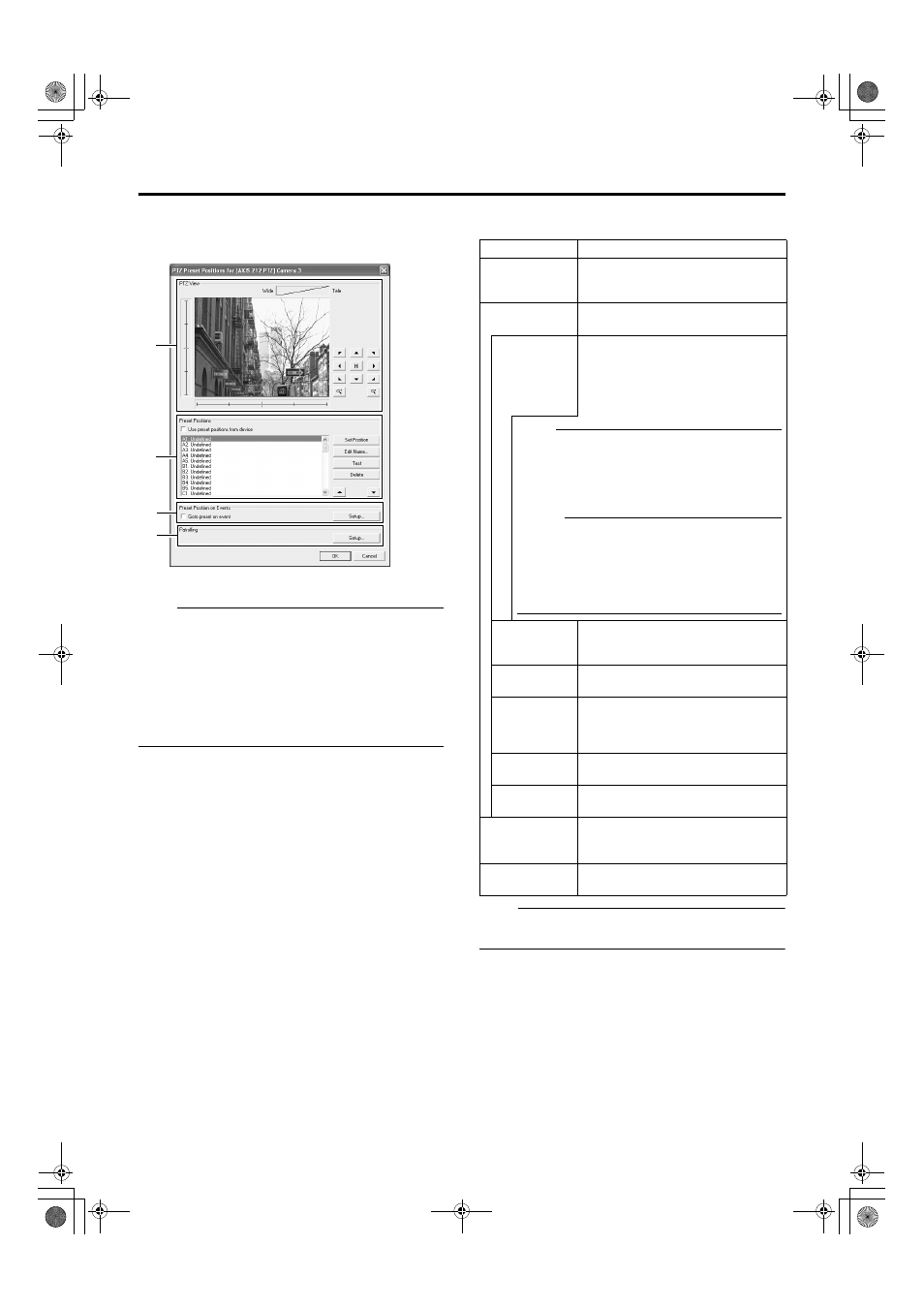

[PTZ Preset Positions for Device Name] Window

Item

Description

PTZ View

For moving the PTZ camera to the
desired position. You can check the
position on the screen.

Preset
Positions

For registering, deleting and testing a
PTZ camera position.

Use preset
positions from
device

This is only applicable to cameras that
support this feature.
Select this check box to use preset
positions defined by the camera or
network encoder (IP video server).

Note :

● To import preset PTZ positions from a device, the

preset PTZ positions of this unit first has to be
deleted. Note that by doing this you will lose all
information on the preset PTZ positions in this
unit.

Memo :

● In order to use preset positions from the camera

or network encoder (IP video server) on, the
names of the preset positions must contain only
alphanumeric characters (space is not allowed).
Preset positions with names that contain blank

characters cannot be imported.

Set Position

Registers the position specified in [PTZ
View] as the preset position selected in
the list.

Edit Name...

For editing the preset position name
selected in the list.

Test

For testing a defined preset position.
Select the preset position from the list,
and click the [Test] button. The result is
displayed immediately in [PTZ View].

Delete

For deleting the preset position selected
in the list.

J/K

For moving a preset position selected in
the list upward or downward.

Preset
Position on
Events

For specifying settings to move the PTZ
camera to a preset position when an
event occurs.

Patrolling

For configuring PTZ patrolling.
(APage 89 [Auto PTZ Patrolling])
