28
The following are procedures to open the main menu, which is
used for specifying various settings.
Note :
● The input ports do not operate when the main menu is
displayed. Inputs such as alarms will also be ignored
when the main menu is displayed.
[Input ports] (A Page 11) (VR-N1600U/E)
[Input ports] (A Page 15) (VR-N900U)
1
Press and hold the [REC/STOP] button for at
least 2 seconds
● Recording stops.
Memo :
● When in the recording control mode, press and hold the
[REC CONTROL] button for at least 2 seconds to switch
the recording control mode off and stop recording.
● For details on the recording mode, refer to [Recording
2
Press and hold the [FUNCTION] button, and
press the [REC CONTROL] button at the same
time
● The main menu appears.
● Select a menu with the [2/D] or [10/0/E](8/E) button and
press the [16/ENTER](ZOOM IN/ENTER) button to
open the selected setting screen.
`
The same operation can be done using the [SKIP]
button.
3
Select an item
● Select the required item using the [2/D] or [10/0/E](8/E)
button and specify the settings.
`
● Press the [16/ENTER](ZOOM IN/ENTER) button to
save the settings, and press the [13/CANCEL](ZOOM
OUT/CANCEL) button to close the screen and return to
the main menu.
`
Memo :
● To exit the main menu, press the [13/CANCEL](ZOOM
OUT/CANCEL) button.
`
Note :
● In some occasions, the NVR Viewer may appear instead
when you try to display the main menu while the NVR
Viewer is running. In this case, press the [LIVE/
BROWSE] button on the front panel and perform the
operation to display the main menu again.

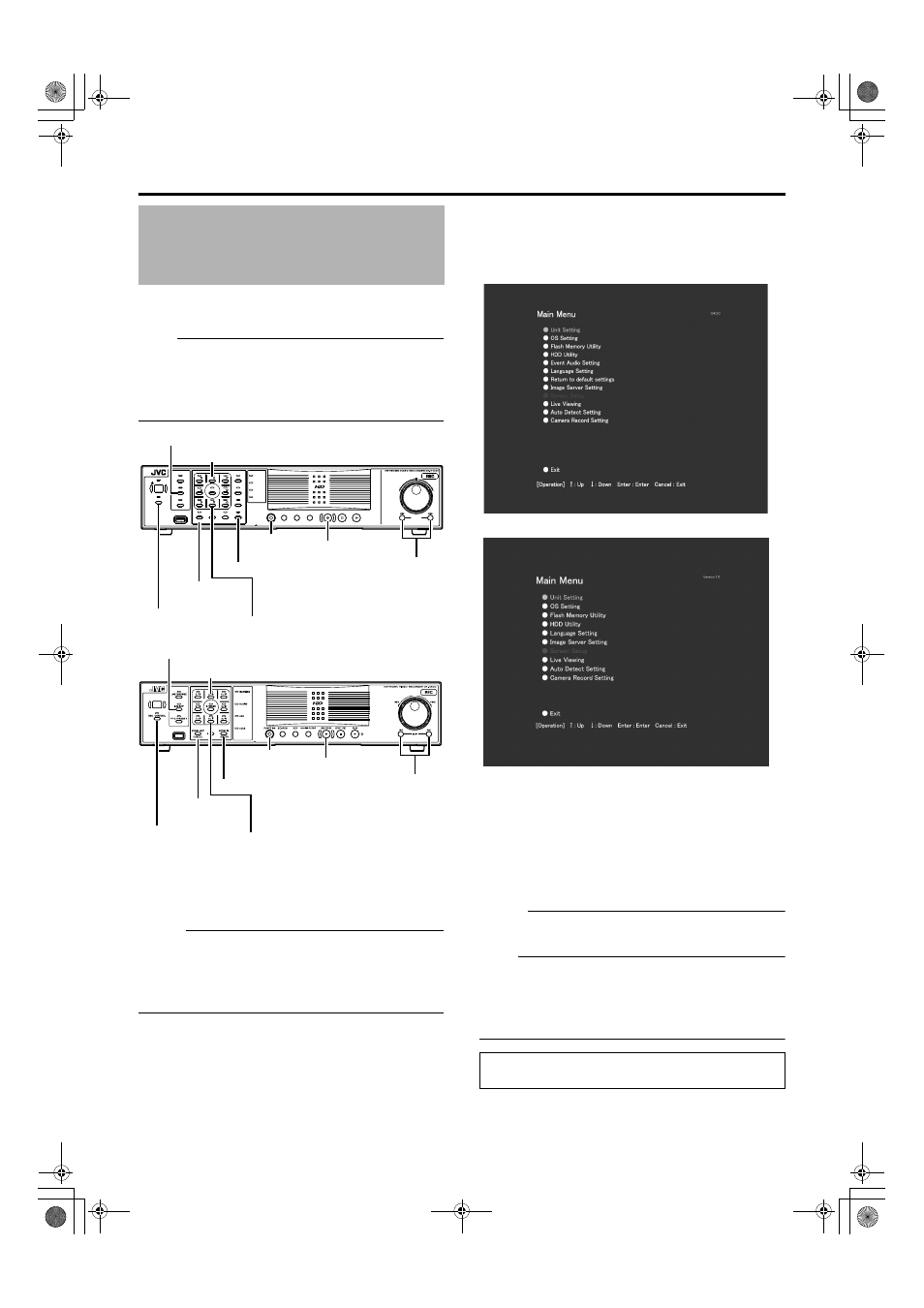

Opening the Main Menu
OPERATE
REC CONTROL
LIVE/BROWSE
SELECT
PTZ/PRESET
SERIAL
㧝
㧞
㧟
㧠
㧡
㧢*1/'
㧣
㧥
㧤
CANCEL
ZOOM OUT
ZOOM IN
ENTER
WARNING
ALARM
HDD
LOCK
SEARCH
FUNCTION
ALARM CLEAR
KEY
REC/STOP
STOP(PB)
PLAY
SKIP
REV
FWD
VR-N900U
VR-N1600U/E
[13/CANCEL]
Button
[16/ENTER] Button
[REC CONTROL]
Button
[REC/STOP]
Button
[FUNCTION]
Button
[2/D] Button
[10/0/E] Button
[SELECT] Button
[SKIP] Button
[ZOOM OUT/
CANCEL] Button
[ZOOM IN/ENTER] Button
[REC CONTROL]
Button
[REC/STOP] Button
[FUNCTION]
Button
[2/D] Button
[8/E] Button
[SELECT] Button
[SKIP] Button
ⅷ For details on the main menu settings, refer to
[Main Menu](VR-N1600U/E)
[Main Menu](VR-N900U)
