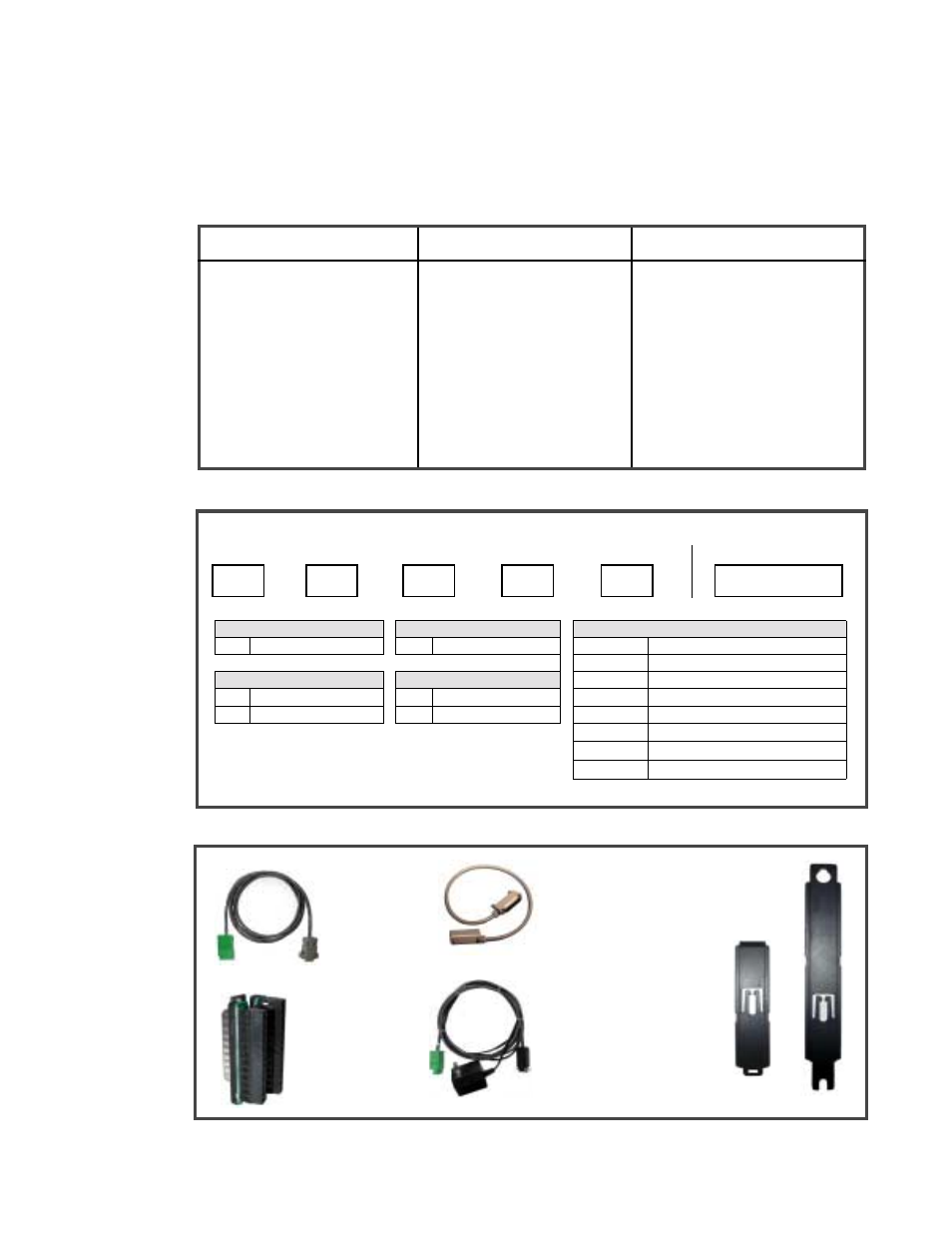

Chapter 2 - Shipping Contents
2-1
Chapter 2 - Shipping Contents
Your Impulse will arrive equipped as listed in section #1. If any parts or accessories are missing, please call
IDC Customer Support at: (800) 747-0064. Sections 2 and 3 are provided as reference material.
1 - What You Will Receive if You Ordered the Following:
2 - Ordering and Identifying an Impulse
3 - Accessories Currently Available for the Impulse
Impulse + FP100
(or FP220) Keypad
Impulse Only
Impulse + FP100-RS485
(or FP220-RS485) Keypad
1. Impulse Microstepping Drive 1. Impulse Microstepping Drive 1. Impulse Microstepping Drive
2. AC power cord for Impulse 2. Motor Connector 2. AC power cord for Impulse
3. Motor Connector 3. AC power cord for Impulse 3. Motor Connector
4. FP100 (or FP220) Keypad 4. IDCMotion Software 4. FP100 (or FP220) -RS485 Keypad
5. Remote cable for Keypad 5. Impulse Quick Setup/Ref. Guide 5. Keypad Power Supply
6. Keypad mounting gasket 6. Impulse User’s Manual 6. Remote cable for Keypad
7. Keypad mounting template 7. Keypad mounting gasket
8. IDCMotion Software 8. Keypad mounting template
9. Impulse Quick Setup/Ref. Guide 9. IDCMotion Software
10. Impulse User’s Manua l 10. Impulse Quick Setup/Ref. Guide
11. Impulse User’s Manua l
IMPULSE Input Power Capability Drive Type Communication Accessories
IM L T4
Using the tables below, fill in the boxes and you will be able to order or identify your Impulse:
Input Power Drive Type Accessories (order separately)
L Line Voltage 120 VAC T4 Stepper Drive, 4 A *FP_ _ _-_ _ Keypad Configuration
DB25BO 25 pin D-Shell Breakout Board
Capability Communication SS-IO 25 pin I/O Cable - 2 ft.
M Motion Node Version 2 RS232 SS-IO-6 25 pin I/O Cable - 6 ft.
D Drive Version 4 RS485 SS-RS232 Serial Comm. Cable
PCS-5004 Keypad to PC Cable
PCS-5110 Screw-Mounting Bracket
PCS-5111 DIN Rail Mounting Bracket
*FP100, FP220, FP100-RS485, or FP220-RS485
DB25BO
Screw Terminal
Breakout Board
SS-IO (2ft. cable)
SS-IO-6 (6ft. cable)
SS-RS232
Impulse to
PC Cable
PCS-5004
Keypad to PC
Cable
PCS-5110
Screw-Mount
Bracket
PCS-5111
DIN Rail
Mounting
Bracket
