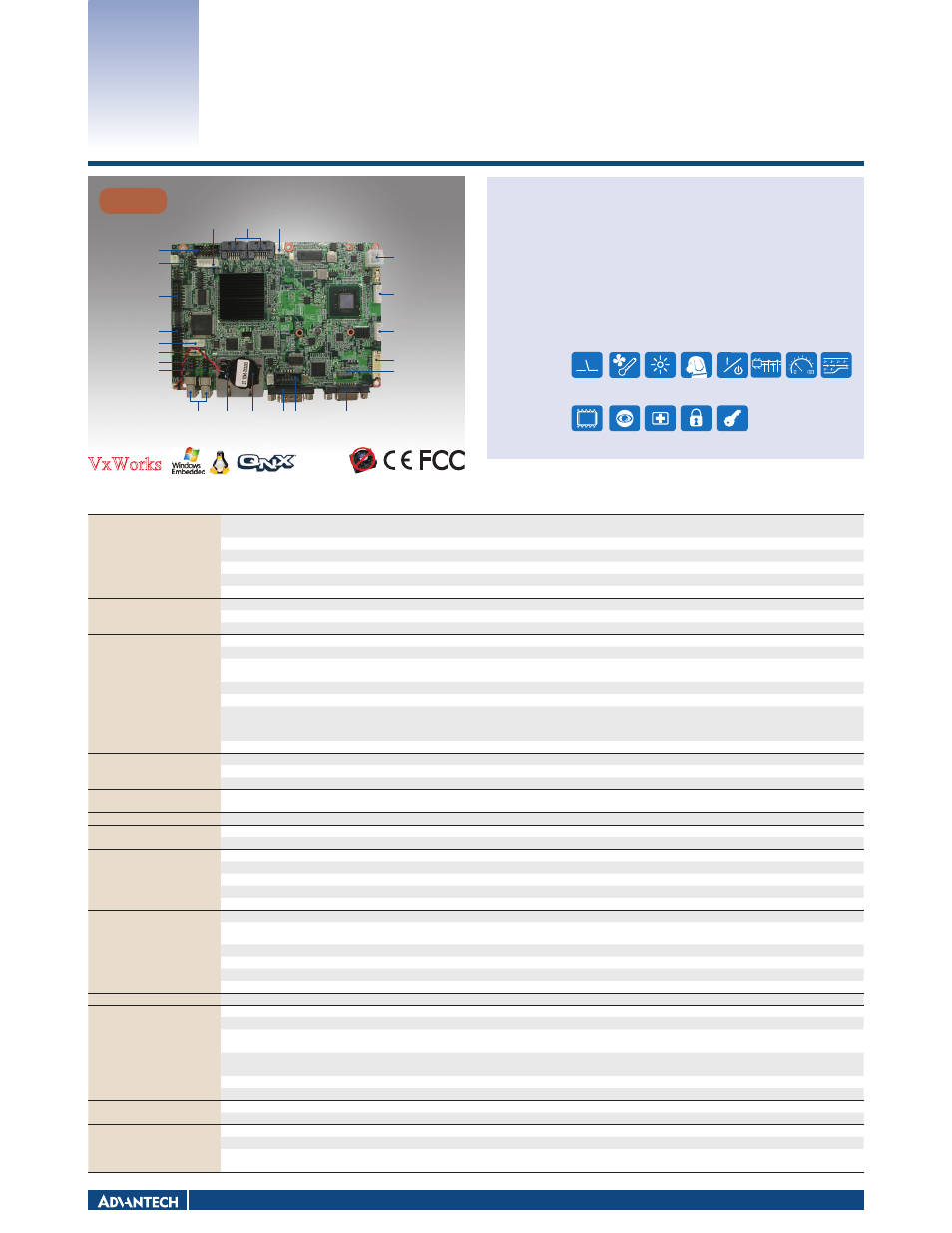

3.5" Single Board Computers

All product specifications are subject to change without notice

Last updated : 29-Nov-2011

Features

PCM-9363

Intel

®

Atom™ N455/D525 3.5" SBC,

DDR3, 18/24-bit LVDS, VGA or HDMI,

2 GbE, Mini PCIe, 3 COM

ƒ Embedded Intel

®

Atom™ N455 Single Core/ D525 Dual Core processor +

ICH8M, DDR3 memory support

ƒ Intel Gen 3.5 DX9, MPEG2 Decode in HW, multiple display: 18/24-bit LVDS,

VGA or 1080P HDMI

ƒ Supports 12V input power for PCM-9363, easy for power integration

ƒ 2 Intel GbE support, Rich I/O interface with 3COM, 2 SATA, 6 USB and GPIO

ƒ Supports embedded software APIs and Utilities

Specifications

Processor System

CPU

Intel Atom N455 Single Core 1.66 GHz Processor

Intel Atom D525 Dual Core 1.8 GHz Processor

Front Side Bus

667 MHz for N455, 800 MHz for D525

Frequency

1.66 GHz on N455, 1.8 GHz on D525

L2 Cache

512 KB/1 MB

System Chipset

Intel N455/D525 + ICH8M

BIOS

AMI 16 Mbit Flash BIOS

Memory

Technology

DDR3 800 MHz

Max. Capacity

4GB for D525, and 2GB for N455

Socket

1 x 204-pin SODIMM

Display

Chipset

Intel Atom Processor N455 1.66GHz/D525 1.8GHz

VRAM

Optimized Shared Memory Architecture up to 224 MB system memory

Graphic Engine

Intel Gen 3.5 DX9, MPEG2 Decode in HW

Embedded Gen3.5+ GFX Core

LVDS

LVDS: Single channel 18/24-bit LVDS up to WXGA 1366 x 768

VGA

Intel Atom N455 Single Core up to 1400 x 1050 (SXGA), Intel Atom D525 Dual Core up to 2048 x 1536

HDMI

Supported by request.

Support 1080P and scale function (the HDMI resolution has to be set by Chrontel Utility in Windows XP/XP embedded)

Supports Hot Plug Detection (HPD) for HDMI

Dual Display

VGA+LVDS

Ethernet

Speed

10/100/1000 Mbps (Supports Wake on LAN)

Controller

GbE1 Intel 82567V, GbE2 Intel 82583V

Connector

RJ45 on GbE1, GbE2

Audio

Chipset

Realtek ALC892

High Definition Audio (HD), Line-in, Line out, Mic-in

WatchDog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

Compact Flash

Supports CompactFlach Card TYPE I/II (Primary Master IDE Channel)

SATA

2 SATA II (Max. Data Transfer Rate 300 MB/s), 1 internal SATA power connector

Rear I/O

Serial

1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

Ethernet

2 (10/100/1000Mbps)

VGA

1

HDMI

1 (only on PCM-9363DH)

USB

2

Internal I/O

USB

4 x USB 2.0

Serial

2 x COM (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

COM3 supports RS-232, COM2 supports RS-232/422/485 (Supports RS-485 auto flow control)

Parallel(LPT)

1

SMBUS

1

PS/2 KB/Mouse

1

GPIO

8-bit GPIO

Expansion

Mini PCI Express

1

Power

Power Type

AT

Power Supply Voltage

Support single 12V input, ± 10%

Power Consumption (Typical)

0.74 A @ 12 V (N455/ DDR3 1 GB)

0.86 A @ 12 V (D525/ DDR3 1 GB)

Power Consumption

(Max, test in HCT)

0.86 A @ 12 V (N455/ DDR3 1 GB)

1.18 A @ 12 V (D525/ DDR3 1 GB)

Power Management

APM, ACPI

Battery

Lithium 3 V/210 mAH

Environment

Operational

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational

-40° C ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical Characteristics

Dimensions (L x W)

146 x 102 mm (5.7" x 4")

Weight

0.85 kg (1.87 lb), weight of total package

Total Height

30.5mm for PCM-9363N

34.5mm for PCM-9363D/DH

Backlight

On/Off

Watchdog

GPIO

H/W

Monitor

Brightness

Monitoring

BIOS flash

Software APIs:

Utilities:

SMBus CPU Speed System

Throttling

eSOS Flash Lock Embedded

Security ID

GPIO

COM2

LPT

PS2

SMBus

Internal

USB

USB

GbE1 GbE2 COM1 COM3

VGA

HDMI

18/24 bits LVDS

Inverter Power

Output

SATA Power

Power input

FAN

SATA

Audio

HD & PWR LED

NEW

VxWorks

®
