Impulse PCW-5181 User Manual
Page 32
Chapter 4 - Configuring Impulse with Application Developer
4-8

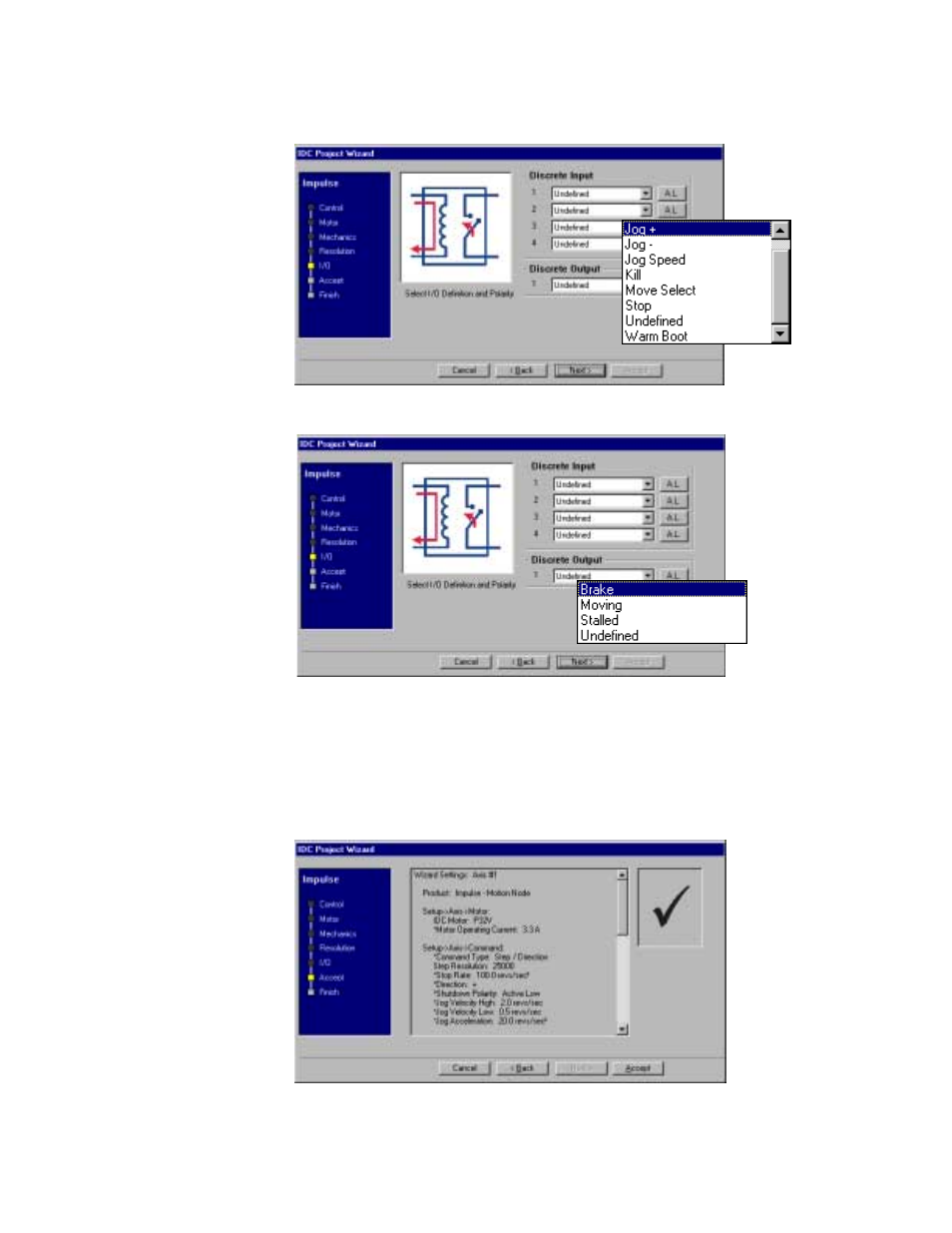

Discrete Inputs (see pulldown menu)
Discrete Outputs (see pulldown menu)
6.
When all parameters have been configured, click Next and the Accept window will appear. This
display allows you to review the settings made earlier, or gives you an opportunity to return
(Back button) to any parameter you may want to change.
•
When satisfied with the setup of your system, click on Accept. The Wizard Navigator
should now indicate that all setup parameters have been configured. Use the scroll.bar/but-
tons to review the project file.
