Chapter 5 - Configuring Impulse with an IDC Keypad
5-3

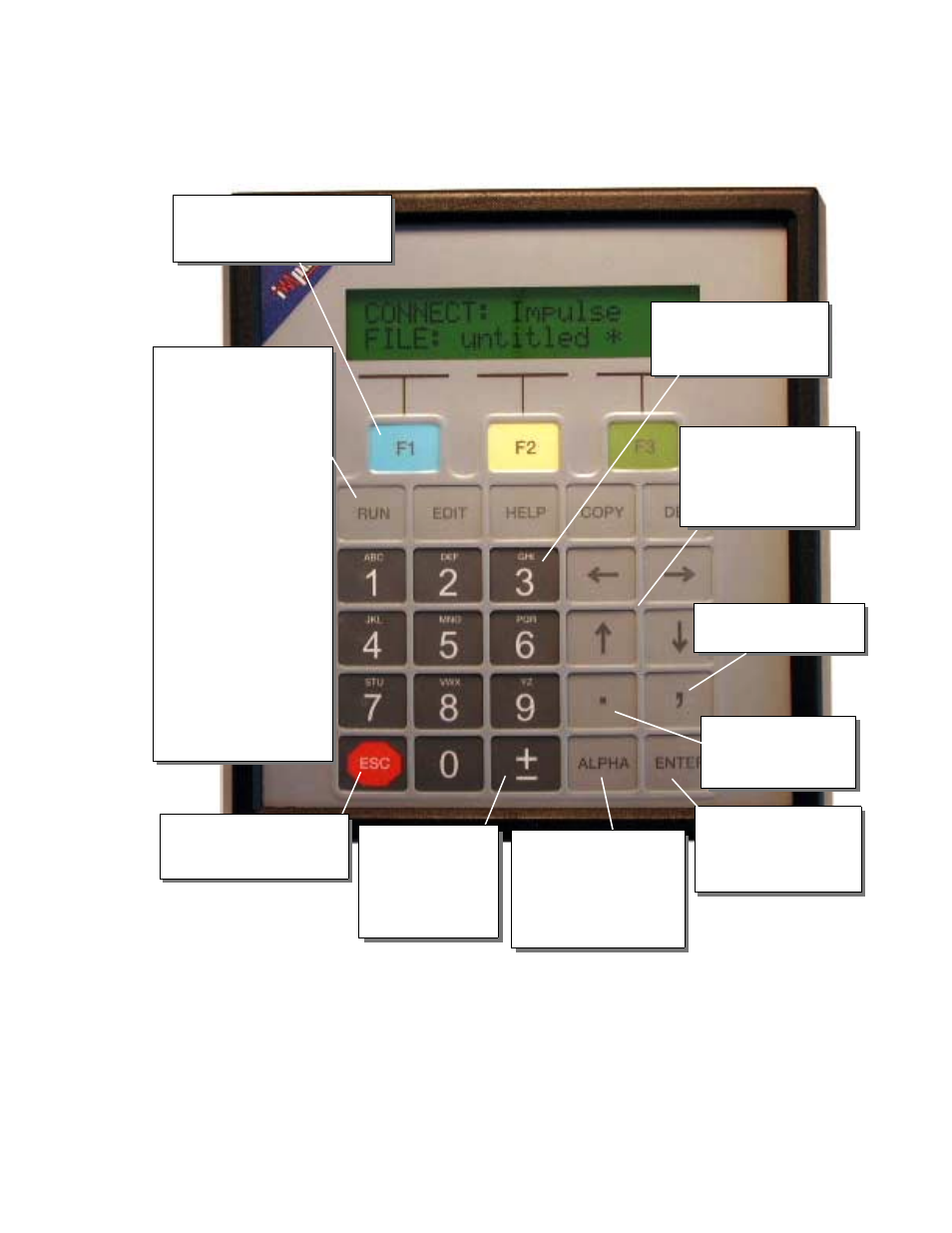

Functions of the FP100 Keypad Keys
DECIMAL POINT
Used to enter fixed-point
numbers.
.
RUN - Runs a program, jogs
an axis, or accesses Test/
Debug functions.
EDIT - Edits Setup parame-
ters and programs, lists pro-
grams, & resets position
counter.
HELP - Provides help on
keys, menus, and command
syntax.
COPY - Copies one program
to another within a control.
DEL - Deletes characters in
the editor or deletes entire
programs from memory.
Menu Keys
RUN - Run stored moves,
probe and jog the motor,
warm-boot the drive, and
enable/disable software
shutdown.
EDIT - Configure and tune
the setup and stored move
parameters. Select, edit,
and load project files.
HELP - Displays keypad,
firmware, and hardware ver-
sions. Shows drive and I/O
status, and fault history.
COPY - Copies project files
to and from a drive.
DEL - Deletes project files or
characters in a text-entry
editor.
DECIMAL POINT
Used to enter fixed-point
numbers when the text-
entry editor allow it.
COMMA
May be used in file names.
ENTER
Selects project files and
saves edits to project files
in the File Options menu.
0-9 Keys
Enters numbers directly, and
letters when preceded by the
ALPHA key.
F Keys (F1-F2-F3)
Used as menu or sub-menu item
selectors.
←↑→ ↓
For scrolling through menu
options, setup choices, and
files in the editor.
Moves motor in JOG mode.
ALPHA
ALPHA plus a numeric key
selects alphabet charac-
ters, for example:
ALPHA +1 selects A,
ALPHA +1+1 selects B
ALPHA
ALPHA plus a numeric key
selects alphabet characters.
Pressing:
ALPHA >1 enters “A”
ALPHA >1>1>1>1 enters “a”
ESC
Saves an entry and moves back
one menu level.
±
Serves as a minus or
hyphen key on the
FFP100 keypad. The
+ symbol is not avail-
able on the FP100.
