G. Mounting the Impulse Drive
This section includes installation requirements, Impulse dimensions, installing and removing
mounting brackets, and mounting the Impulse on a DIN rail.
Environmental and Installation Requirements
• Operating Ambient Temperature: Max. 50º C (122º F) @ 4 Amps
• Storage Temperature: Max. 65º C (149º F)
• Not intended for use in humidity above 95% (non-condensing), or at altitudes greater than
3,048 meters [10,000 ft.]
• Heat Dissipation @ 4 A (typical): 32 Watts
• Leave 6 inches above and below drives for airflow and wiring.
• Leave 0.1 inch between drives for easier mounting.
• Air supplied to the Impulse must be uncontaminated.
Mounting Arrangements

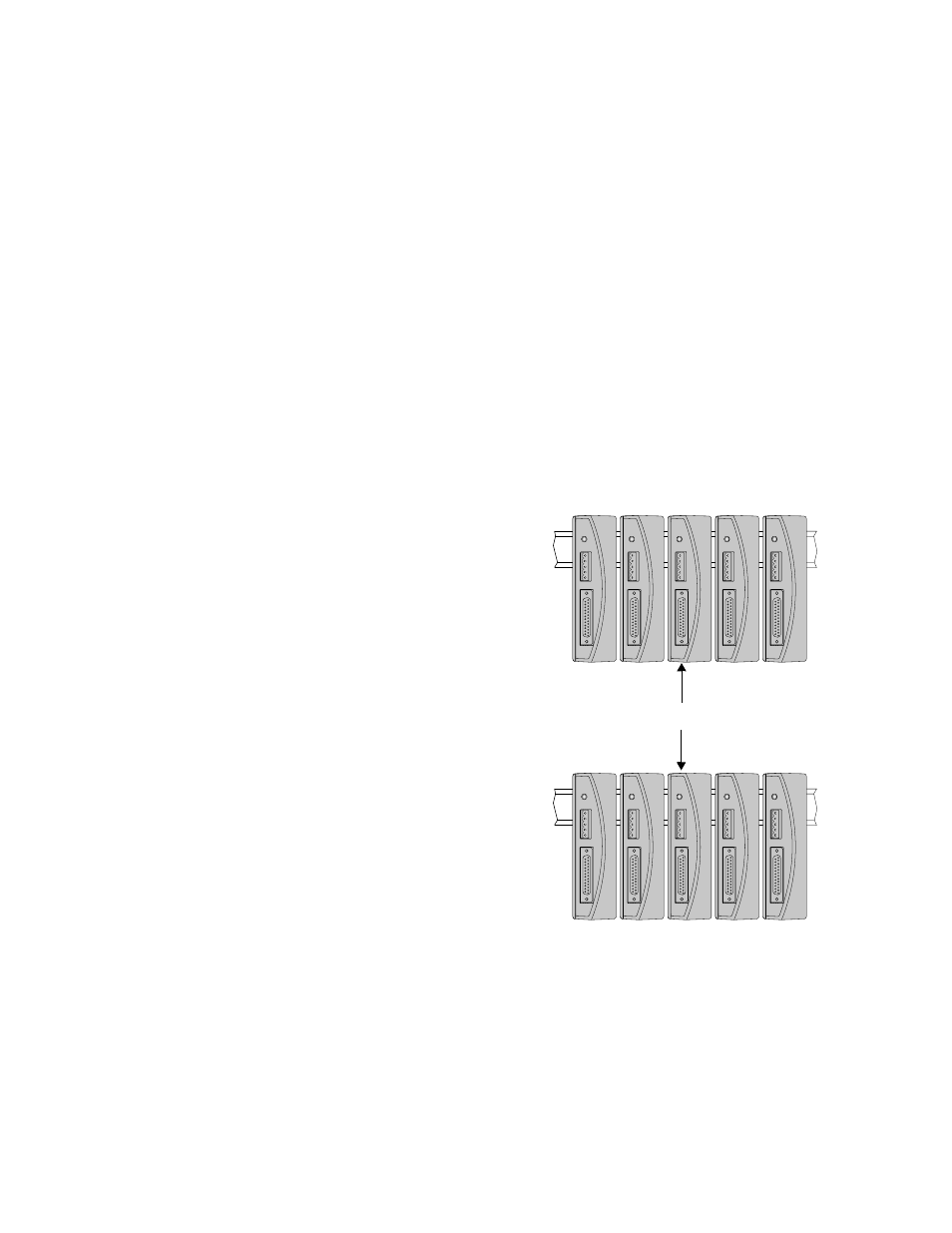

The illustration on the right shows an example
of an acceptable mounting arrangement.
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
COM PORT
I/O
6.0 in.
