Impulse PCW-5181 User Manual
Page 35
Chapter 4 - Configuring Impulse with Application Developer
4-11
Motor
•
Motor Name - Select your motor from the list, or click on the Edit Motor button to create a
custom motor file or edit an existing IDC motor file.
•
Electrical - These text input boxes display the electrical characteristics of the selected motor.
If a text input box displays a zero (0), that particular electrical characteristic has not been con-
figured as part of the motor file. To create or change a motor file, see Edit Motor.
•
Mechanical - These text input boxes display the mechanical characteristics of the selected
motor. If a text input box displays a zero (0), that particular mechanical characteristic has not
been configured as part of the motor file. To create or change a motor file, see Edit Motor.
•

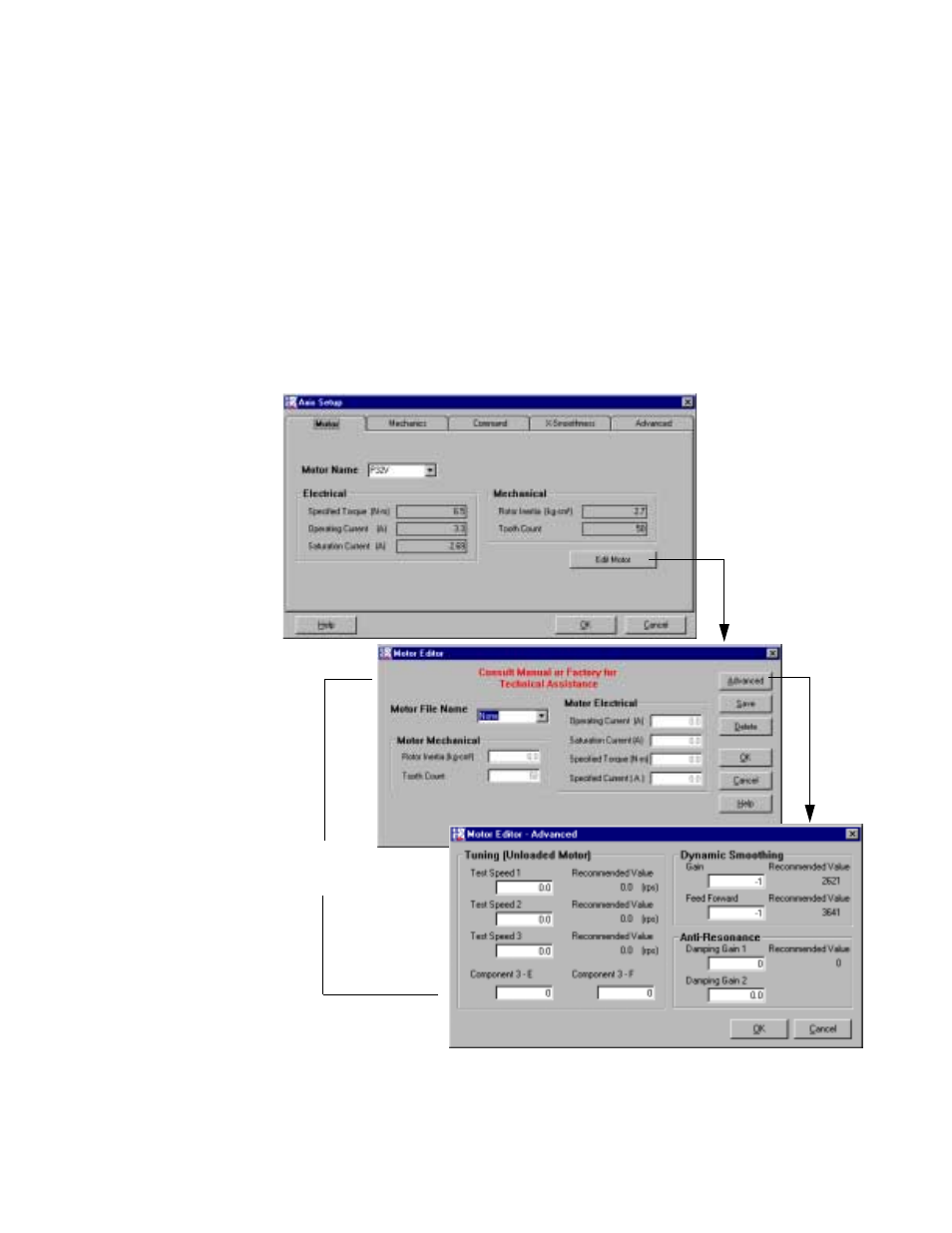

Edit Motor - See Appendix C for information on using this feature. The “Advanced” tuning
feature is also covered in Appendix C.
See Appendix C
to Edit a Motor
