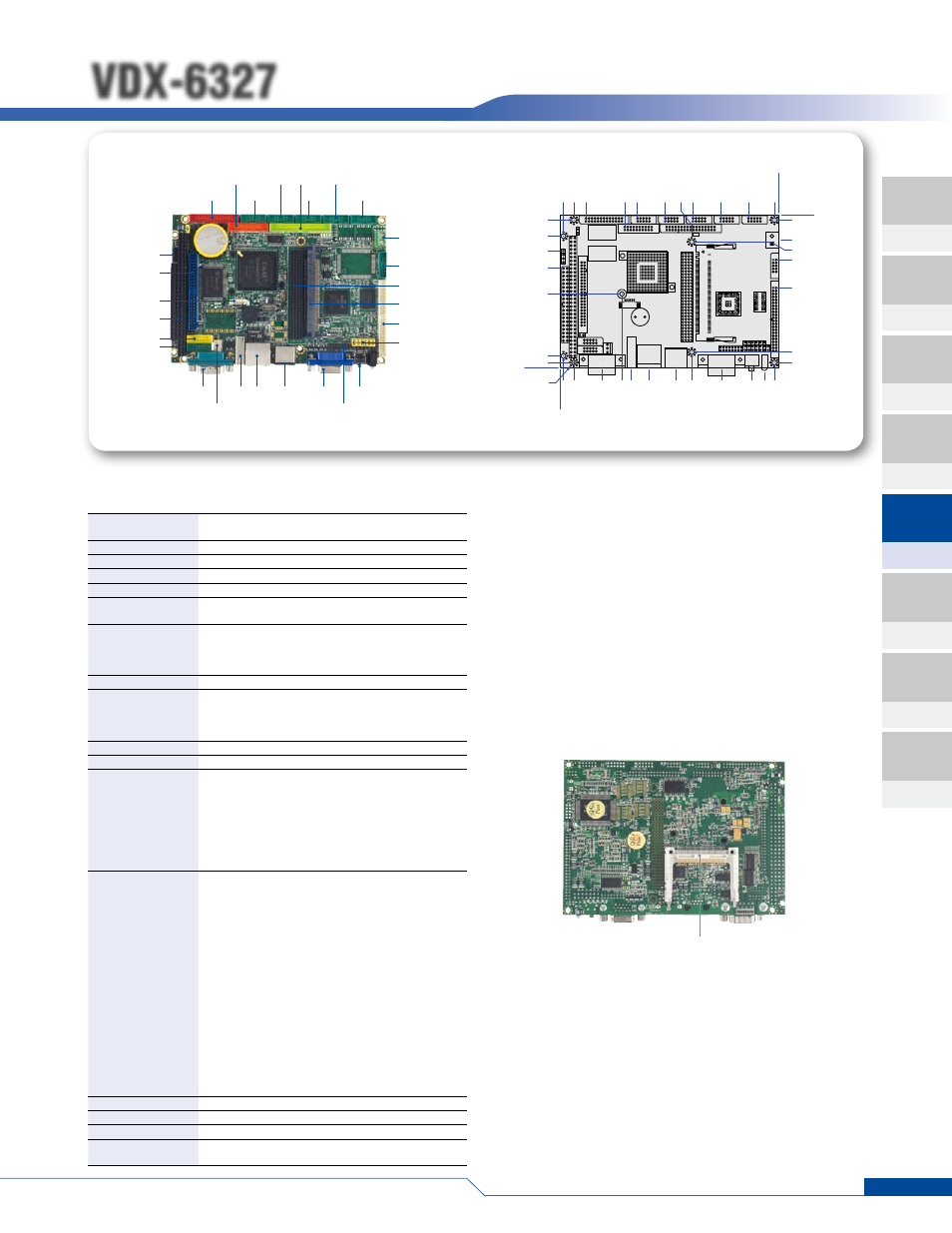

VDX-6327
Unit: mm
256MB/8S/3USB/VGA/LCD/LVDS/
LAN/GPIO/CF/FDD/PWMx16
Specifications
SoC DM&P SoC CPU Vortex86DX- 800MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache L2 Cache 128KB
Bus PCI-104+ standard compliant
BIOS AMI BIOS
System Memory 256/512MB DDR2 Onboard
Watchdog Timer Software programmable from 30.5µ sec.to 512 sec. x 2 sets
(Watchdog 1 fully compatible with M6117D)
VGA XGI Volari Z9s Chipset
VGA and TFT/LVDS Flat Panel Interface Support
Onboard 32MB VGA Memory, support resolution up to
1280x1024, 16M colors
LAN Integrated 10/100Mbps Ethernet
Flash Disk Support Onboard 4MB SPI Flash Disk
MSTI EmbedDisk Module (16MB and above)
Compact Flash Type I/II
44-pin IDE to Micro SD (Optional)
PWM 16~24 Channels
SRAM support 512KB (Optional)
I/O Interface Enhanced IDE port (UltraDMA-100/66/33) x1
FDD x 1
RS-232 port x7
RS-232/422/485 port x1
USB port (2.0) x3
Parallel port x1
16-bit GPIO port x1
10/100Mbps Ethernet port x1
Connectors 2.54mm 4-pin header for +12V, -12V, -5V, GND x 1
2.54mm 2-pin header for Reset x1
2.54mm 3-pin header for RS-485 x1
2.0mm 44-pin box header for IDE x1
2.0mm 44-pin box header for LCD x1
2.0mm 34-pin box header for FDD x 1
2.0mm 26-pin box header for Printer x1
2.0mm 20-pin box header for 16-bit GPIO x1
2.0mm 10-pin box header for RS-232 x7
2.0mm 10-pin box header for USB x1
1.25mm 6-pin wafer for JTAG x1
0.8mm 124-pin Mini-PCI card connector x 1
External 15-pin D-Sub female connector for VGA x1
External 9-pin D-Sub male connector for RS-232 x1
External RJ-45 connector for Ethernet x1
External USB connector x 1
External Mini DIN connector for Keyboard/Mouse x1
Type I/II Compact Flash Slot x1
Power Requirement Single Voltage +5V @ 840mA
Weight 150g
Board Size 102 x 144mm (4.01 x 5.67 inches)
Operating
Temperature
-20°C ~ +70°C
-40°C ~ +85°C (Optional)
Packing List
• VDX-6327 x1
• CD for User’s Manual & Driver x1
• Cable
HDD 44P (2.0) x1
FDD 44P (2.0) x1
PRINT (2.0) x1
USB (2.0) x1
RS-232 (2.0) x7
GPIO (2.0) x1
YKB x1
Ordering information
• VDX-6327 Vortex86DX 3.5" CPU Module with 256MB DDR2
• VDX-6327-512 Vortex86DX 3.5" CPU Module with 512MB DDR2
3.2
7.6
49.0
66.1
77.7
98.4
8.9 1.9 17.0 51.4 42.8 69.9 88.5 107.0 125.5 142.9
98.4
85.1
71.8
53.0
3.2
142.8 136.3 127.6 107.5
87.6 77.2 59.1 47.2 27.7
8.9 1.9
10.2
87.6
83.8
41.0
87.6
0.0
0.0
146.1
101.6
3.2
Power Flexible
DC Power
EIDE
JTAG
PC/104
USB x 2
COM 2
RS-232/422/485
COM1
RS-485
USB LAN PS/2
KB/Mouse
VGA
LVDS
Reset
Display Type
Selection
LCD Connector
PCI-104
COM 8
MINI-PCI
Power Connector
Parallel Port
GPIO
COM 3
COM 4 FDD
COM 5
COM 6
COM 7
Compact Flash Type I/II
