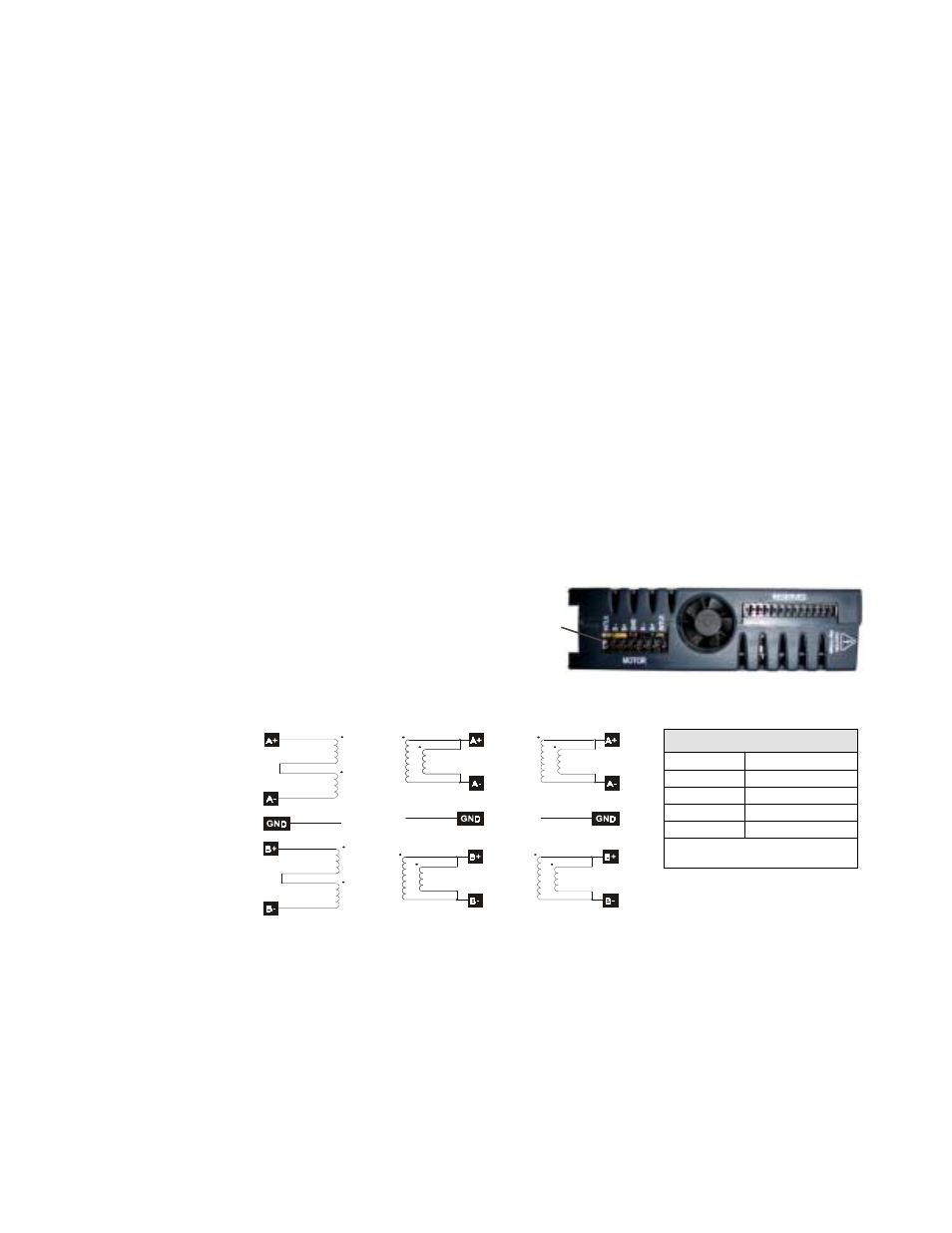

Chapter 3 - Connecting and Installing Your Impulse

3-3

A. Connecting a Motor to the Impulse

Connecting an IDC Motor

The A+, A-, B+, and B- phase outputs power the motor windings.

Connect motor wires to the motor connector (supplied) and plug the wired connector into the drive.
Drawings below provide color codes for IDC motors.

GND is internally connected to the earth pin on the power connector. This provides a convenient
terminal for grounding the motor frame and a motor cable shield. Note: If the motor is mounted on
a machine that is grounded, do not connect the motor to GND.

The two INTLK pins must be jumpered together on the motor connector to allow power to the
motor.

CAUTION! Do not remove the motor connector from the Impulse drive while power is
applied.
Removing the connector while power is applied could damage the connector pins.

Do not extend the interlock jumper wire to provide protection for another connector interface. The
interlock circuit is susceptible to trips caused by noise-pickup in cables (20 kHz switching).

Note: This is a high-impedance safety-interlock circuit. If the interlock wire breaks, or the connector
is removed, the current to the motor is immediately stopped, the drive faults (latches) and the LED
on the front panel of the Impulse will flash five times (see LED Diagnostics on p. 3-8).

Connecting a Non-IDC Motor

One of the Impulse drive’s more advanced features, Open Loop Stall Detect

TM

, is guaranteed only

when matched with one of IDC’s S or P-series motors.

IDC’s S and P series motors have custom windings to provide optimum dynamic performance with
the Impulse. If you use another manufacturer’s motor, refer to Non-IDC Motors in Chapter 6,
Hardware Reference, for more information.

IDC Motor Wiring/Color Codes

Quick Disconnect Cable Wire Color

A+

Red

A-

Red/Yellow

*GND

Green

B+

Red/White

B-

Red/Black

*Gray-colored Quick Disc. cables are
shielded - connect shield to GND.

P31/32/33

S12/21/23/32/33

P21/22, S21/23

YELLOW

WHT/RED

RED

WHT/YEL

SHIELD

BLACK

WHT/ORG

ORANGE

WHT/BLK

YELLOW

WHT/RED

RED

WHT/YEL

BLACK

WHT/ORG

ORANGE

WHT/BLK

GREEN/YEL

YELLOW

WHT/YEL

WHT/RED

RED

SHIELD

BLACK

WHT/BLK

WHT/ORG

ORANGE

Series

Parallel

Parallel

Motor
Connector
