Chapter 3 - Connecting and Installing Your Impulse
3-9
F. Connecting Inputs and Outputs
Connect your inputs and outputs to IDC’s 961/962 Indexer according to the information below.
Schematics for Impulse I/O circuits can be found in Chapter 6, Hardware Reference
Application Notes
1.
On 961/2, ensure that Step/Direction and Differential Jumpers are installed (see 961/2 manual).
2.
If using IDC P/N SS-I/O or SS-I/O-6 cable, cut one end of the cable if necessary (see table
below for SS-I/O cable color-code). If making your own cable, or using a non-IDC indexer,

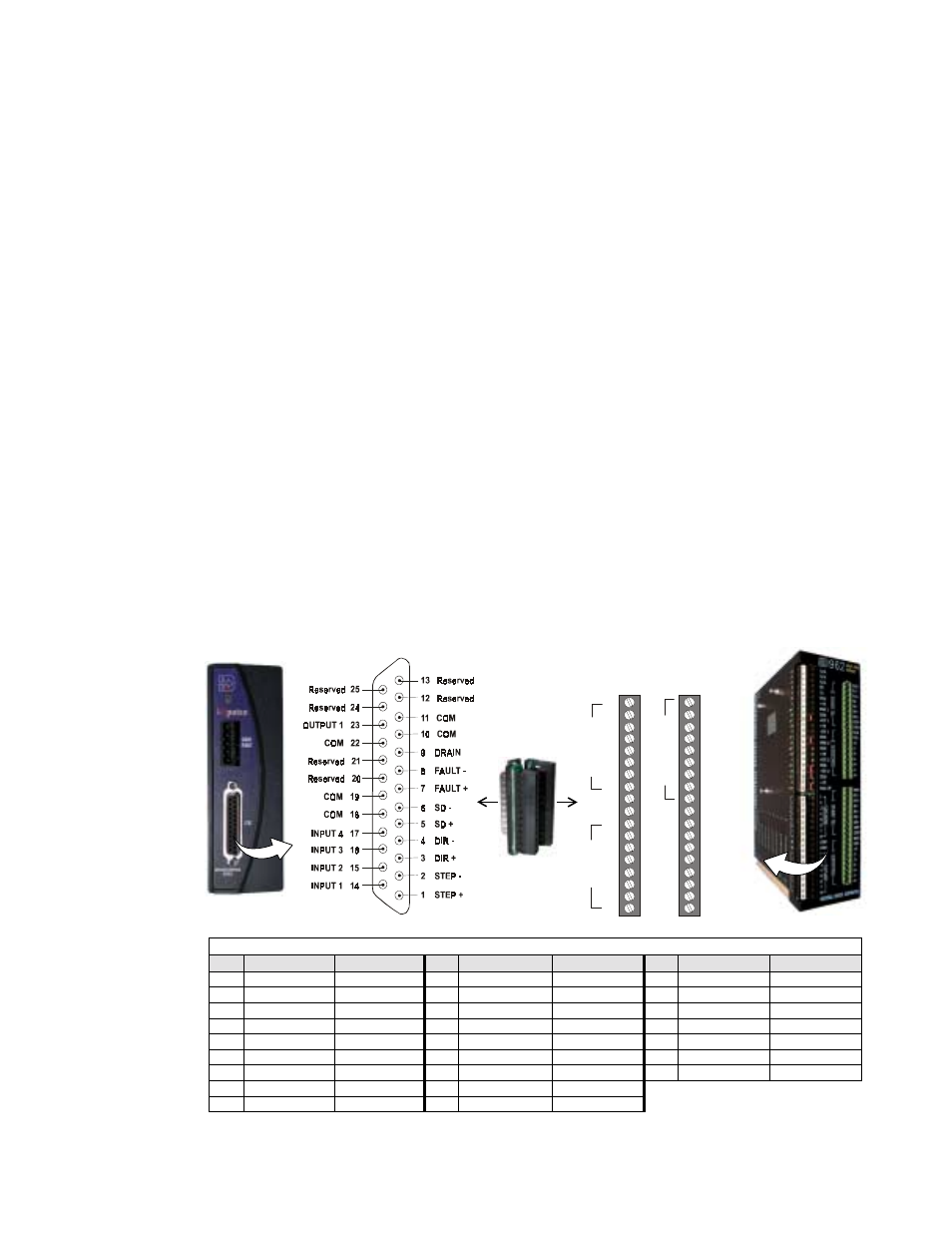

refer to the Impulse I/O Schematics (Chap. 6) and the 25-pin Connector drawing below.
3.
Use a shielded cable, and connect the shield only at the Impulse. Connect shield to pin 9.
4.
IDC offers a 25-pin screw-terminal breakout board (shown below) to add convenience and
flexibility to your application. Terminals on the breakout board match the pins of the 25-pin
connector on the Impulse.
5.
When wiring TTL signals to other manufacturer’s indexers, the Step TTL command signals
from the controller should be wired to Step +, the Direction signal to Dir +, and the Shutdown
signal to SD + (Step -, Dir -, and SD - should not be connected). Remember, the drive common
must be connected to the controller common.
6.
Activating the Shutdown input disables the drive amplifier and de-energizes the motor. When
this input is OFF the drive is enabled and the motor is energized. The polarity of this input is
configurable.
7.
The open-collector Fault Output turns ON (Active High) when any one of the LED-indicated
conditions occur (see Section E, LED Diagnostic Indicators). The output stays ON while the
LED flashes.
IDC Indexer
(962 Dual-Axis Shown)
Breakout
Board
P/N DB25BO
T
O
D
R
IV
E
1
SHLD
FLT-
FLT+
SD-
SD+
DIR-
DIR+
STEP-
STEP+
SHLD
COM
+5
Z-
Z+
B-
B+
A-
A+
1
2
3
4
5
6
7
8
COM
COM
1
2
3
4
5
6
7
8
O
U
T
P
U
T
S
IN
P
U
T
S
IDC Cable P/N: SS-IO/SS-IO-6
Pin
Impulse Signal
Wire Color
Pin
Impulse Signal
Wire Color
Pin
Impulse Signal
Wire Color
1
STEP +
Brown
10
COM
Gray
19
COM
Black/White
2
STEP -
Red
11
COM
White
20
Reserved
Red/Black
3
DIR +
Orange
12
Reserved
Black
21
Reserved
Orange/Black
4
DIR -
Pink
13
Reserved
Brown/White
22
COM
Yellow/Black
5
SD +
Yellow
14
INPUT 1
Red/White
23
Output 1
Green/Black
6
SD -
Green
15
INPUT 2
Orange/White
24
Reserved
Gray/Black
7
FAULT +
Light Green
16
INPUT 3
Green/White
25
Reserved
Pink/Black
8
FAULT -
Blue
17
INPUT 4
Blue/White
Note: Cable SHIELD is internally connected to the
DB25 metal housing.
9
Drain
Violet
18
COM
Violet/White
