Removing and installing a pci riser connector – Gateway 9415 User Manual
Page 76
71
www.gateway.com
6

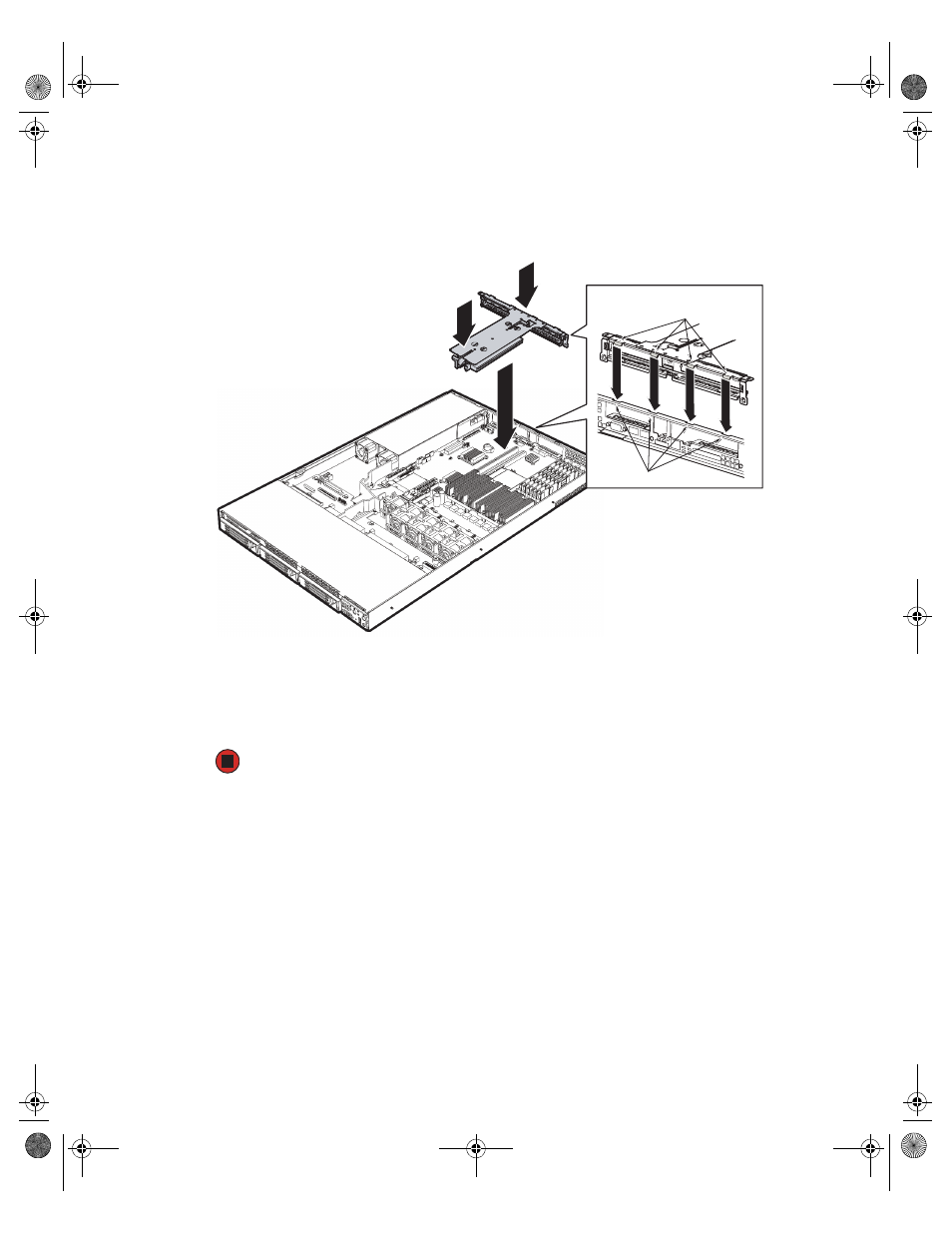

Position the PCI riser assembly over the PCI sockets on the server board, lining up
the four hooks at the back of the riser assembly with the four slots in the back of the
chassis.
7
Press the PCI riser assembly into the PCI sockets.
8
Follow the instructions in
“Closing the server case” on page 44
.
9
See the card’s documentation for software installation instructions.
Removing and installing a PCI riser connector
Included with your server were two full-height PCI riser connectors, only one of which
can be used at a time:
■
A full-height PCI-Express riser with one PCI-Express x8 slot
■
A full-height PCI-X riser with one PCI-X slot
A full-height PCI riser connector can be replaced if it fails or if you require a different
option. The other slot is always a low-profile PCI-X riser.
