8.1.1.1 Replacing a hot-plug power supply unit

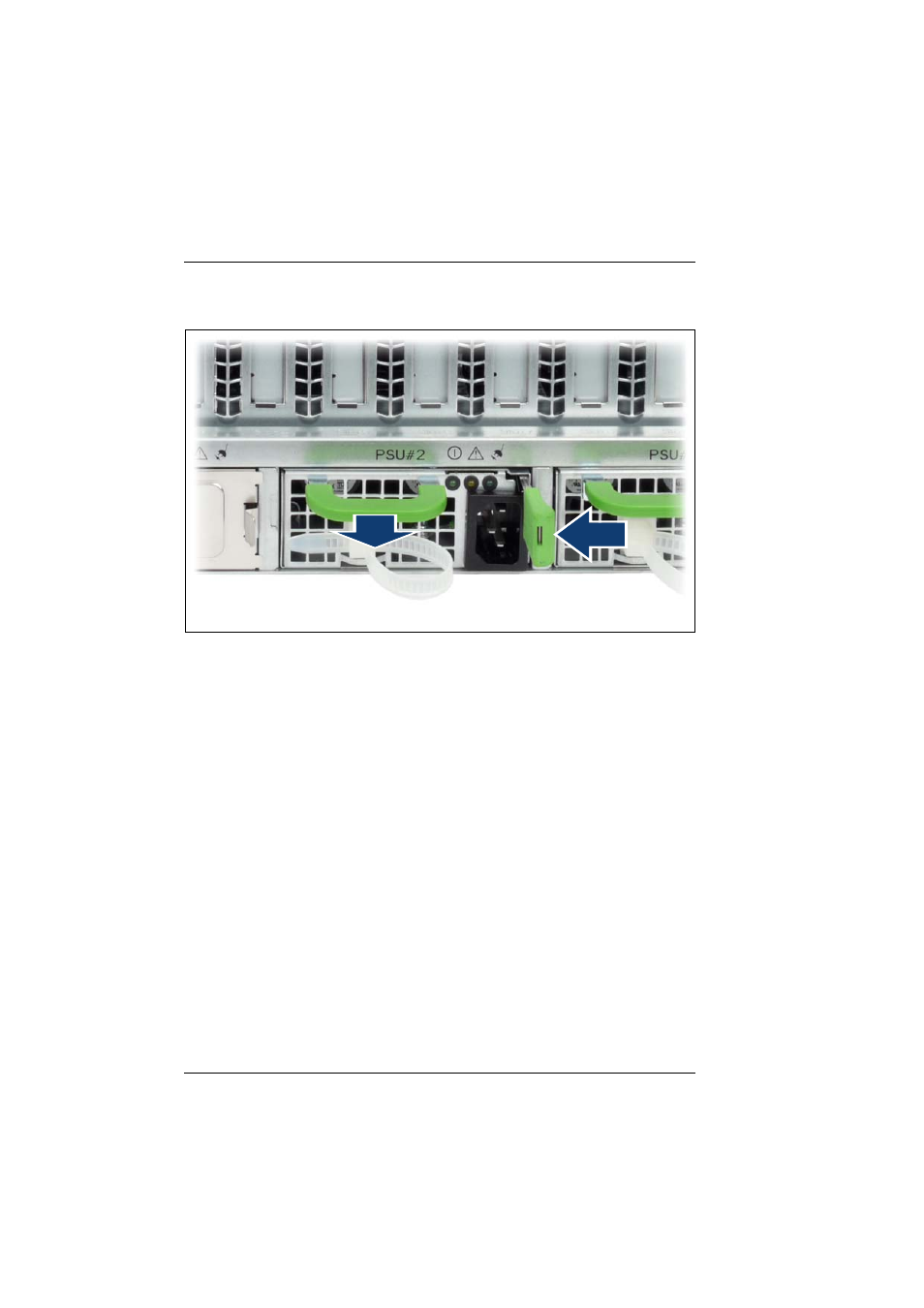

Figure 19: Unlocking and removing the power supply unit
V
CAUTION!
When replacing a non-defective hot-plug power supply unit in a non-
redundant configuration, the server must be switched off first.
Ê Remove the power cord from the cable clamp. You can losen the cable
clamp by opening the small locking lever.
Ê Remove the power cord from the installed power supply unit.
Ê Press the green release lever (1) and pull out the power supply unit in the
direction of the arrow (2). Grip the handle while pulling the power supply.
V
CAUTION!
Release your hands from lever (1) as soon as the power supply unit
has been pulled out a few centimeters.
Ê Completely remove the defective power supply unit from the slot.
V
CAUTION!
Never leave the slot for the power supply unit empty for more than two
minutes during operation. Otherwise, excessive temperatures could
damage system components.
