102 Operating Manual RX600 S5
Hot-plug components CSS components
©
c
ogn
it as
. G
e s e
lls
c h
ft f
ü r T
e
c h ni
k -D
o
k u m
e n
tat
ion m
b H
20
10
P
fa
d : C
:\ P
rogra
m
m
e \F
CT
\t im
_a
pp
\t im
_l
o
c a
l\ w
or
k \P
ICH
OL
\O
B
J _ D
O
K U
-4
8 9
1 -0
03
.f
m
8.1.3.1 HDD/SSD module and dummy module

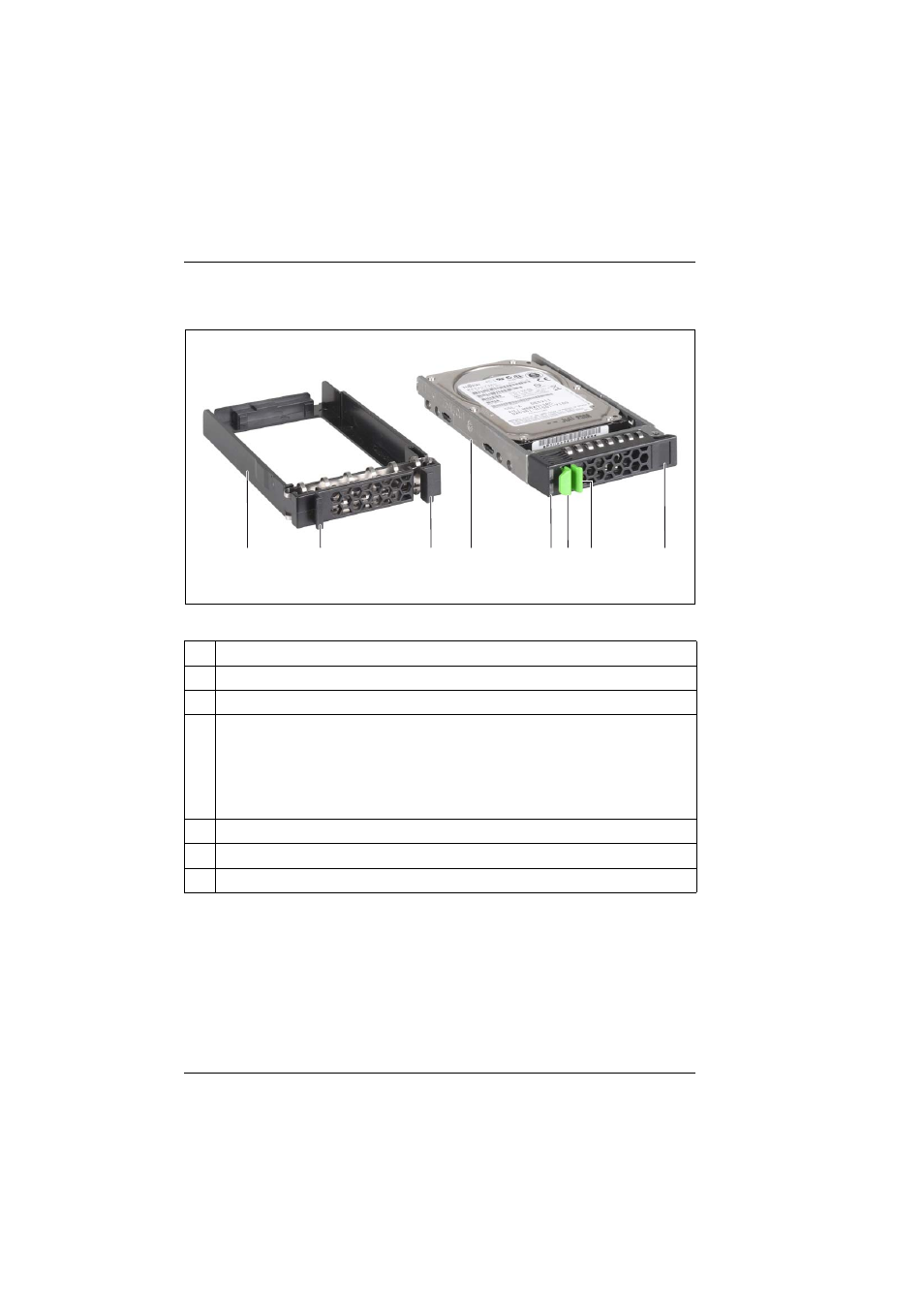

Figure 23: 2.5-inch HDD module and dummy module
1 Dummy module
2 Tabs for unlocking the dummy module
3 HDD module (installation frame with hard disk drive installed)
4 Indicators
HDD Busy (LED green)
HDD Fault (LED orange)
For description see section
"Indicators on the hot-plug HDD modules" on
page 68 .
5 Handle for locking and unlocking the HDD module
6 Button for locking and unlocking the handle
7 Ridge for applying a sticker with the current drive name and drive size
