5.1.2.3 Indicators on the connector panel (LAN indicators)

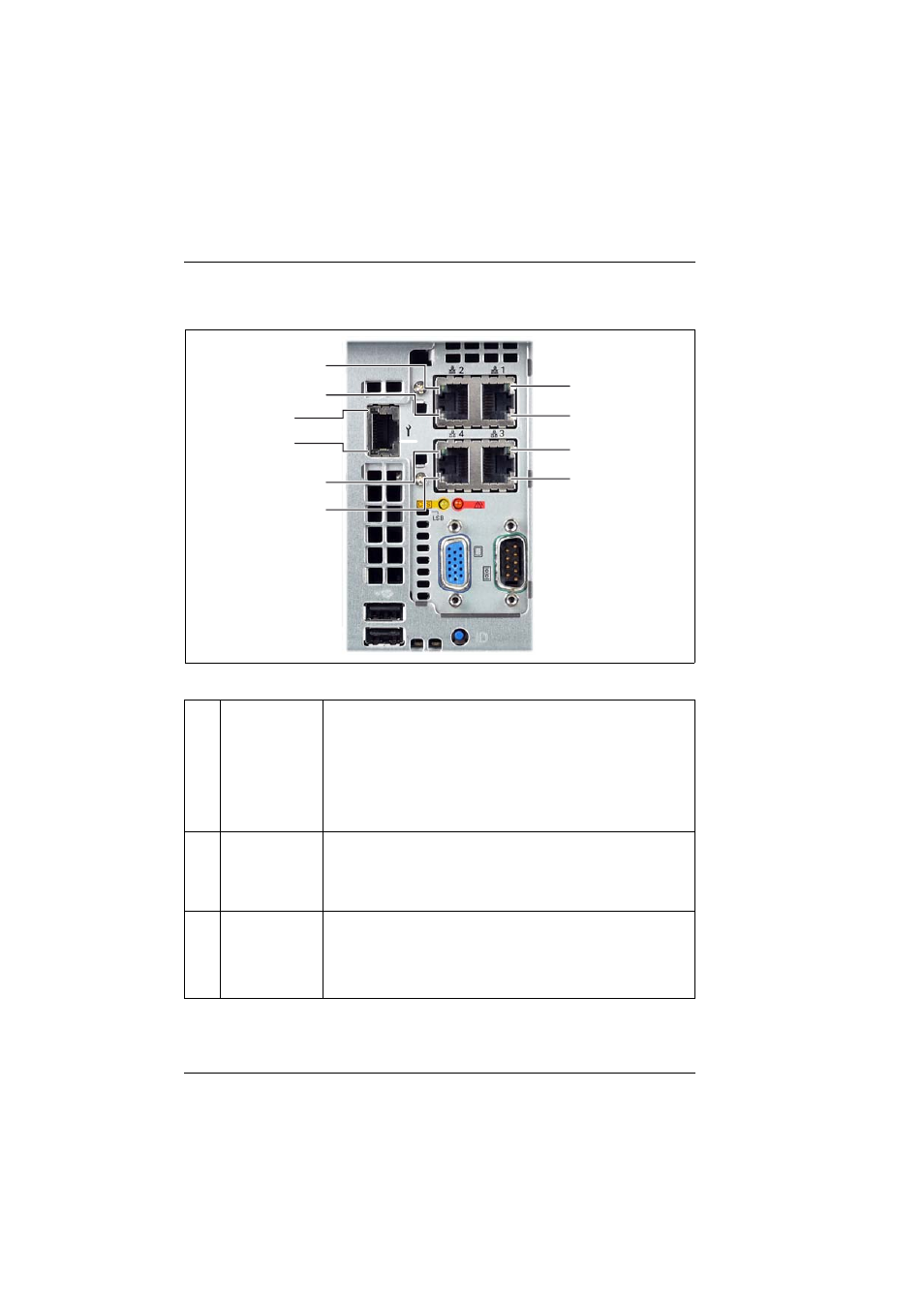

Figure 17: LAN indicators
1 LAN speed
(system LAN/
shared LAN) Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s.
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
2 LAN
link/transfer
(system LAN/
shared LAN) Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
3 LAN speed
(management
LAN) Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
