RX600 S5

Operating Manual

127

CSS components

Non-hot-plug components

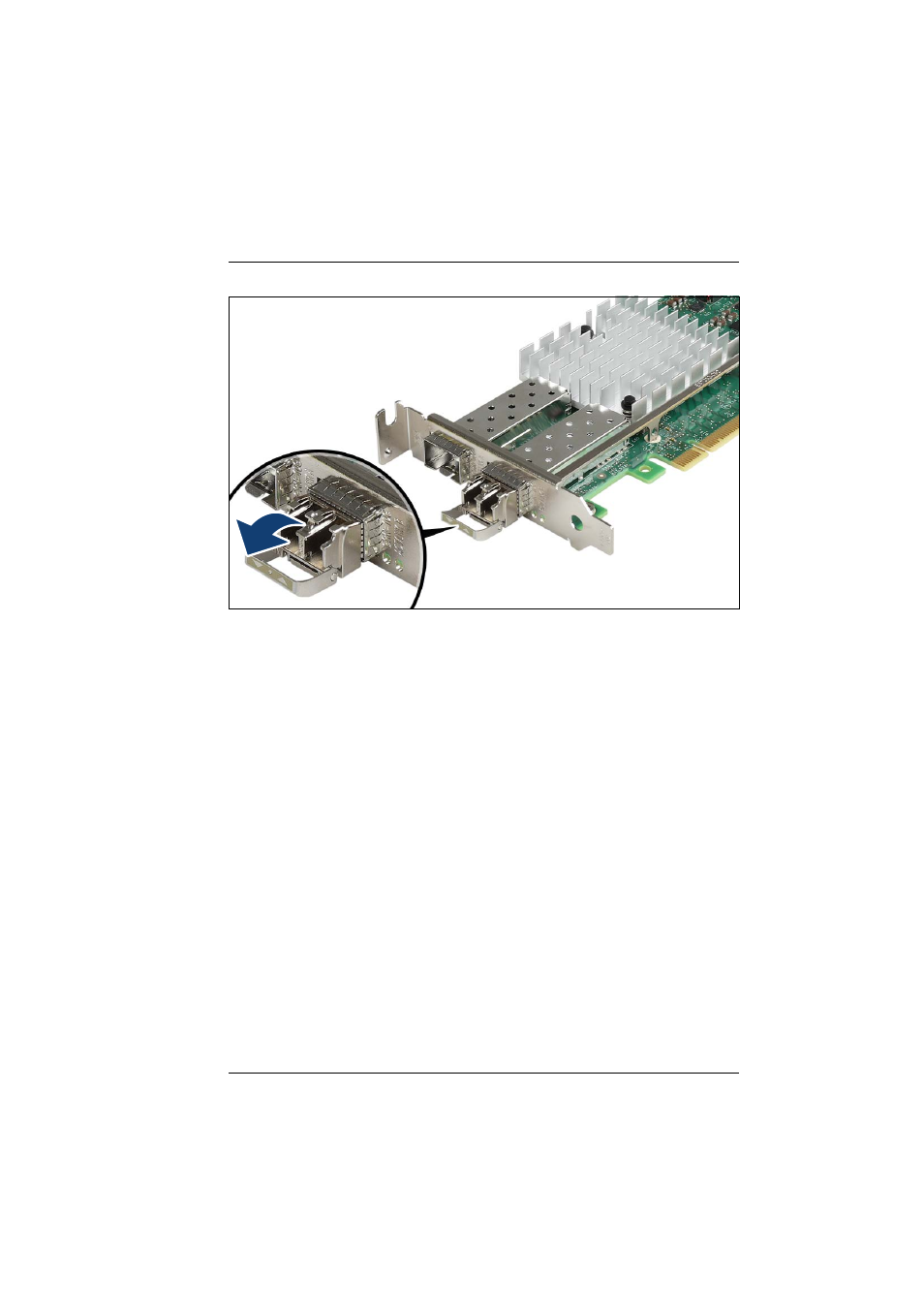

Figure 43: Unlatching the locking bail

Ê

Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
