Ê Press the ATTN button.
Ê Wait until the ATTN LED is turned off.
Ê Close the server as described in "Closing the server" on page 136 .
8.1.5.6 Adding a memory board
To add memory boards during operation, proceed as follows:
Ê Open the server (see "Opening the server" on page 134 ).
Ê Remove the air baffle of the respective memory board slot.

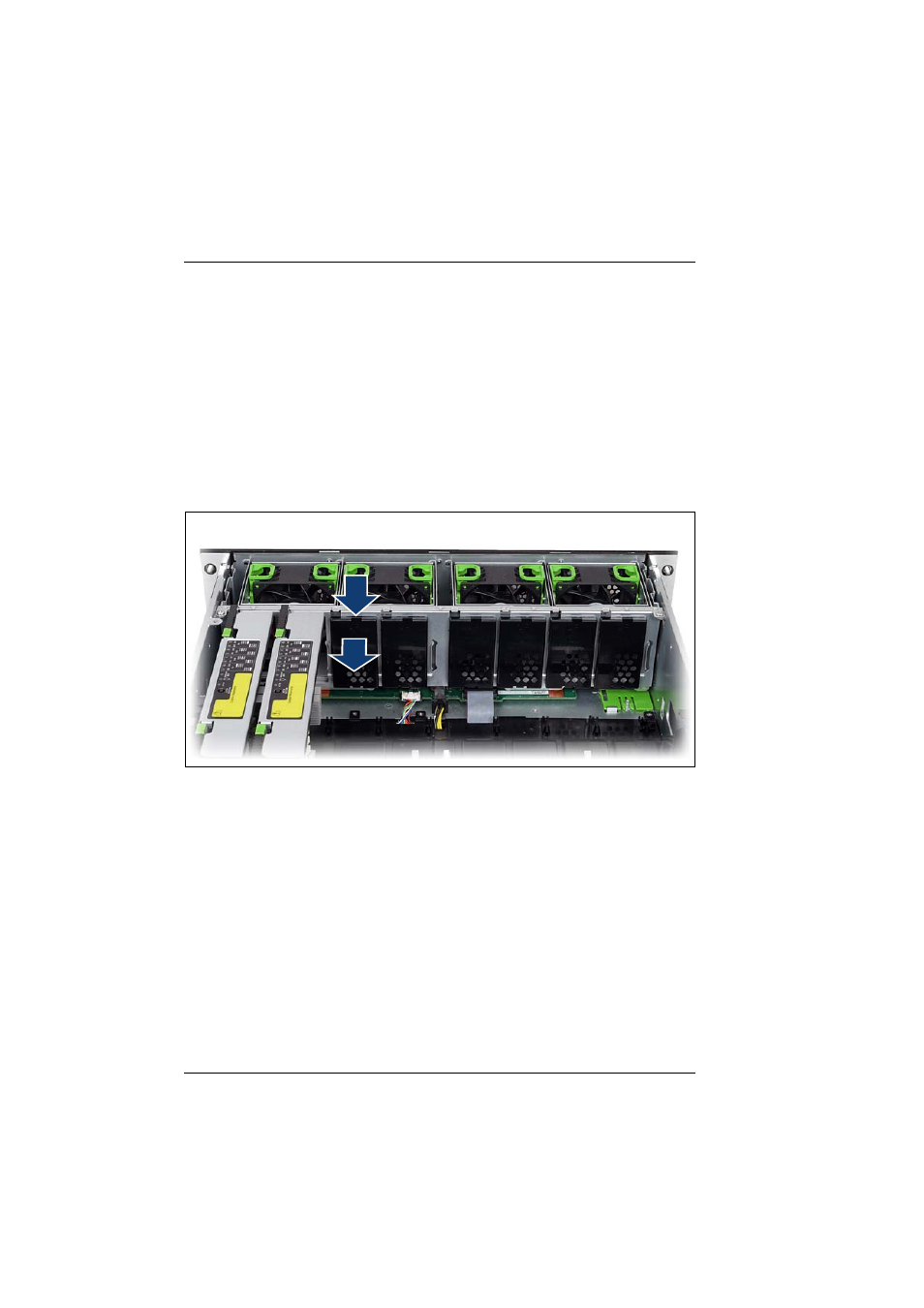

Figure 38: Removing the memory air baffle to add a memory board
Ê Press on the top of the memory air baffle (1), move it in the direction of the
arrow (2) and out of the housing.
I
Keep the memory air baffle for future use.
Ê Install the equipped memory board into the respective slot.
I
Memory boards that you insert must suit the fitting rules and the
appropriate configuration. See the Technical Manual for details.
Ê Press the ATTN button.
Ê Wait until the ATTN LED is turned off.
Ê Close the server as described in "Closing the server" on page 136 .
/
