RX600 S5
Operating Manual
59
Hardware installation
Connecting the server to the mains

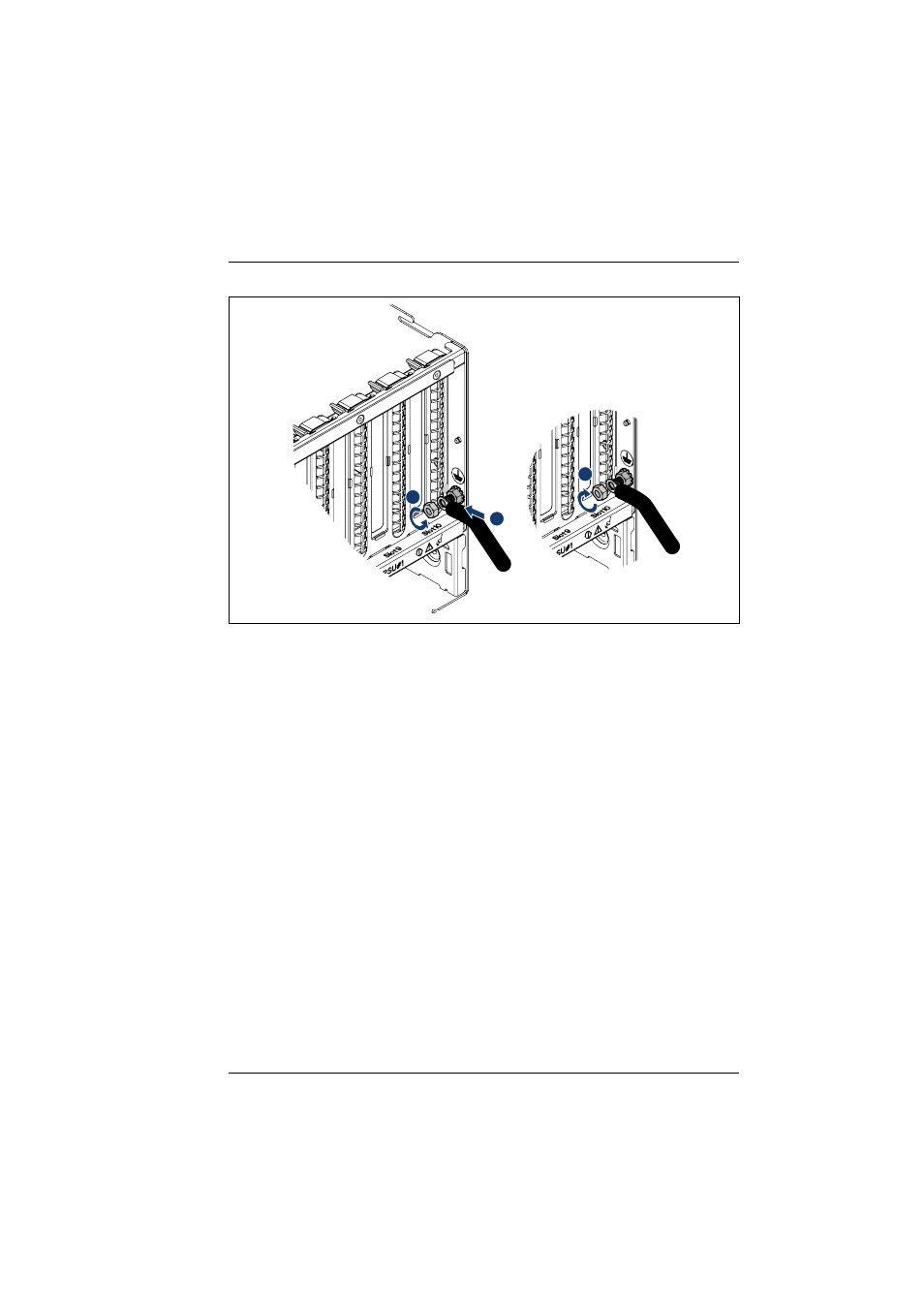

Figure 10: Installing a protective earth conductor
Ê
Loosen the first nut and remove it (1).
Ê
Plug the protective earth conductor onto the bolt (2).
Ê
Replace the nut and tighten it (3).
photo shows installation of a protective earth conductor
1
2
3
