130 Operating Manual RX600 S5
Non-hot-plug components CSS components
©
c
ogn
it as
. G
e s e
lls
c h
ft f
ü r T
e
c h ni
k -D
o
k u m
e n
tat
ion m
b H
20
10
P
fa
d : C
:\ P
rogra
m
m
e \F
CT
\t im
_a
pp
\t im
_l
o
c a
l\ w
or
k \P
ICH
OL
\O
B
J _ D
O
K U
-4
8 9
1 -0
03
.f
m

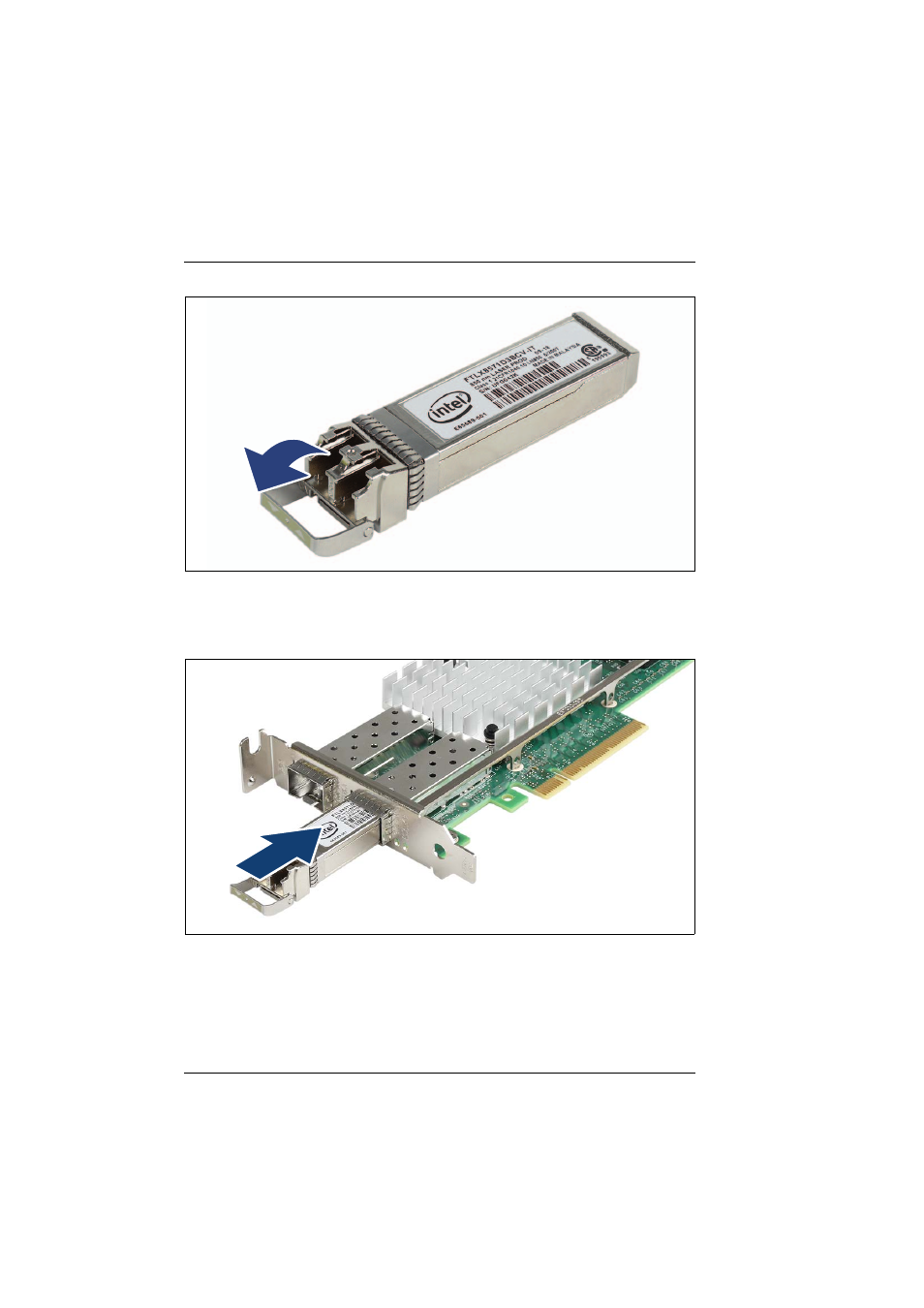

Figure 46: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module.
Figure 47: Inserting the SFP+ transreiver
Ê Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I
If only one slot is equipped with a SFP+ transceiver module, use the
primary right connector as shown.
