RX600 S5 Operating Manual 47
Hardware installation Rack installation/removal of server
Fitting the support bracket
When mounting the left support system in the corresponding rack, the supplied
support bracket must first be mounted flush with the underside of the device on
the rear left support upright.

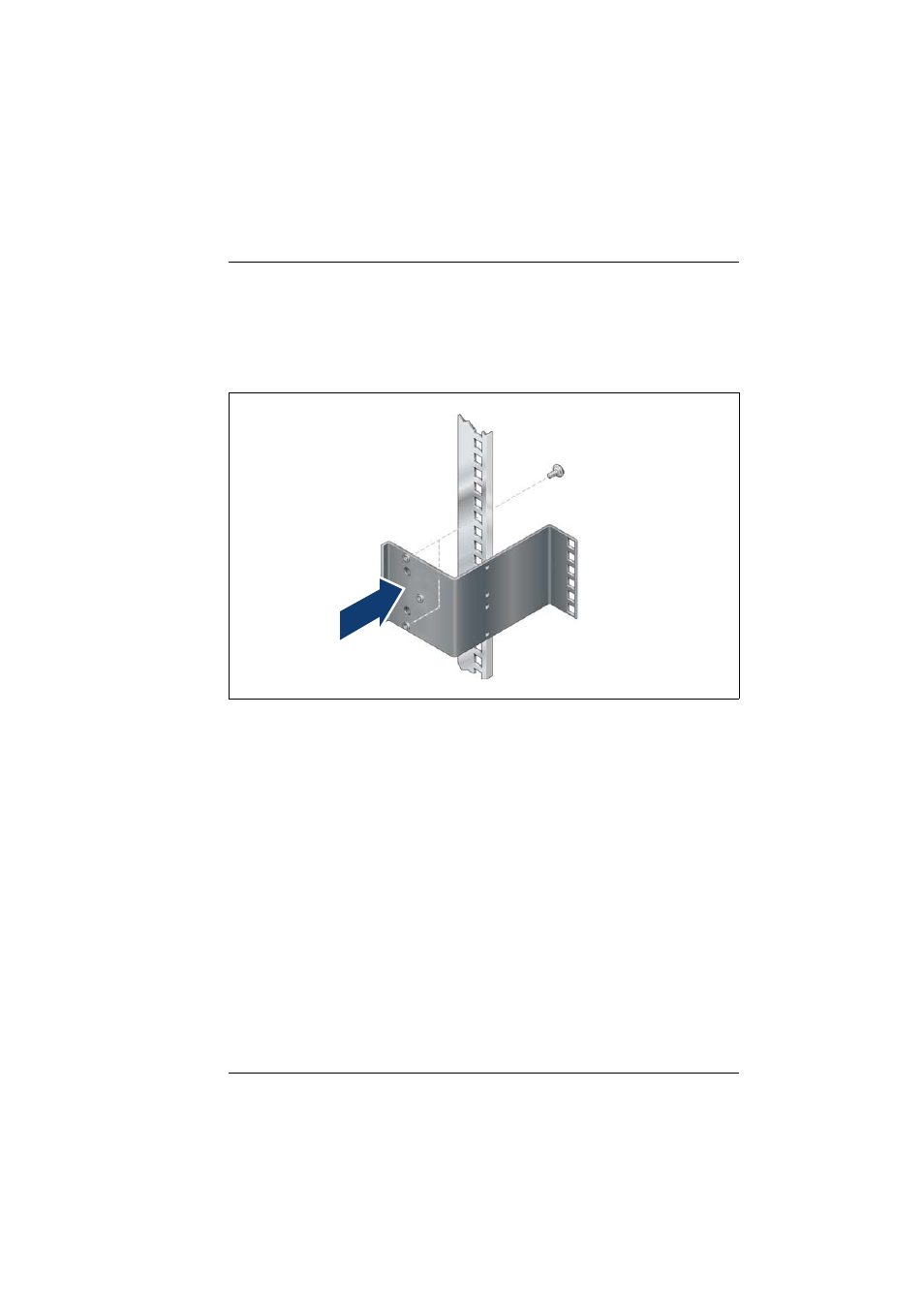

Figure 3: Fitting the support bracket
Ê Position the support bracket at the corresponding height on the rear left
support upright, (place knob in the corresponding hole) (1) and secure it with
the two supplied M5 centering fixtures (2).
2
1
