CSS components Hot-plug components
Ê Take the retaining plate out and put it aside.
I
Keep the retaining plate for future use.
Ê Push the engaging hooks down until they disengage from the removal tool
(see
figure 30 on page 111 ), and keep them in a safe place.
8.1.4.4 Installing a hot-plug expansion card
Inserting an expansion card in the removal tool

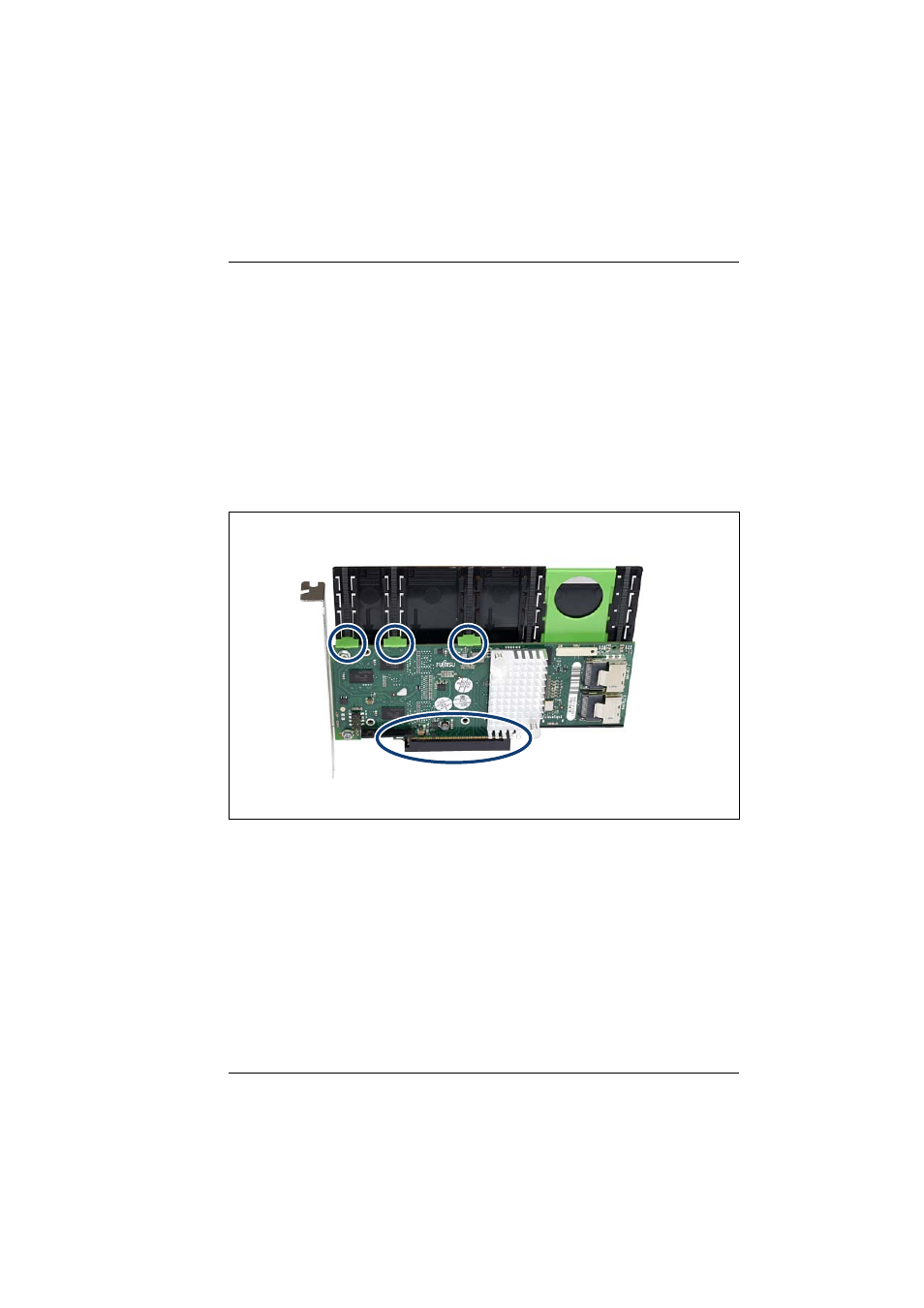

Figure 32: Inserting the new expansion card in the removal tool
Ê Insert the new expansion card in the provided slot (see oval in figure above)
of the removal tool.
Ê Insert the green engaging hooks (see circles in figure 32 on page 113 ) in the
rods and push them down until they engage in the upper edge of the
expansion card.
V
CAUTION!
Make sure that e.g. the ports on the expansion card are not blocked
by the engaging hooks.
