8.1.4.3 Removing a dummy module
If a slot does not contain an expansion card, it is occupied by a dummy module.
This is a retaining plate with an attached removal tool.
Before inserting an additional hot-plug expansion card, you will first have to
remove the dummy module from its slot.
Ê Open the server (see "Opening/Closing the server" on page 134 ).
Ê Remove the dummy module in the same way as a PCI board (see figure 29
on page 110 ).
Removing the retaining plate from the removal tool
V
CAUTION!
When removing the retraining plate from the removal tool, pay particular
attention to the engaging hooks that fasten it to the removal tool. Never
lift the engaging hooks by more than approx. 1 mm, in other words only
as far until the retaining plate is released. Otherwise you could damage
the engaging hooks.

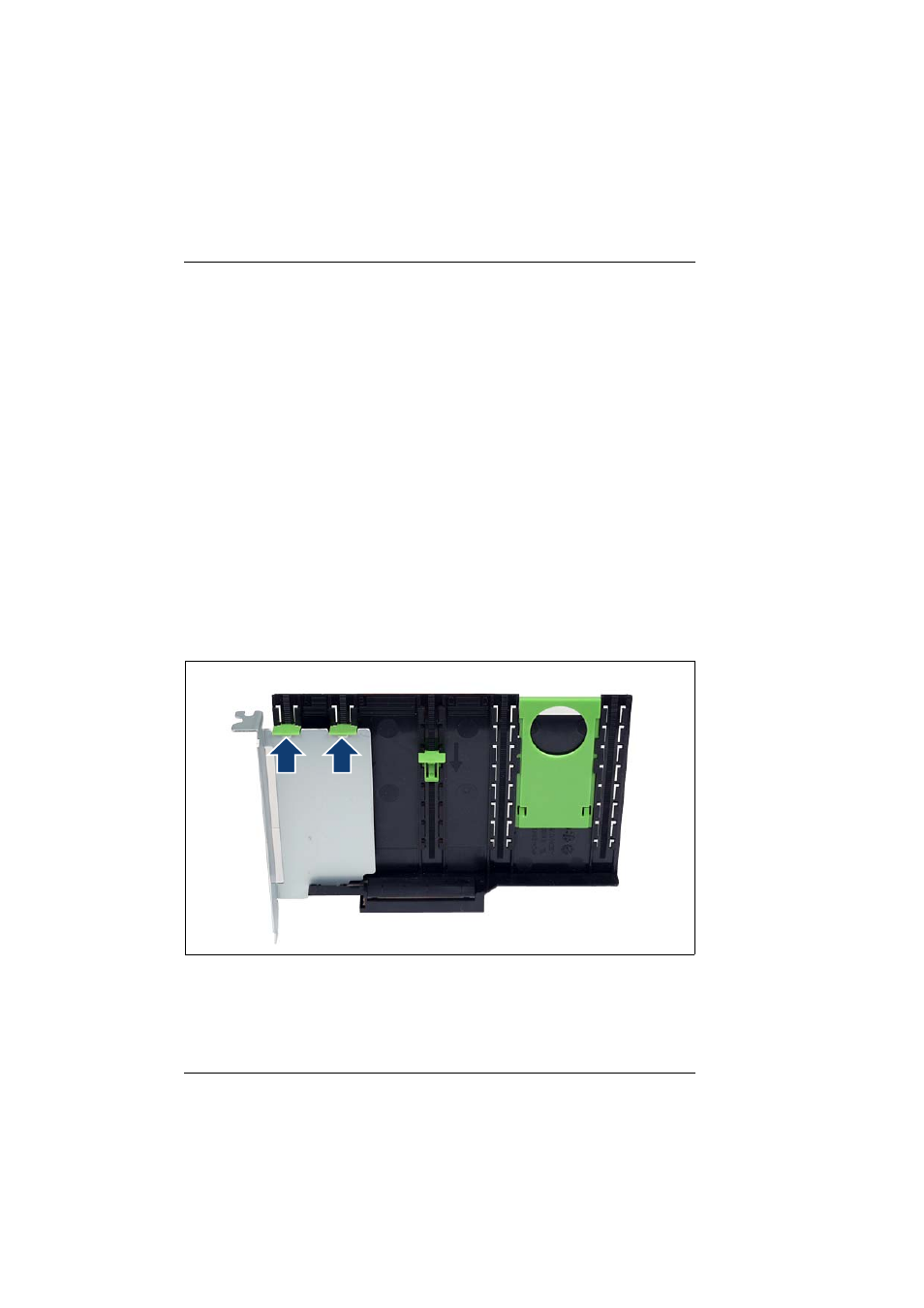

Figure 31: Removing the retaining plate from the removal tool
Ê Lift the green engaging hooks (see arrows) no more than approx. 1 mm
until the retaining plate is released.
