Installing a new memory module, Reinstalling the memory board in question – FUJITSU PRIMERGY RX600 S5 User Manual
Page 119

RX600 S5
Operating Manual
119
CSS components
Hot-plug components
8.1.5.4
Installing a new memory module
V
CAUTION!
Observe the safety information concerning memory modules in
"Removing a defective memory module" on page 117
.

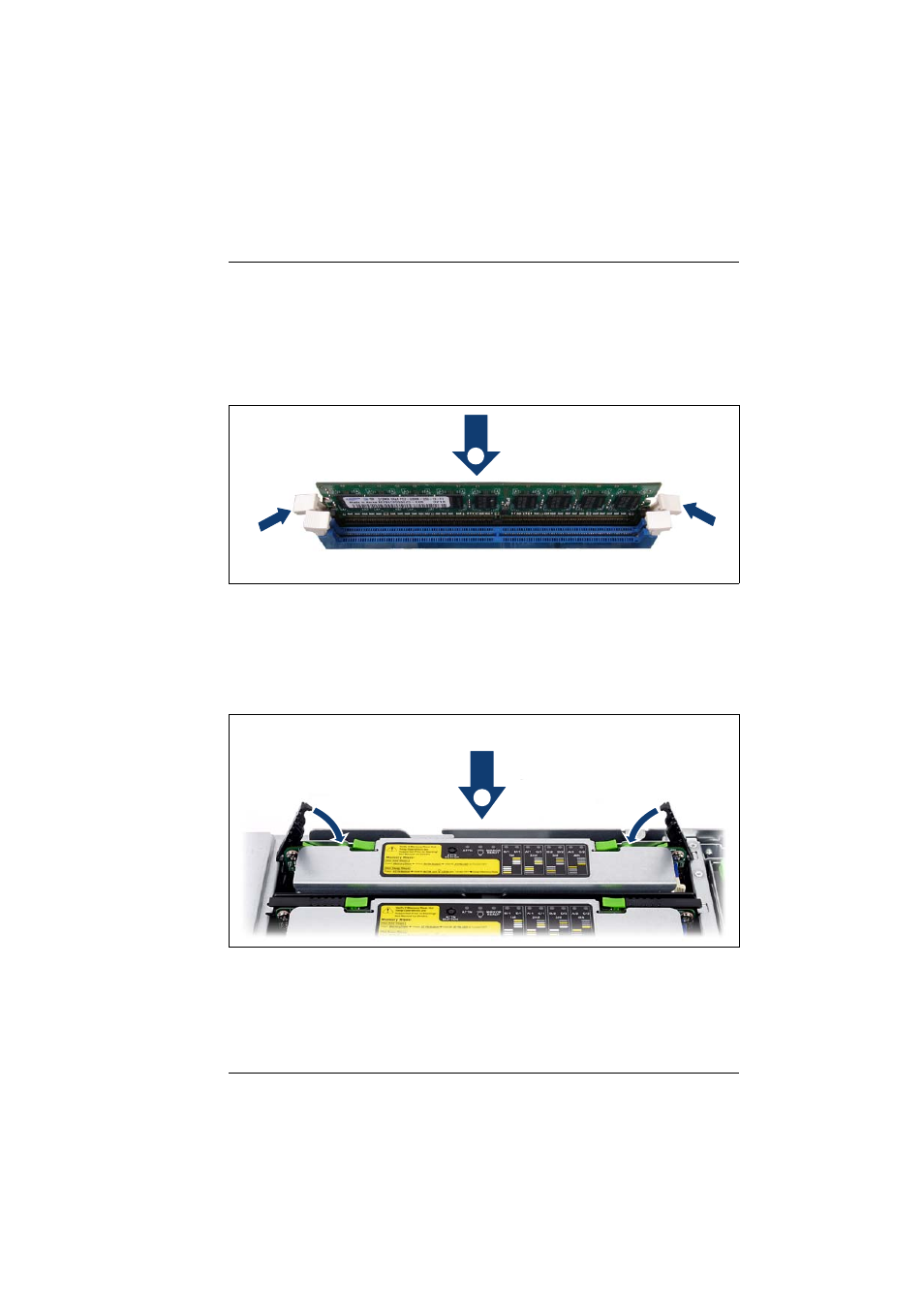

Figure 36: Installing a memory module
Ê
Carefully press the memory module into the slot (1) until the fastening tabs
on both sides of it engage (2).
8.1.5.5
Reinstalling the memory board in question
Figure 37: Installing a memory board
Ê
Slide the memory board down (1) in the lateral guide channels until it stops.
Swivel the levers in the direction of the arrows (2).
Ê
Make sure that the green locks on the top engage.
/
0
0
0
0
/
