RX600 S5 Operating Manual 63
5 Starting up and operation
V
CAUTION!
Follow the safety instructions in chapter "Important information" on
page 27 .
5.1 Control elements and indicators
5.1.1 Front of server

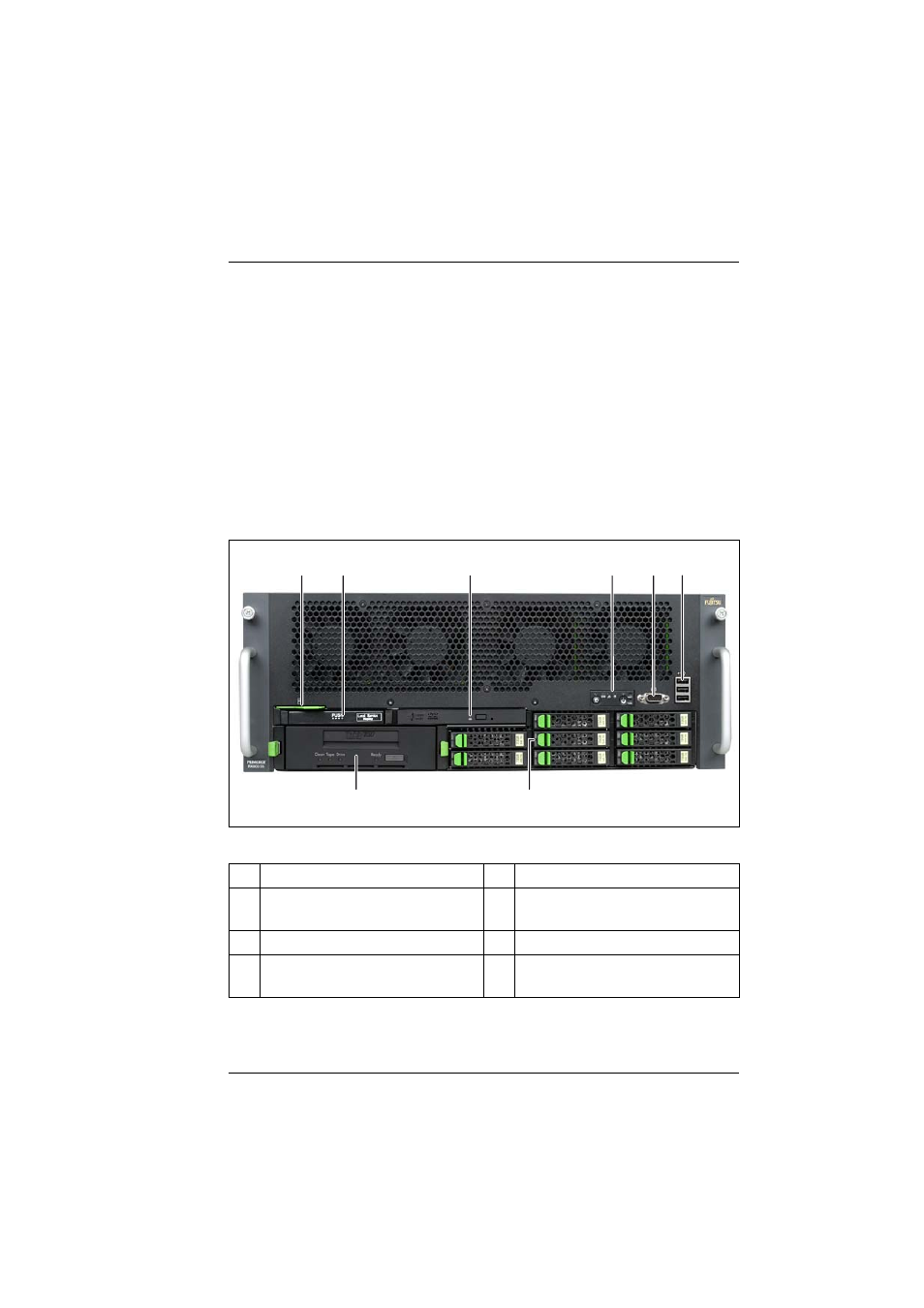

Figure 12: Front - overall view
The white numbers in figure 12 show the HDD slot assignment.
1 ID card 5 Video connector
2 ServerView Local Service
Display 6 3x USB connector
3 Optical drive activity indicator 7 Hard disk indicators
4 Control panel (for details see
page 64 )
8 Tape (optional)
/ 0 1 2 3 4
5 6
#0
#1
#2 #5
#4
#3
#6
#7
