RX600 S5

Operating Manual

135

CSS components

Opening/Closing the server

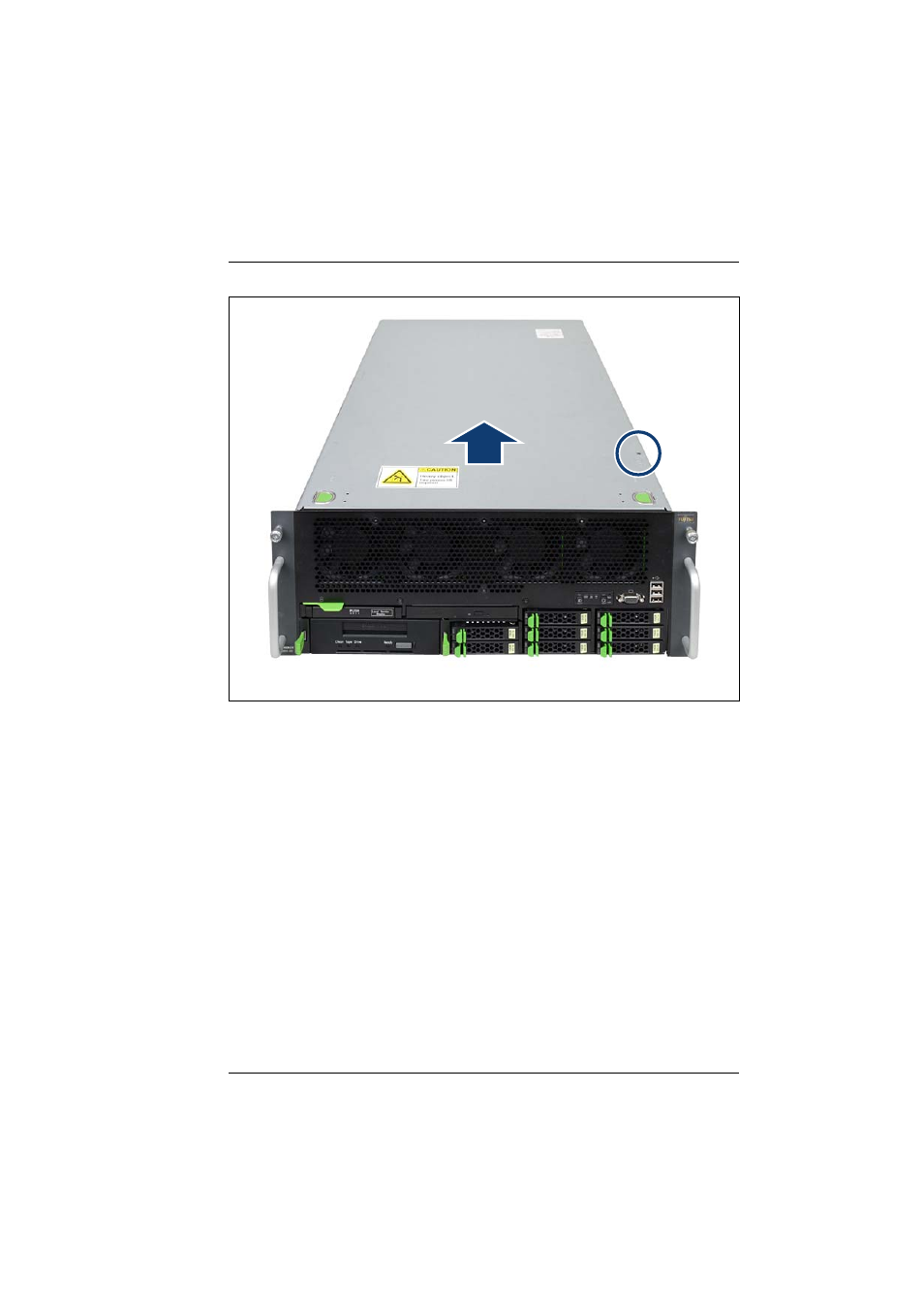

Figure 51: Opening the server

Ê

Loosen the little screw (see circle in figure above) and put it on a safe place.

Ê

Push the two green touchpoints on the cover and move the cover for
approximately 2 cm backwards.

Ê

Lift the cover upwards.
