4.4.2 Connecting the power cord
Ê Connect the power cord to the server power supply unit.
Ê Connect the mains plug to a grounded mains outlet in the in-house power
supply network or a power outlet of the socket strip in the rack (see Technical
Manual for the rack).
Ê Secure the power cords in the cable clamps so the insulated connectors
cannot be disconnected from the server accidentally.

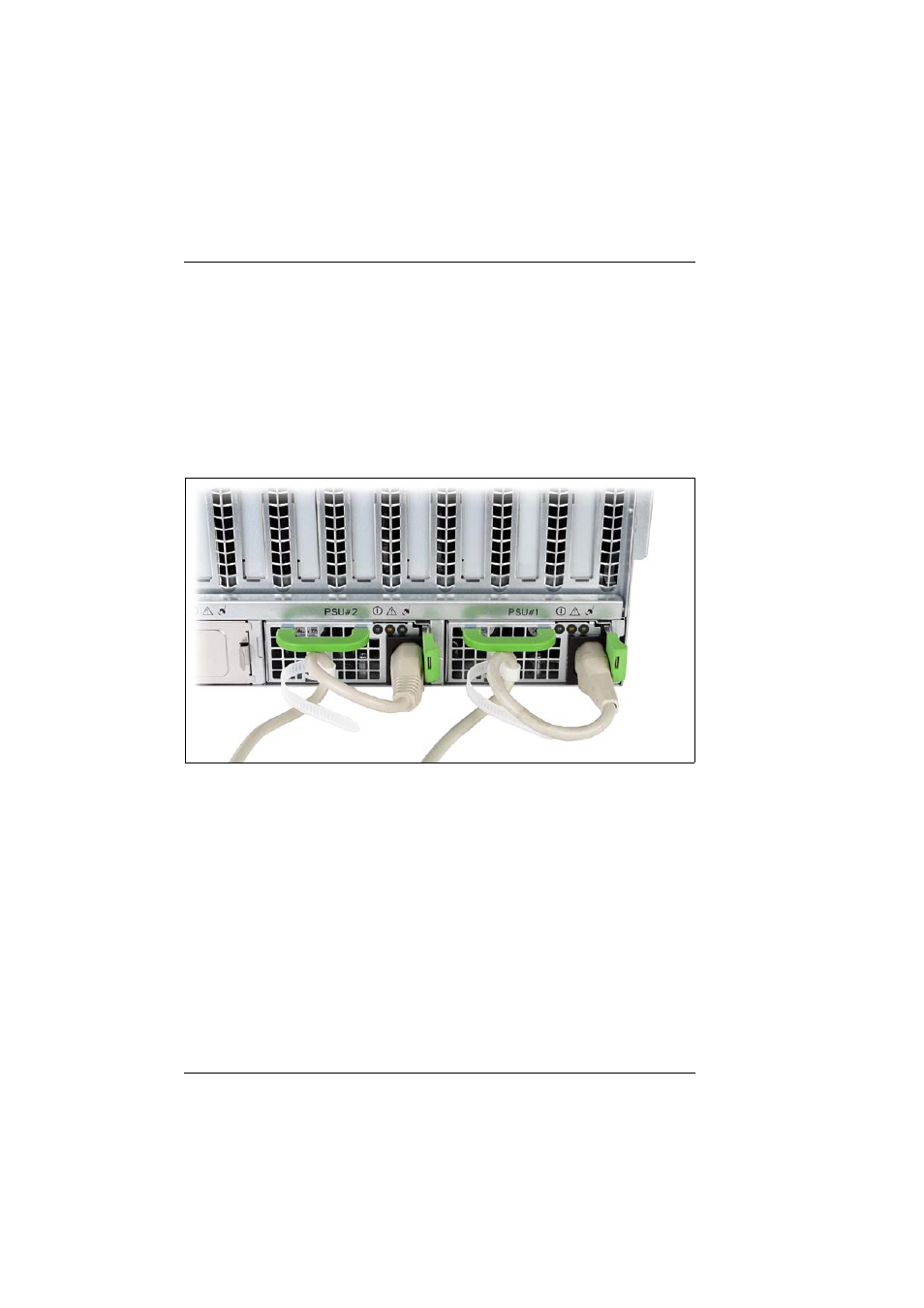

Figure 11: Cable clamps to secure the power cords
Ê Thread the cable through the cable clamp as shown in figure 11 .
Ê Pull the cable clamp tight to secure the power cord.
Now the insulated connector cannot be disconnected from the server
accidentally.
I
You can loosen the cable clamp by opening the small locking lever.
