CSS components Non-hot-plug components
Removing an expansion card from the removal tool
V
CAUTION!
When removing the expansion card from the removal tool, pay particular
attention to the engaging hooks that fasten the board to the removal tool
(see
figure 39 ). Do not lift them by more than approx. 1 mm, in other
words only as far until the expansion card is released. Otherwise you
could damage the engaging hooks.

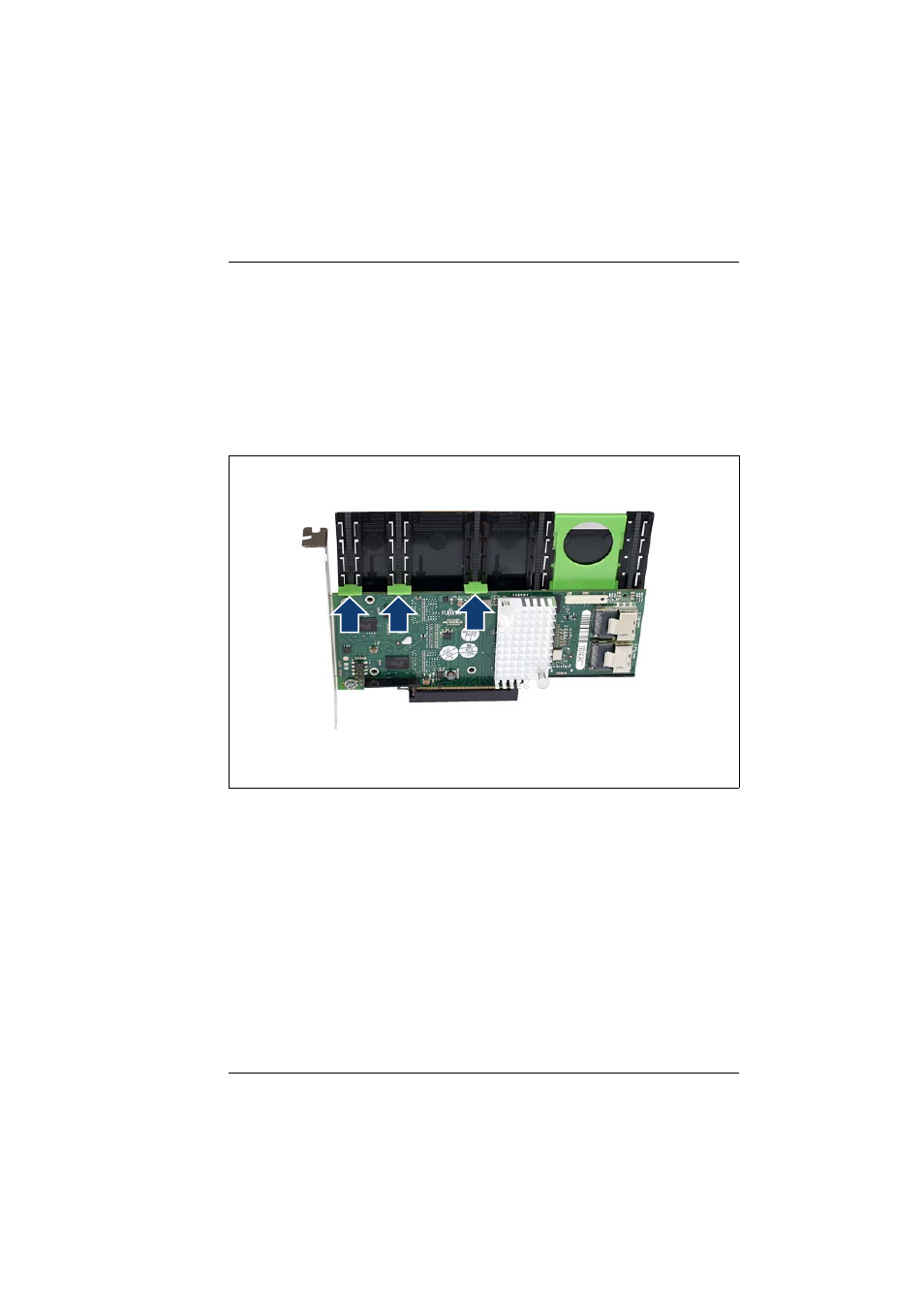

Figure 39: Removing the expansion card from the removal tool
Ê Lift the green movable engaging hooks (see arrow in figure above) no more
than approximately 1 mm until the expansion card is completely released.
Ê Take the expansion card out and put it aside.
