64 Operating Manual RX600 S5
Control elements and indicators Starting up and operation
©
c
ogn
it as
. G
e s e
lls
c h
ft f
ü r T
e
c h ni
k -D
o
k u m
e n
tat
ion m
b H
20
10
P
fa
d : C
:\ P
rogra
m
m
e \F
CT
\t im
_a
pp
\t im
_l
o
c a
l\ w
or
k \P
ICH
OL
\O
B
J _ D
O
K U
-4
8 8
8 -0
03
.f
m

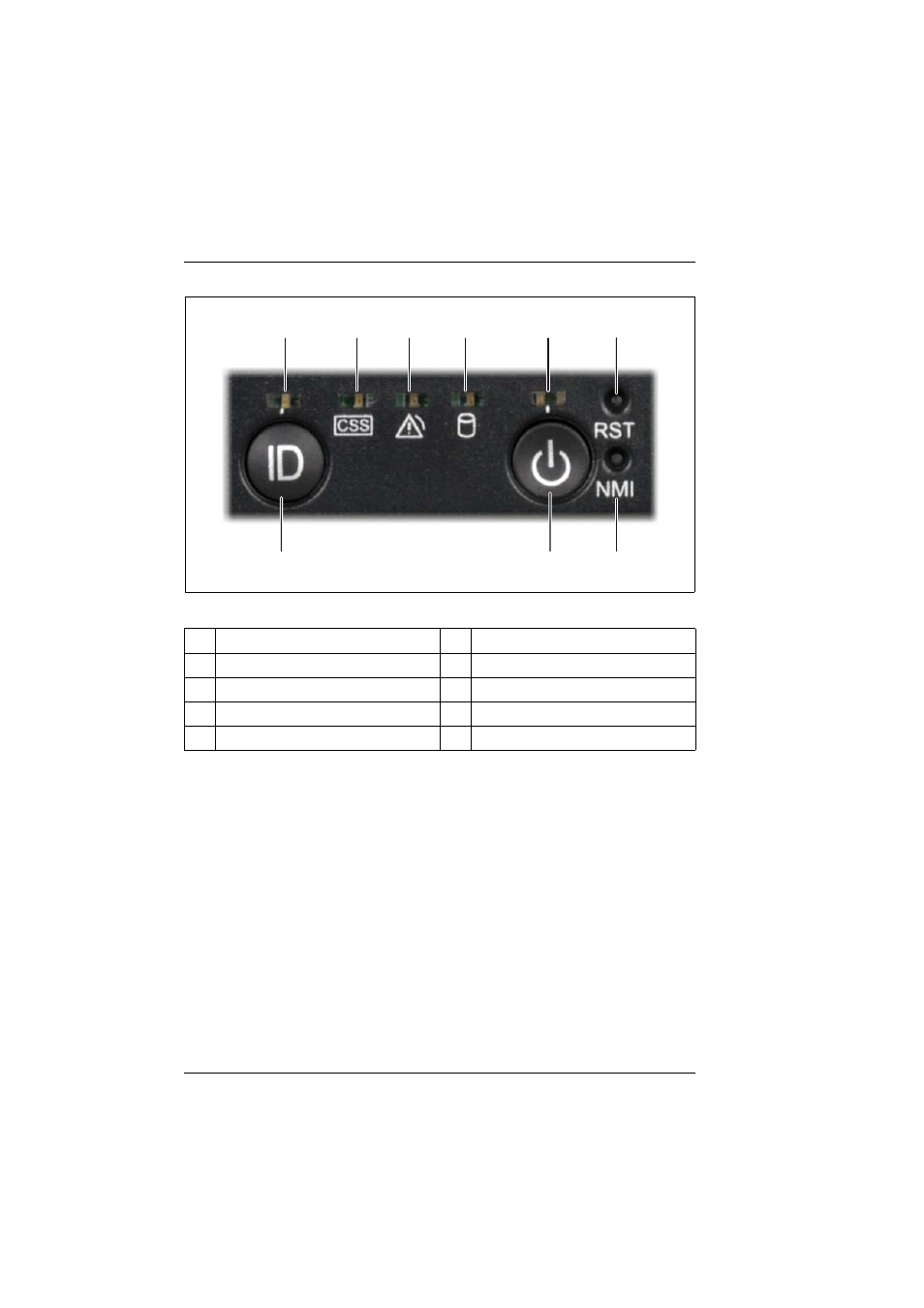

Figure 13: Front - detailed view: control panel
ID card
You can pull out the ID card (see figure 12 above) as far as it will go and push it
back in again.
The ID card contains various system information, such as product name, serial
number and order number; in the Japanese market only the product name and
the serial number.
1 ID indicator 6 Reset button
2 CSS indicator 7 NMI button
3 Global Error indicator 8 On/Off button
4 Hard disk activity indicator 9 ID button
5 Power-on indicator
