Identifying Connector Pinouts
175

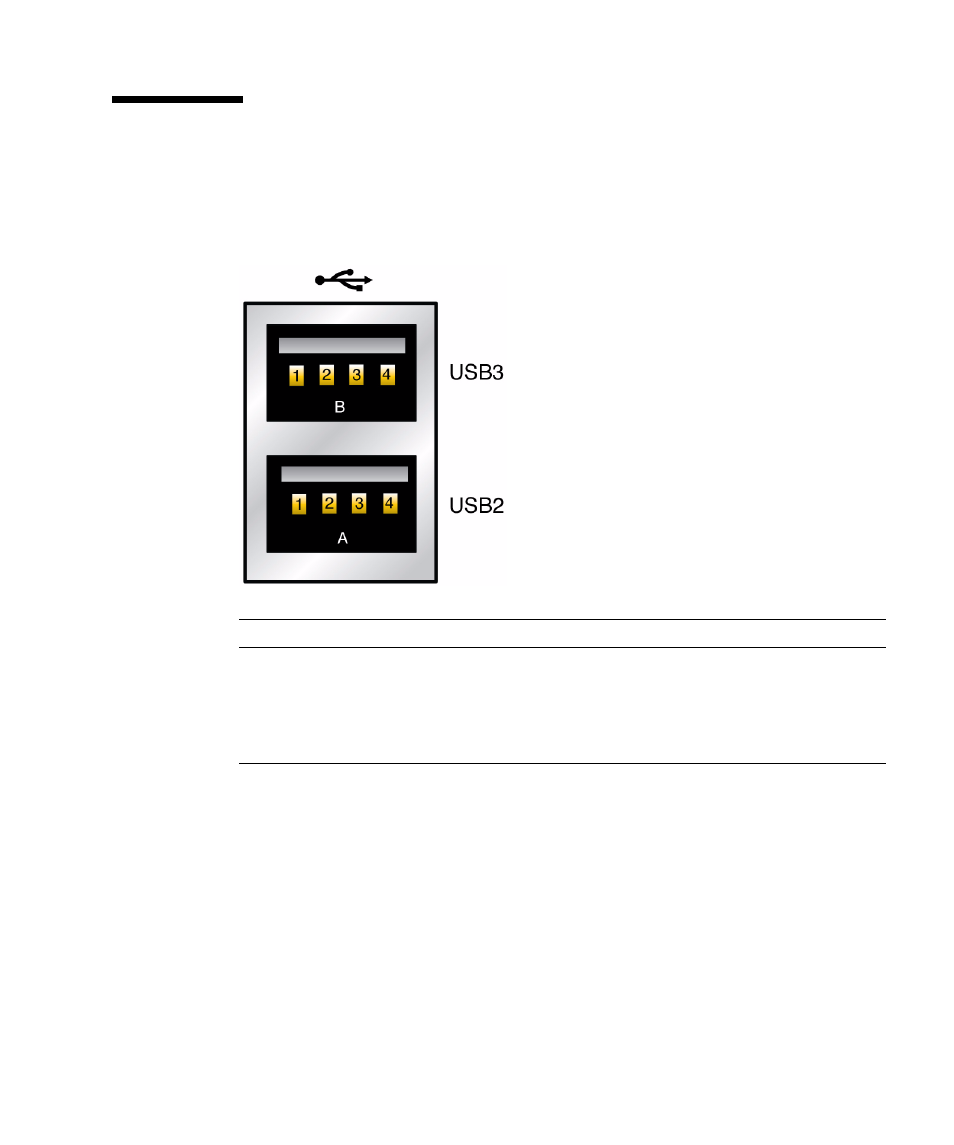

USB Connector Pinouts
Two Universal Serial Bus (USB) ports are located on the motherboard in a
double-stacked layout and can be accessed from the back panel. Two additional USB
ports are located on the front panel.
Pin
Signal Description
Pin
Signal Description
A1
+5 V (fused)
B1
+5 V (fused)
A2
USB0/1-
B2
USB2/3-
A3
USB0/1+
B3
USB2/3+
A4
Ground
B4
Ground
