98 SPARC Enterprise T5440 Server Service Manual • June 2011

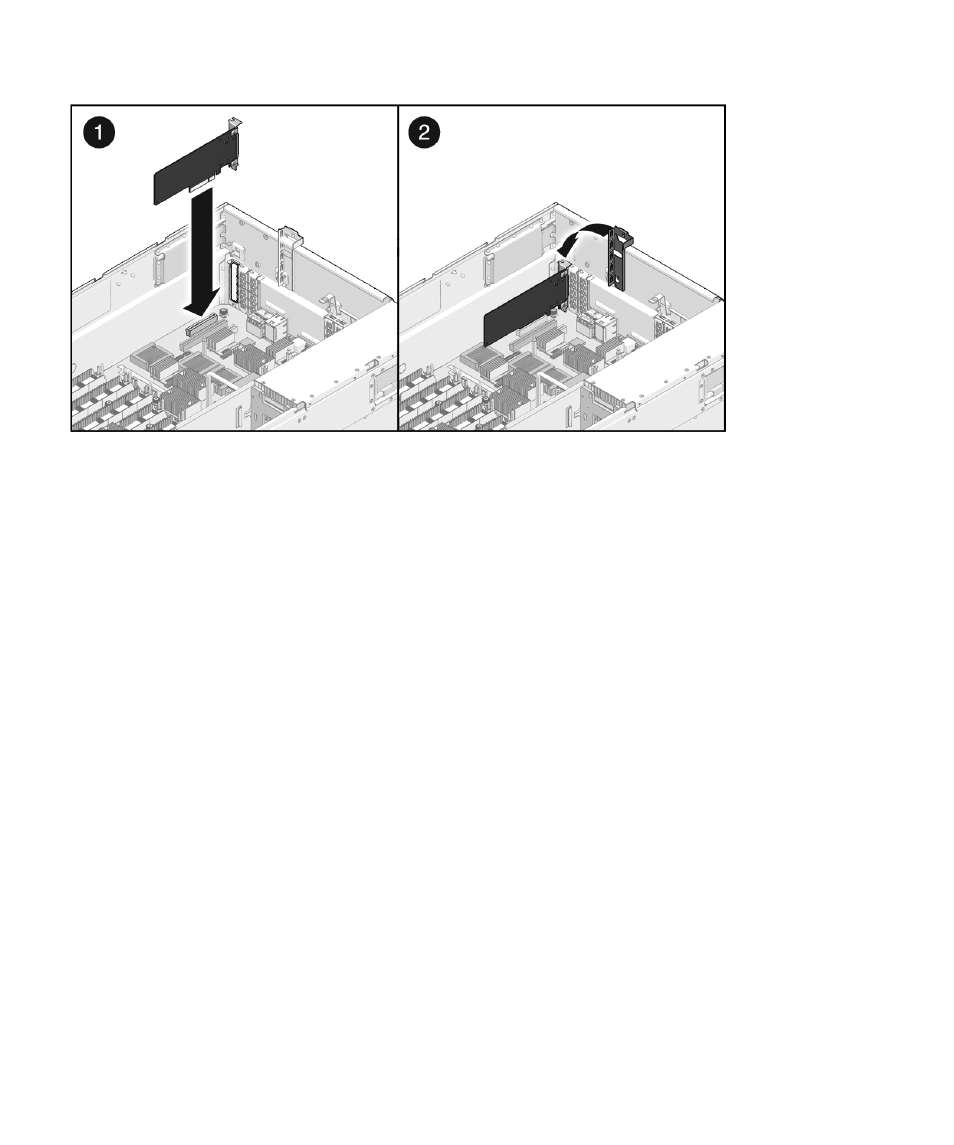

3. Insert the PCIe card into its slot.
4. Close the PCIe card latch.
Next Steps
■ “Install the Top Cover” on page 154
■ “Slide the Server Into the Rack” on page 155
■ “Power On the Server” on page 157
▼ Add a PCIe Card
Before you begin, complete these tasks:
■ Read the section, “Safety Information” on page 63 .
■ Power off the server, using one of the methods described in the section, “Powering
Off the System” on page 67 .
■ “Disconnect Power Cords From the Server” on page 68
■ “Extend the Server to the Maintenance Position” on page 70
■ “Perform Electrostatic Discharge – Antistatic Prevention Measures” on page 73
■ “Remove the Top Cover” on page 73
1. Identify the correct slot for installation.
See “PCIe Device Identifiers” on page 99 and “PCIe Slot Configuration
Guidelines” on page 100 .
