FUJITSU TX300 User Manual
Page 80
80
Options Guide
TX300 S6
Installing a BBU
Expansion cards and BBU
The BBU carrier plate can accommodate up to three BBUs.

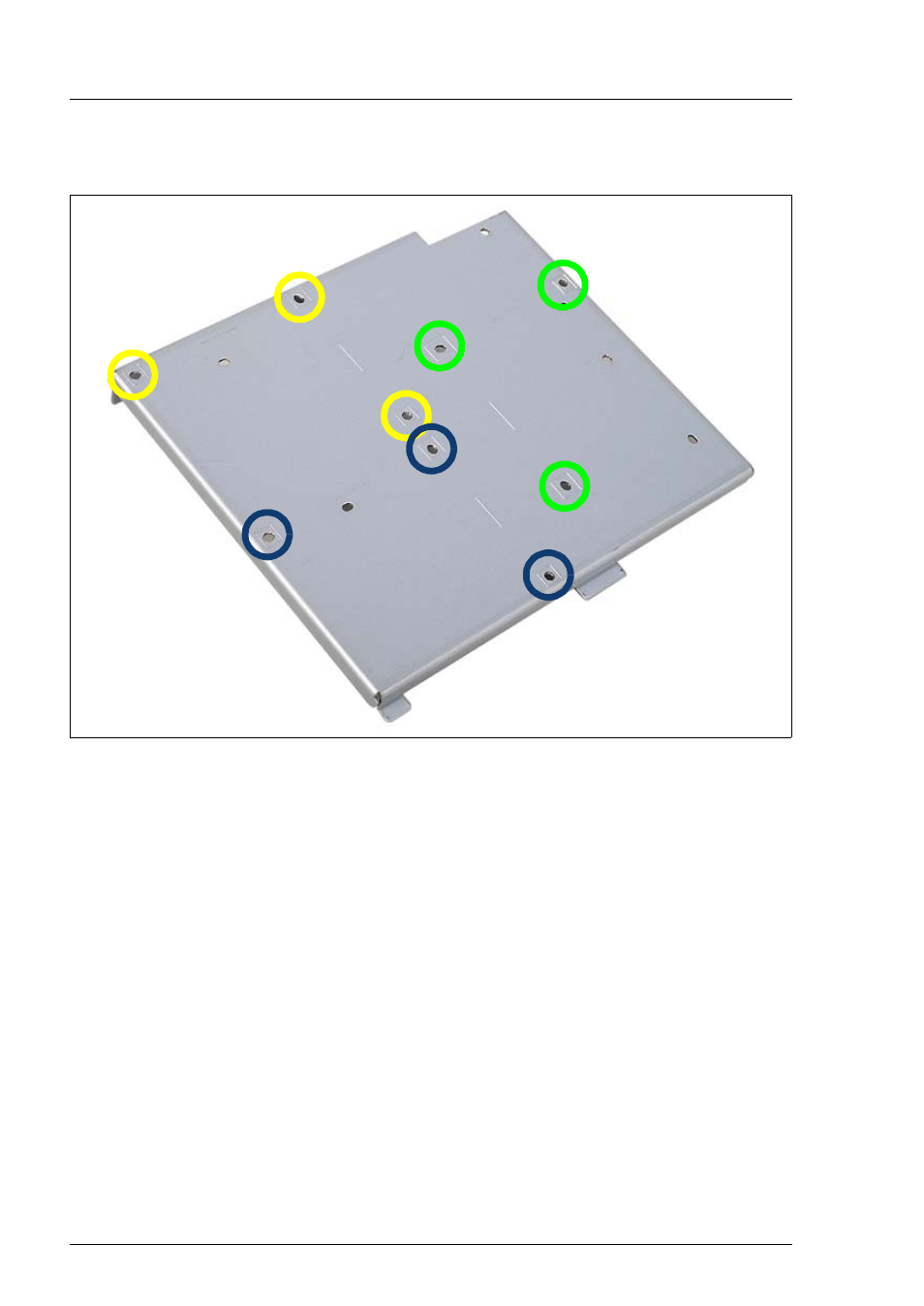

Figure 52: Position of used holes on the BBU carrier plate
First installed BBU: use the blue marked holes to install the BBU.
Second installed BBU: use the yellow marked holes to install the BBU.
Third installed BBU: use the green marked holes to install the BBU.
