Installing a second processor Processors

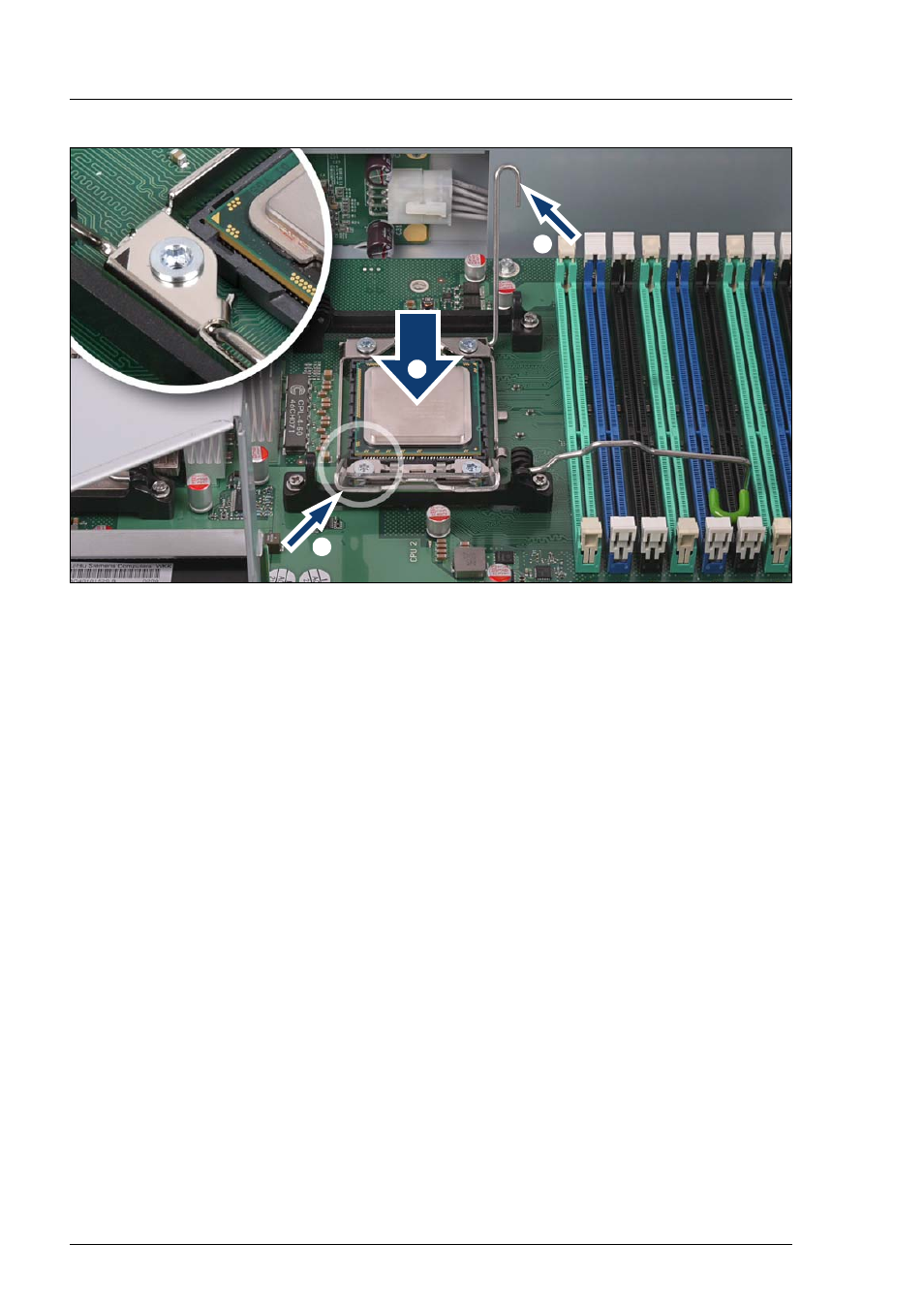

Figure 17: Inserting and locking the processor
Ê Hold the processor between your thumb and index finger and align it at the
socket coding (see circle).
V
CAUTION!
The processor can only be installed in one particular direction.
Ê Place the processor in the socket with great care (1).
V
CAUTION!
Do not bend the spring contacts of the processor socket. Never touch
the underside of the processor. Even light contaminants, such as oil
from human skin, can destroy the processor or impair its functionality.
Ê Close the processor holder (2).
Ê Lock the processor in the socket by returning the spring clip to its original
position (3).
ቢ
ቤ
ባ
